| Ref | Part Number | Description |
|---|
| 1 |
0394995 |

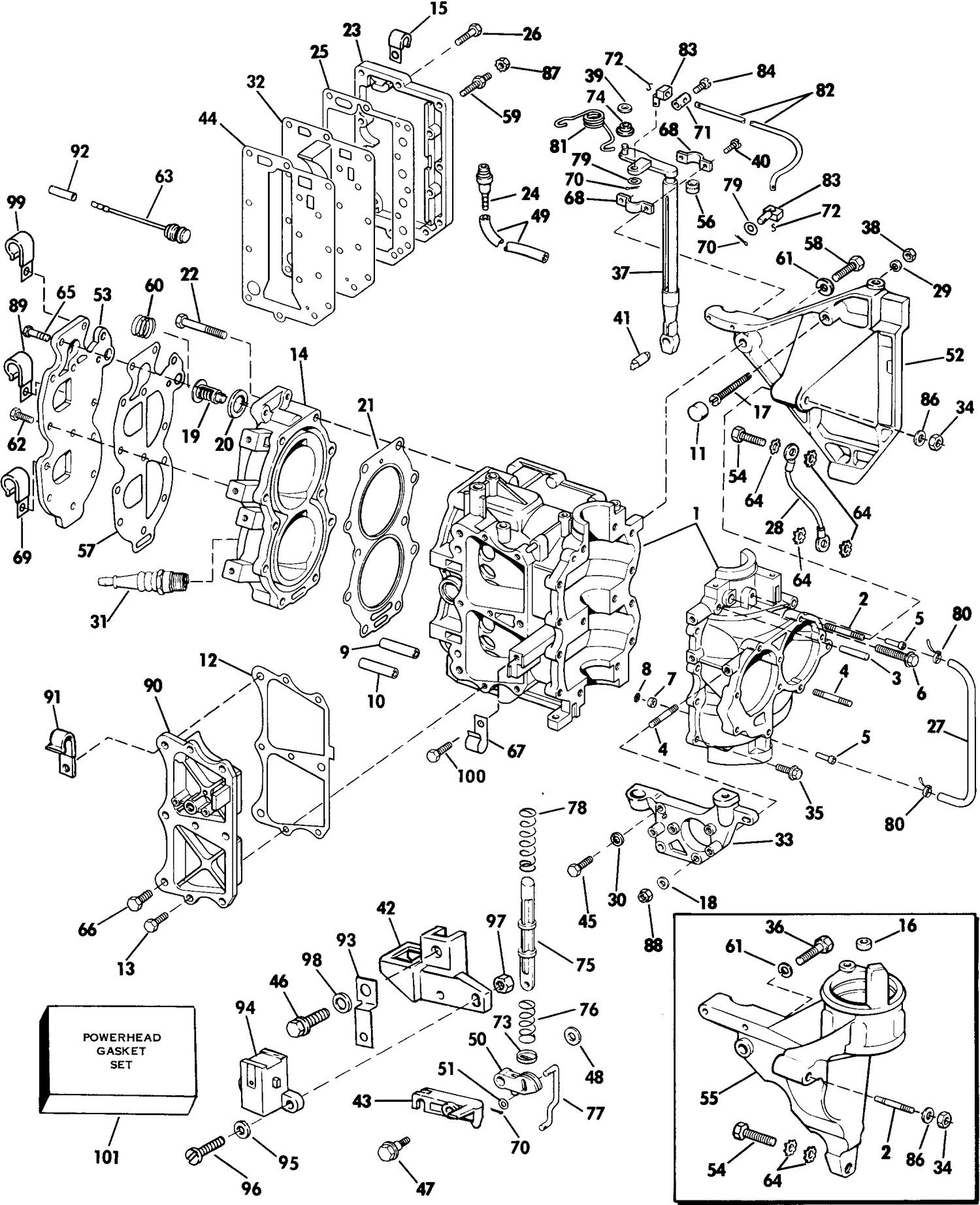

CYLINDER & CRANKCASE ASSEMBLY |
| 11 |
0314416 |
BUMBER, Advance screw |
| 12 |
0319661 |
GASKET, By-pass cover |
| 13 |
0300646 |
VIS, ancrage |
| 14 |
0335635 |
CYL. HEAD ASSY. This part replaces 0327671. |
| 15 |
0310441 |
CLAMP, CPS lead |
| 16 |
0304847 |
JOINT, boulon de démarreur |
| 17 |
0316101 |
SCREW, Advance |
| 18 |
0329241 |
RONDELLE |
| 19 |
5005440 |
THERMOSTAT This part replaces 0378065. |
| 20 |
0329319 |
GASKET, Thermostat |
| 21 |
0329419 |
GASKET, Cylinder head |
| 22 |
0305027 |
SCREW |
| 23 |
0391465 |
EXHAUST COVER, Outer |
| 25 |
0324323 |
GASKET, Exh. cover, outer to inner |
| 26 |
0306418 |
VIS, ancrage |
| 27 |
HOSE, |
Mfld. to crankcase, 17" |
| 28 |
0376349 |
FIL, masse |
| 31 |
0386941 |
SPARK PLUB,Champion L77J4 |
| 31 |
0502180 |
SPARK PLUG, Champion QL77JC4 This part replaces 0387633. |
| 32 |
0326263 |
EXHAUST COVER, Inner |
| 33 |
0325340 |
BRACKET, Starboard |
| 35 |
0314979 |
SCREW, Cylinder to c'case |
| 36 |
0324813 |
ECREW,Exhaust cover,1-3/8"long |
| 37 |
0386464 |
CONTROL LEVER & PIN |
| 39 |
0305831 |
SHIM |
| 40 |
0330975 |
SCREW, Bearing clamp |
| 41 |
0329197 |
PIN, Control lever |
| 42 |
0325326 |
BRACKET, Safety sw. & cable |
| 43 |
0325589 |
LEVER, Start lockout |
| 44 |
0326264 |
GASKET, Exh. cover inner to c'case |
| 45 |
0303398 |
VIS, support |
| 46 |
0318468 |
SCRAEW, Latch to handle |
| 47 |
0327443 |
SCREW, Starter lockout |
| 49 |
0328387 |
HOSE, Overboard indicator |
| 50 |
0325587 |
LEVER, Lockout |
| 52 |
0351035 |
BRACKET, Port This part replaces 0320374. |
| 53 |
0327673 |
COVER, Cylinder head |
| 55 |
0333929 |
SUPPORT, bâbord This part replaces 0331210. |
| 56 |
0320524 |
BEARING, Control lever |
| 57 |
0327674 |
GASKEET, Water cover |
| 58 |
0303398 |
VIS, support |
| 59 |
0311344 |
BOLT, Double end |
| 60 |
0328051 |
SPRING, Pressure release |
| 62 |
0300646 |
VIS, ancrage |
| 63 |
0386686 |
SWITCH TEMP |
| 66 |
0306450 |
SCREW |
| 67 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309846. |
| 68 |
0320523 |
BEARING CLAMP |
| 71 |
0304222 |
COLLAR |
| 72 |
0307565 |
PIN |
| 73 |
0325586 |
RETAINER, Spring |
| 74 |
0307841 |
BUSHING, Control lever |
| 75 |
0325332 |
PLUNGER |
| 76 |
0325584 |
SPRING, Neutral detent |
| 77 |
0335326 |
LINK, Actuator cam This part replaces 0325336. |
| 78 |
0325583 |
SPRING, Shift detent |
| 79 |
0551953 |
WASHER |
| 80 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 81 |
0321721 |
SPRING |
| 82 |
0320156 |
ROD, Throttle control |
| 83 |
0320786 |
PIVOT PIN |
| 84 |
0304221 |
SCEW,Collar to cable |
| 86 |
0329241 |
RONDELLE |
| 89 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309322. |
| 90 |
0330549 |
BY-PASS COVER ASSY. |
| 90 |
0396018 |
BY-PASS COVER |
| 91 |
0310947 |
CLAMP |
| 93 |
0325600 |
TRESSE DE MASSE, interrupteur de sécurité |
| 94 |
0386056 |
INTERRUPTEUR DE DÉMARRAGE AU POINT MORT |
| 100 |
0304512 |
SCREW |
