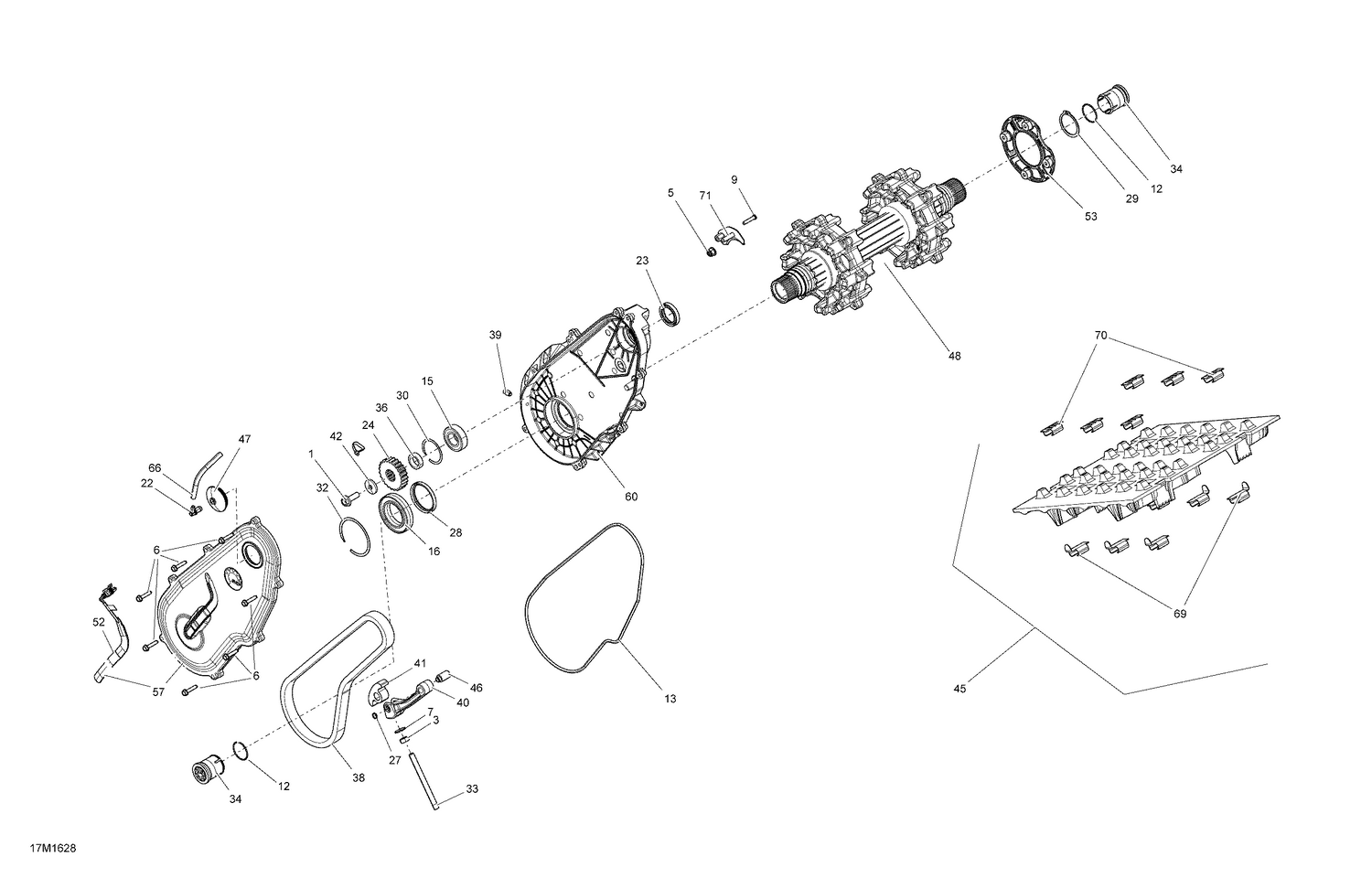

05- Drive - 800R ETEC
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 1 | Not | Available As Spare Part - Hex. Flange Screw M10 X 55 |
| 3 | 232006414 | Hex. Nut M10 X 1.5 |
| 5 | 233281414 | Hex. Flange Elastic Nut M8 |
| 6 | 210263050 | Hex. Flange Screw M6 X 30 |
| 7 | 250200100 | Bonded Washer |
| 9 | 250300031 | Clinch Stud M6 X 30 |
| 12 | 293300122 | O-Ring |
| 13 | 293300130 | Tight Seal |
| 15 | 293350115 | Ball Bearing This part replaces 293350055. |
| 16 | 293350059 | Ball Bearing |
| 22 | 414580700 | Male Connector |
| 23 | 293200158 | Oil Seal This part replaces 415049300. |
| 27 | 504152282 | Circlip |
| 28 | 293200159 | Oil Seal This part replaces 504152571. |
| 29 | 504152572 | Circlip |
| 30 | 504152576 | Circlip |
| 32 | 504152582 | Circlip |
| 33 | 504152602 | Adjustment Screw |
| 34 | 504152619 | Magnetic Cap |
| 36 | 504152628 | Shim |
| 38 | 504152579 | Drive Chain, 102 Links |
| 39 | 504152854 | Magnetic Plug 1/8 - 27 NPTF |
| 40 | 504153429 | Tensioner chain This part replaces 504152685. |
| 41 | 504152739 | Slider Chain |
| 42 | 504152784 | Spring Washer M10 |
| 46 | 504152841 | Tensioner Axle |
| 47 | 504152860 | Cap |
| 48 | 504154054 | Drive Axle Ass'y This part replaces 504153083. |
| 52 | 504152896 | Rotation Sensor |
| 53 | 504153886 | Retaining Ring This part replaces 504152949. |
| 54 | 861805538 | Kit Sprocket This part replaces 504152593. |
| 57 | 504153410 | Chaincase Cover Ass'y |
| 60 | 504153405 | Chaincase |
| 69 | 415129528 | Track Guide |
| 70 | 504152651 | Cleat This part replaces 415129529. |
