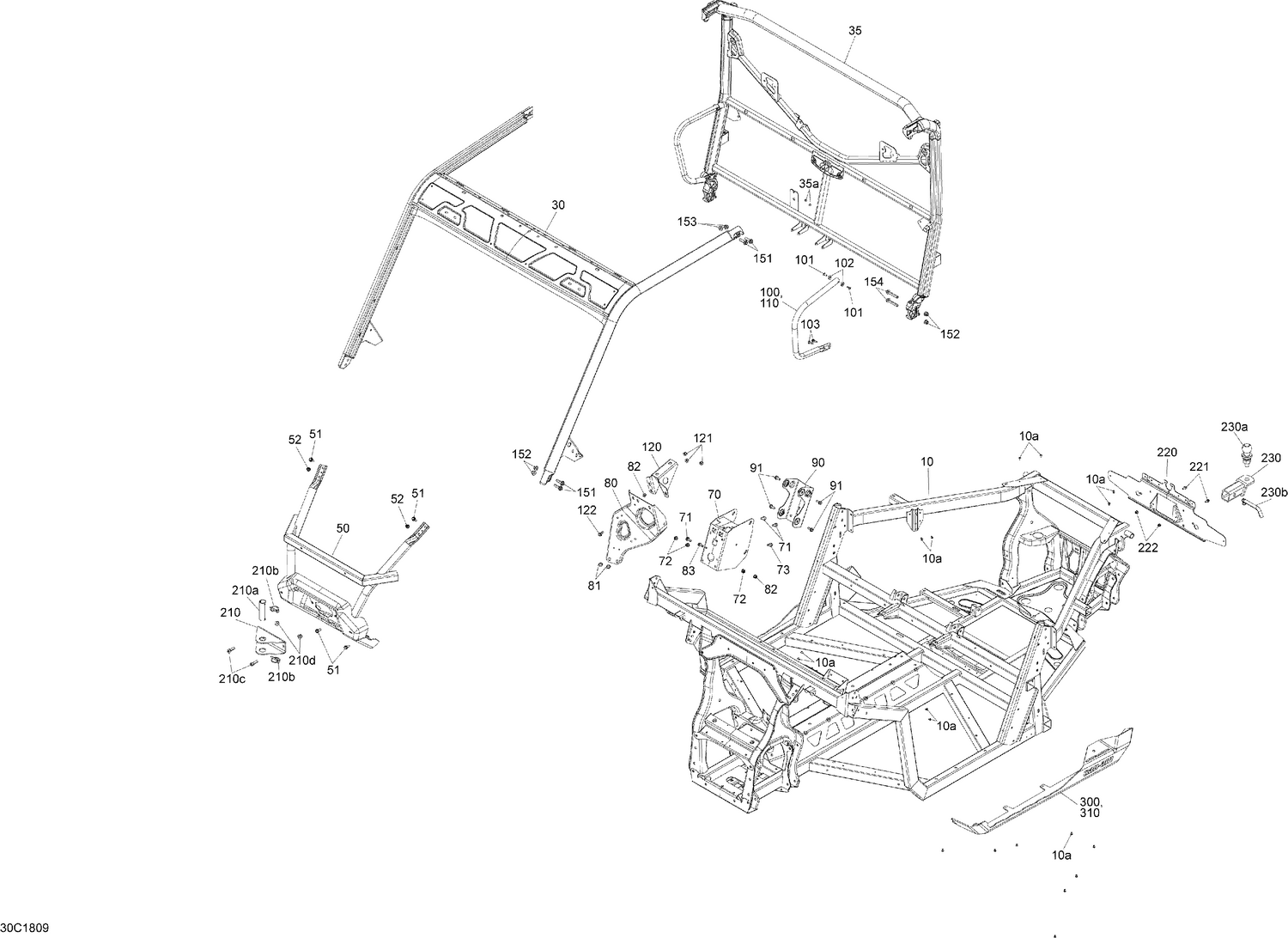

09- Frame Traxter T1B
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 390402200 | Pop Rivet 3/16" |
| 30 | 715005675 | Front Cage Profile Assembly This part replaces 715005031. |
| 35 | 715003569 | Black, Rear Cage Kit |
| 35a | 390402200 | Pop Rivet 3/16" |
| 50 | 705207588 | Deep Black, Front Bumper This part replaces 705203999. |
| 51 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 52 | 233281414 | Hex. Flange Elastic Nut M8 |
| 70 | 705206316 | Plate |
| 71 | 207682044 | Hex. Flange Screw M8 X 20 |
| 72 | 233281414 | Hex. Flange Elastic Nut M8 |
| 73 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 80 | 705206185 | DPS Support |
| 81 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 82 | 233281414 | Hex. Flange Elastic Nut M8 |
| 83 | 207682044 | Hex. Flange Screw M8 X 20 |
| 90 | 705209190 | Steering Column Support This part replaces 705204429. |
| 91 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 101 | 250000789 | Torx Truss M6X14 |
| 102 | 705202223 | Offset Washer |
| 103 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 110 | 705204592 | Deep Black, RH Protector Tube |
| 120 | 705205171 | Shifting Module Support |
| 121 | 233281414 | Hex. Flange Elastic Nut M8 |
| 122 | 207682044 | Hex. Flange Screw M8 X 20 |
| 210a | 605456511 | Pin |
| 210b | 605456518 | Pin |
| 210c | 205003044 | Socket Screw M10 x 30 |
| 210d | 233201414 | Hex. Flange Elastic Nut M10 |
| 220 | 705014656 | Licence Plate Support This part replaces 705011460. |
| 221 | 207661644 | Hex. Flange Screw M6 X 16 |
| 222 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 230a | 705202391 | BALL 50MM - Call your local BRP dealership |
