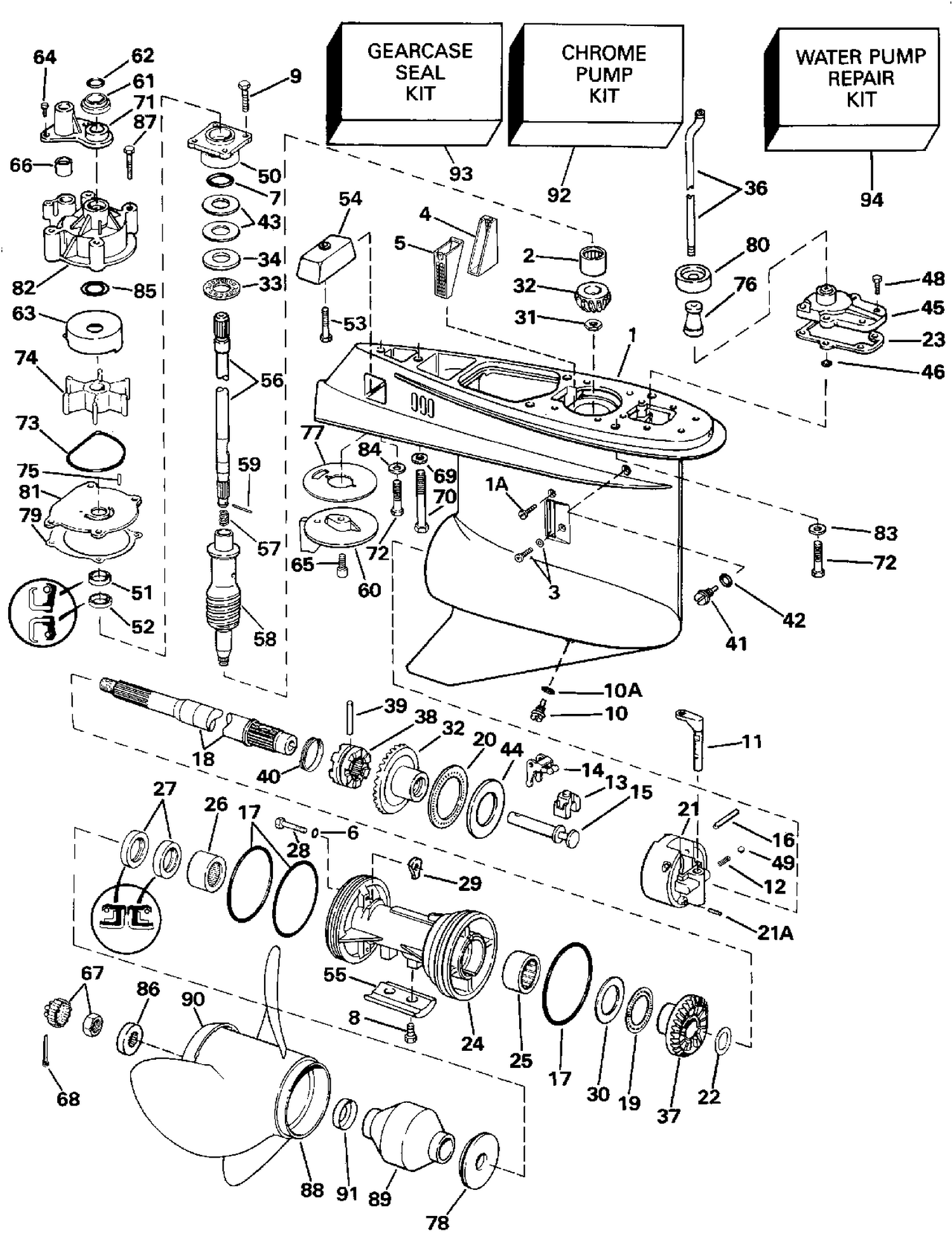

| Ref | Part Number | Description |
|---|
| 1 |
0435822 |
GEARCASE & BEARING ASSY. This part replaces 0431696. |
| 2 |
0391471 |
BEARING, Pinion |
| 4 |
0333234 |
SCREEN, Water intake, port |
| 5 |
0333233 |
SCREEN, Water intake, stbd |
| 11 |
0326807 |
DETENT, Shift |
| 15 |
0326823 |
SHAFT |
| 21 |
0431735 |
HOUSING & BEARING ASSY |
| 24 |
5000361 |
Hsg Ay This part replaces 0434402. |
| 26 |
0434467 |
NEEDLE BEARING ASSY. |
| 28 |
0913432 |
SCREW |
| 29 |
0332091 |
RETAINER, Bearing housing |
| 32 |
0435120 |
GEAR & PINION ASSY. This part replaces 0434065. |
| 36 |
0330028 |
SHIFT ROD |
| 36 |
0330029 |
SHIFT ROD |
| 37 |
0336569 |
GEAR, Reverse |
| 44 |
0326733 |
THRUST WASHER |
| 53 |
0332746 |
SCREW, Anode |
| 54 |
0397768 |
ANODE |
| 56 |
5000617 |
Kit This part replaces 0335723. |
| 56 |
5000625 |
D'Shaft 25" V/8 This part replaces 0335680. |
| 57 |
0335684 |
DRIVESHAFT SPRING |
| 58 |
0335679 |
DRIVESHAFT, Lower |
| 60 |
0338943 |
TRIM TAB, Gearcase This part replaces 0331410. |
| 63 |
0435027 |
CUP & PLATE This part replaces 0330379. |
| 63 |
0435526 |
CHROME CUP & PLATE KIT This part replaces 0330384. |
| 65 |
0313715 |
SCREW, Cap, hex hd, 7/16-14 x 1 |
| 69 |
0326784 |
WASHER, Screw |
| 70 |
0331998 |
SCREW, Gearcase to housing |
| 72 |
0331999 |
SCREW, Gearcase housing |
| 73 |
0331353 |
Seal, Impeller Housing Plate. |
| 81 |
0435027 |
CUP & PLATE This part replaces 0330380. |
| 81 |
0435526 |
CHROME CUP & PLATE KIT This part replaces 0330383. |
| 82 |
0435485 |
IMPELLER HOUSING ASSY. This part replaces 0395040. |
| 84 |
0326785 |
WASHER |
| 85 |
0332000 |
SEAL RING |
| 87 |
0335221 |
SCREW, Throttle body to reed plate This part replaces 0328715. |
| 88 |
0174821 |
PROP, 4 blade 13 1/4 X 29 |
| 88 |
0174926 |
PROPELLER, 15 X 15 SST |
| 88 |
0387995 |
PROP, 14-1/2 x 24 sstr |
| 88 |
0387996 |
PROP, 14-1/2 x 26 sstr |
| 88 |
0389019 |
PROP, 14-1/2 x 23 SST |
| 88 |
0389923 |
PROP, 14-1/2 x 21 SST |
| 88 |
0389924 |
PROP, 14-1/2 x 19 SST |
| 88 |
0390725 |
PROP, 14 x 25 SST |
| 88 |
0391201 |
PROP, 14-1/2 x 19 |
| 88 |
0391202 |
PROP, 14-1/2 x 21 |
| 88 |
0391290 |
PROP, 15 x 17 SST |
| 88 |
0391863 |
PROPELLER, 14 1/2 X 27 OMC SRX |
| 88 |
0391864 |
PROPELLER, 14 1/2 x 29 OMC SRX |
| 88 |
0394752 |
PROPELLER, 14 1/2 x 18 OMC Raker |
| 88 |
0394753 |
PROPELLER, 14 1/2 x 20 OMC Raker |
| 88 |
0394754 |
PROPELLER, 14 1/2 x 22 OMC Raker |
| 88 |
0394755 |
PROPELLER, 13 1/2 X 24 OMC RAKER |
| 88 |
0394756 |
PROPELLER, 14 1/2 x 26 OMC Raker |
| 88 |
0394757 |
PROPELLER, 14 1/2 x 28 OMC Raker |
| 88 |
0431717 |
PROP, 4 blade, 13 1/2 x 23 |
| 88 |
0431718 |
PROP, 4 blade, 13 1/4 x 25 |
| 88 |
0431719 |
PROP, 4 blade, 13 1/4 x 27 |
| 88 |
0765187 |
PROPELLER, WDEX Models This part replaces 0391200. |
| 92 |
0435526 |
CHROME CUP & PLATE KIT This part replaces 0395059. |
| 93 |
5006373 |
GEARCASE SEAL KIT This part replaces 0434516. |
| 0433634 |
5000634 |
Driveshaft Ay This part replaces 0433634. |
| 0434012 |
5000630 |
Driveshaft Ay This part replaces 0434012. |
| 0434405 |
0434405 |
GEARCASE ASSY., Complete |
| 0434406 |
0434406 |
GEARCASE ASSY., Complete |
