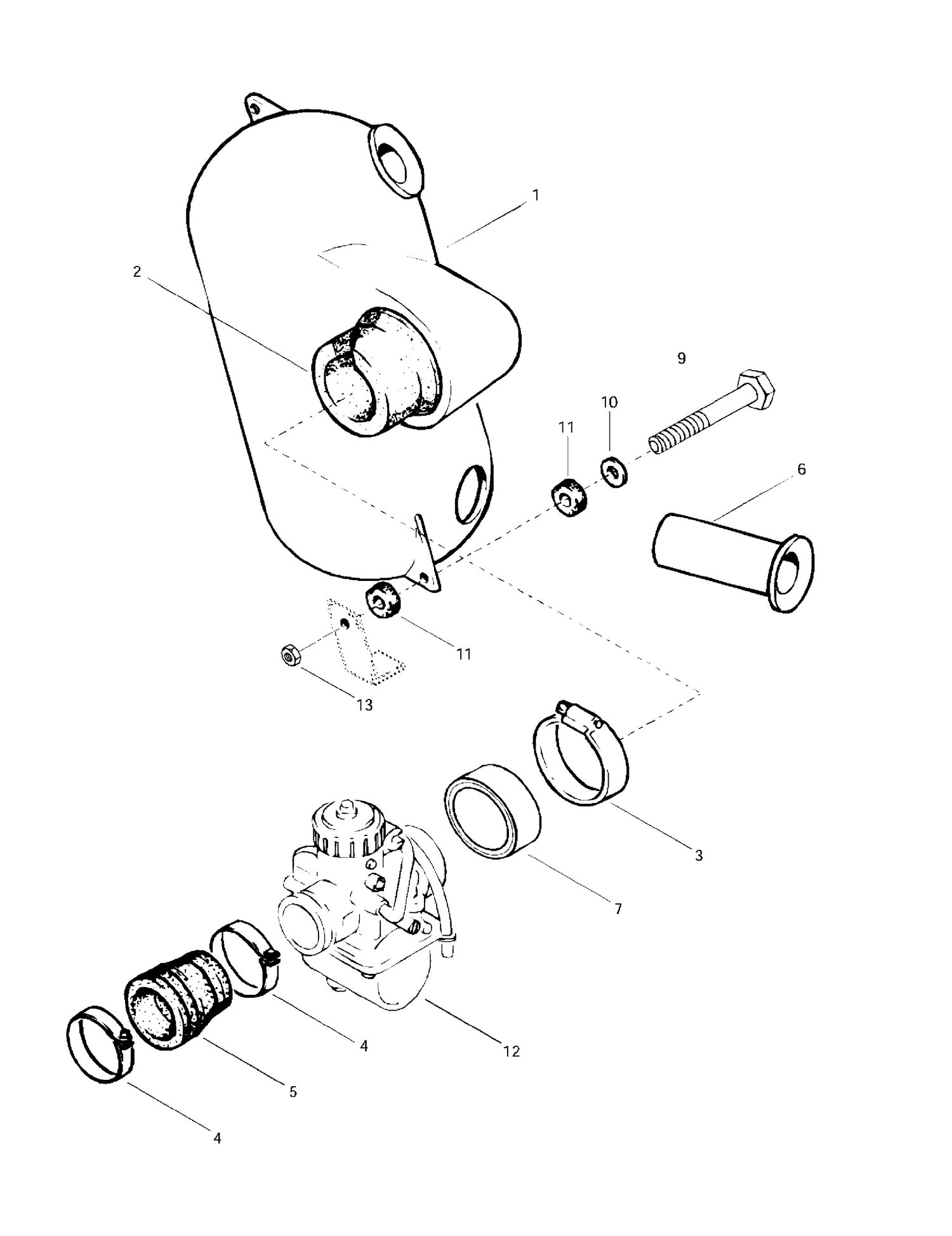

02- Air Silencer
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | M5141773 | Air Intake |
| 2 | 570136300 | Carburetor Adaptor |
| 3 | 27018 | Clamp - Call your local BRP dealership This part replaces M27018. |
| 4 | M951510 | Clamp |
| 5 | 570038900 | Rubber Flange |
| 6 | 5444445 | INLET TUBE - Call your local BRP dealership This part replaces M543022. |
| 7 | M548613 | Air Intake Adaptor |
| 9 | 207084044 | Hex. Screw M8 X 40 This part replaces 222084065. |
| 10 | 234082410 | Flat Washer 8 mm This part replaces M20010. |
| 11 | M542109 | Rubber Sleeve |
| 12 | 403133500 | Carburetor VM-32-269 |
