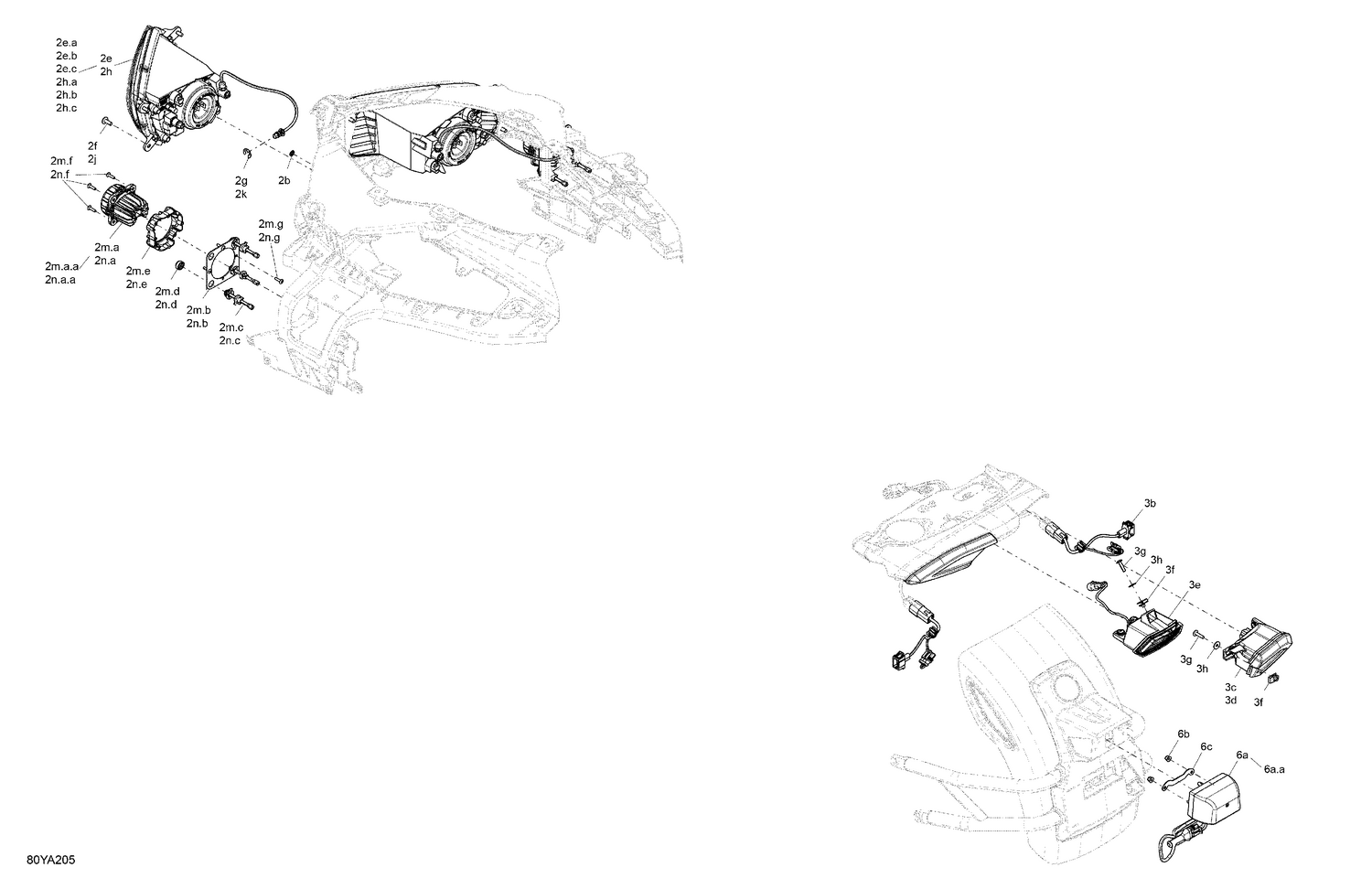

08- Electric - Vehicle Lighting - Japan
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 2b | 250100034 | Push Nut |
| 2f | 250000721 | Torx Truss Screw M6 X 16 |
| 2g | 293370013 | E-Circlip |
| 2j | 250000721 | Torx Truss Screw M6 X 16 |
| 2k | 293370013 | E-Circlip |
| 3b | 710006439 | Tail-Stop-Flasher Lights Adapter |
| 3c | 710004396 | Tail Light LH |
| 3d | 710004397 | Tail Light RH |
| 3e | 710007005 | Back-Up Light |
| 3f | 250000958 | Panel Nut M5 X 0.8 |
| 3g | 250000715 | Torx Truss Screw M5 X 20 |
| 3h | 234052670 | Stainless Steel Flat Washer M5 |
| 6b | 233251494 | Elastic Flange Nut M5 |
