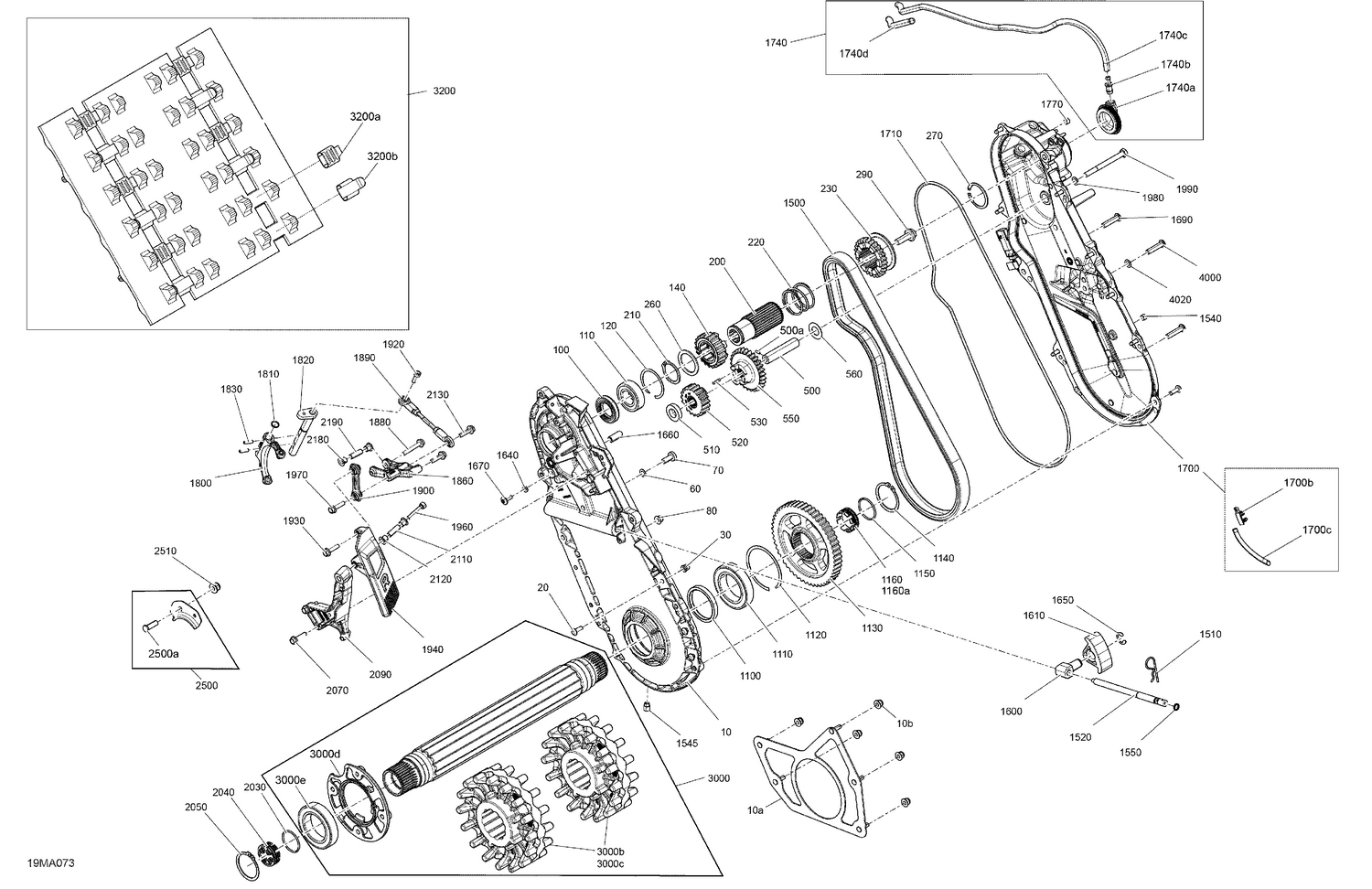

| Ref | Part Number | Description |
|---|
| 10a |
861805514 |
Kit Plate Ass'y |
| 10b |
233261434 |
Flange Elastic Nut M6 |
| 20 |
293150148 |
Rivet Magna-Grip 6,4 X 50,8 |
| 30 |
293150149 |
Collar Huck Magna-Grip 6.4 |
| 60 |
504082900 |
Washer |
| 70 |
250000740 |
Torx Screw M8 X 20, Scotch Grip |
| 80 |
233261434 |
Flange Elastic Nut M6 |
| 100 |
293200168 |
Oil Seal |
| 110 |
293350115 |
Ball Bearing |
| 120 |
504152576 |
Circlip |
| 140 |
504154082 |
Sprocket 21 Teeth Ass'y This part replaces 504153726. |
| 200 |
504153500 |
Connecting Shaft Ass'y |
| 210 |
293370183 |
External Retaining Ring |
| 220 |
504153179 |
Spring Release |
| 230 |
504153502 |
Sliding Gear 27 Teeth Machined |
| 260 |
504152689 |
Washer |
| 270 |
293370055 |
Circlip |
| 290 |
207503046 |
Hex. Flange Screw M10 X 30, Scotch Grip |
| 500a |
250400010 |
Rolled Pin M3 X 10 |
| 510 |
504078700 |
Ring |
| 520 |
504154086 |
Sprocket 19 Teeth Ass'y |
| 530 |
570048600 |
Alignement Rod |
| 550 |
504154087 |
Gear Straight 29 Teeth Ass'y |
| 560 |
504077300 |
Spacer |
| 1100 |
293200159 |
Oil Seal |
| 1110 |
293350059 |
Ball Bearing |
| 1120 |
504152582 |
Circlip |
| 1130 |
504153997 |
Sprocket 51 Teeths |
| 1140 |
504152572 |
Circlip |
| 1150 |
293300201 |
O-Ring |
| 1160a |
504154043 |
Cap |
| 1500 |
504153266 |
Drive Chain, 110 Links |
| 1510 |
414575600 |
Hair Pin |
| 1520 |
504153760 |
Adjustment Screw |
| 1540 |
250500013 |
Hex. Countersunk Drain Plug This part replaces 250500012. |
| 1545 |
504153704 |
Magnetic Plug |
| 1550 |
293300202 |
O-Ring |
| 1600 |
504153559 |
Tensioner |
| 1610 |
504153312 |
Slider Chain |
| 1640 |
250200185 |
Copper Washer |
| 1650 |
293370105 |
Circlip |
| 1660 |
504153531 |
Slide Chain |
| 1670 |
250000717 |
Torx Head Screw M6 X 16 |
| 1690 |
250000764 |
Hex. Button Head Screw M8 X 1.25 X 35 |
| 1700b |
515178223 |
Clip Connector |
| 1700c |
415130141 |
Braided Sleeve |
| 1710 |
293300214 |
O Ring |
| 1740a |
504152930 |
Cap |
| 1740b |
293710035 |
Straight Fitting |
| 1740c |
219704410 |
Polyurethane Hose 10000Mm Long |
| 1740d |
503195447 |
Protector Tube |
| 1770 |
250500013 |
Hex. Countersunk Drain Plug This part replaces 250500012. |
| 1800 |
504154097 |
Fork Ass'y |
| 1810 |
293300202 |
O-Ring |
| 1820 |
504154096 |
Reverse Axle |
| 1830 |
250400045 |
Spring Pin M5 X 16 |
| 1860 |
504153532 |
Machined Lever |
| 1880 |
207564044 |
Hex. Flange Screw M6 X 40, Scotch Grip |
| 1890 |
504153657 |
Rod Actuating Adjustable Ass'y |
| 1900 |
504153944 |
Rod Actuating Ass'y |
| 1920 |
205562044 |
Socket Head Screw M6 X 20, Scotch Grip |
| 1930 |
207562544 |
Hex. Flange Screw M6 X 25 |
| 1940 |
504153524 |
Reverse Lever |
| 1960 |
205564044 |
Socket Head Screw M6 X 40, S.GRIP |
| 1970 |
207562544 |
Hex. Flange Screw M6 X 25 |
| 1980 |
504082900 |
Washer |
| 1990 |
207089044 |
Hex. Screw M8 X 90 |
| 2030 |
293300201 |
O-Ring |
| 2040 |
504154043 |
Cap |
| 2050 |
504152572 |
Circlip |
| 2070 |
207562544 |
Hex. Flange Screw M6 X 25 |
| 2090 |
504153683 |
Handle Support |
| 2110 |
504153648 |
Spacer |
| 2120 |
504153735 |
Bushing |
| 2130 |
207562544 |
Hex. Flange Screw M6 X 25 |
| 2180 |
504153735 |
Bushing |
| 2190 |
504153648 |
Spacer |
| 2500a |
250300028 |
Clinch Stud, M8 X 25 |
| 2510 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 3000b |
504153880 |
Sprocket, 8 Teeth |
| 3000c |
504153881 |
Sprocket, 8 Teeth |
| 3000d |
504153886 |
Retaining Ring |
| 3000e |
293350059 |
Ball Bearing |
| 3200a |
415129528 |
Track Guide |
| 3200b |
504152651 |
Cleat |
| 4000 |
250000764 |
Hex. Button Head Screw M8 X 1.25 X 35 |
