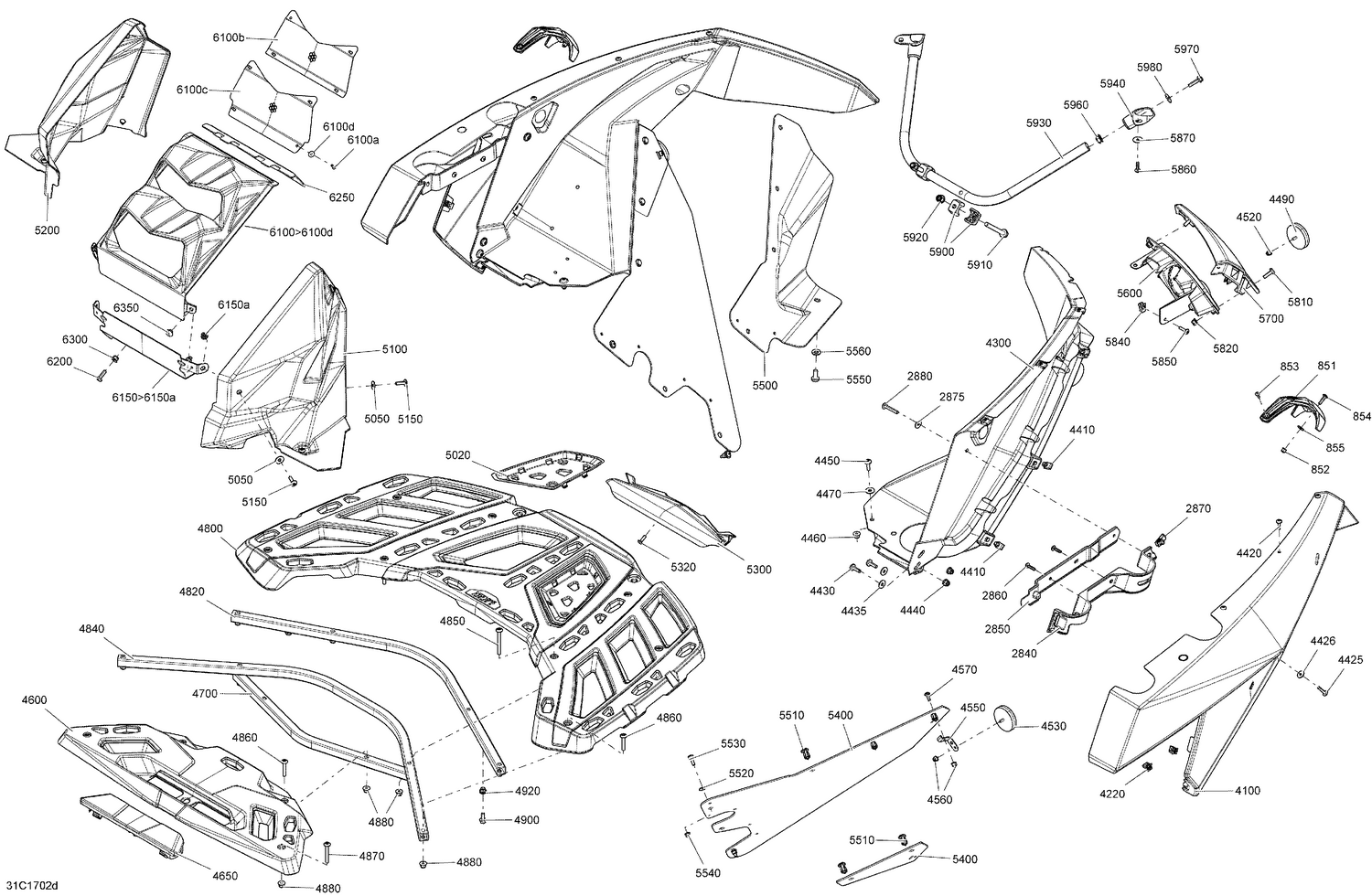

| Ref | Part Number | Description |
|---|
| 2840 |
705007918 |
LH REAR FENDER SUPPORT - Call your local BRP dealership |
| 2840 |
705007919 |
RH REAR FENDER SUPPORT - Call your local BRP dealership |
| 2850 |
705007917 |
Support Plate |
| 2860 |
250000760 |
Torx Screw Truss Head K50X20 T20 |
| 2870 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
| 2875 |
234062670 |
Stainless Steel Flat Washer |
| 2880 |
250000646 |
Black, Torx Screw M6 X 35 |
| 4100 |
705008949 |
FENDER REAR L B-365 - Call your local BRP dealership |
| 4100 |
705008951 |
Quarry Gray RH Rear Fender |
| 4100 |
705011819 |
Timeless Black, LH Rear Fender This part replaces 705009727. |
| 4100 |
705011820 |
Timeless Black, RH Rear Fender This part replaces 705009728. |
| 4220 |
517302785 |
Edge Clip |
| 4300 |
705009549 |
RH Inner Fender |
| 4410 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 4420 |
250000724 |
Torx Screw M5 X 20 |
| 4425 |
250000762 |
Torx Screw M5 X 25 |
| 4426 |
250200025 |
Washer M5 |
| 4430 |
250000712 |
Torx Screw M6 X 20 |
| 4435 |
234062670 |
Stainless Steel Flat Washer |
| 4440 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 4450 |
250000712 |
Torx Screw M6 X 20 |
| 4460 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 4470 |
234062670 |
Stainless Steel Flat Washer |
| 4800 |
715004179 |
REAR RACK KIT - Call your local BRP dealership |
| 4820 |
705016640 |
Sectional Bent Tube This part replaces 705005469. |
| 4840 |
705016092 |
Bent Sectional Tube This part replaces 705005470. |
| 4860 |
250000646 |
Black, Torx Screw M6 X 35 |
| 4880 |
233261434 |
Flange Elastic Nut M6 |
| 4900 |
207561634 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 4920 |
250100242 |
Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 5020 |
705006713 |
LH Bagage Rack Cover |
| 5020 |
705006714 |
RH BAGAGE RACK COVER - Call your local BRP dealership |
| 5300 |
705005994 |
LOGO Support |
| 5320 |
250000720 |
Torx Screw K50 X 16 |
| 5510 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 5520 |
250200025 |
Washer M5 |
| 5530 |
250000724 |
Torx Screw M5 X 20 |
| 5540 |
233251494 |
Elastic Flange Nut M5 |
| 5700 |
705008952 |
TRIM_HEADLIGHT REAR L B-365 - Call your local BRP dealership |
| 5700 |
705008953 |
TRIM_HEADLIGHT REAR R B-365 - Call your local BRP dealership |
| 5700 |
705009732 |
TIMELESS BLACK RH TRIM - Call your local BRP dealership This part replaces 705009732. |
| 5700 |
705011833 |
Timeless Black, LH Rear Trim This part replaces 705009731. |
| 5810 |
250000712 |
Torx Screw M6 X 20 |
| 5820 |
233261434 |
Flange Elastic Nut M6 |
| 5840 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 5850 |
250000724 |
Torx Screw M5 X 20 |
| 5860 |
250000760 |
Torx Screw Truss Head K50X20 T20 |
| 5870 |
224060201 |
Flat Washer |
| 5900 |
705007044 |
Rear Support Facia Clip |
| 5910 |
207687044 |
Hex. Flange Screw M8 X 70 |
| 5920 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 5930 |
705007299 |
Body Tube |
| 5940 |
705007045 |
LH Rear Facia Support |
| 5940 |
705007046 |
RH Rear Facia Support |
| 5960 |
705007047 |
TUBE CONNECTOR - Call your local BRP dealership |
| 5970 |
207562544 |
Hex. Flange Screw M6 X 25 |
| 5980 |
224061201 |
Flat Washer |
| 6100a |
241140060 |
Screw K40 X 10 |
| 6100b |
705009260 |
Upper Grille |
| 6100c |
705009261 |
LOWER GRILL - Call your local BRP dealership |
| 6100d |
391301000 |
WASHER - Call your local BRP dealership |
| 6150a |
250100242 |
Threaded Insert M6 X 1.0 This part replaces 293450274. |
