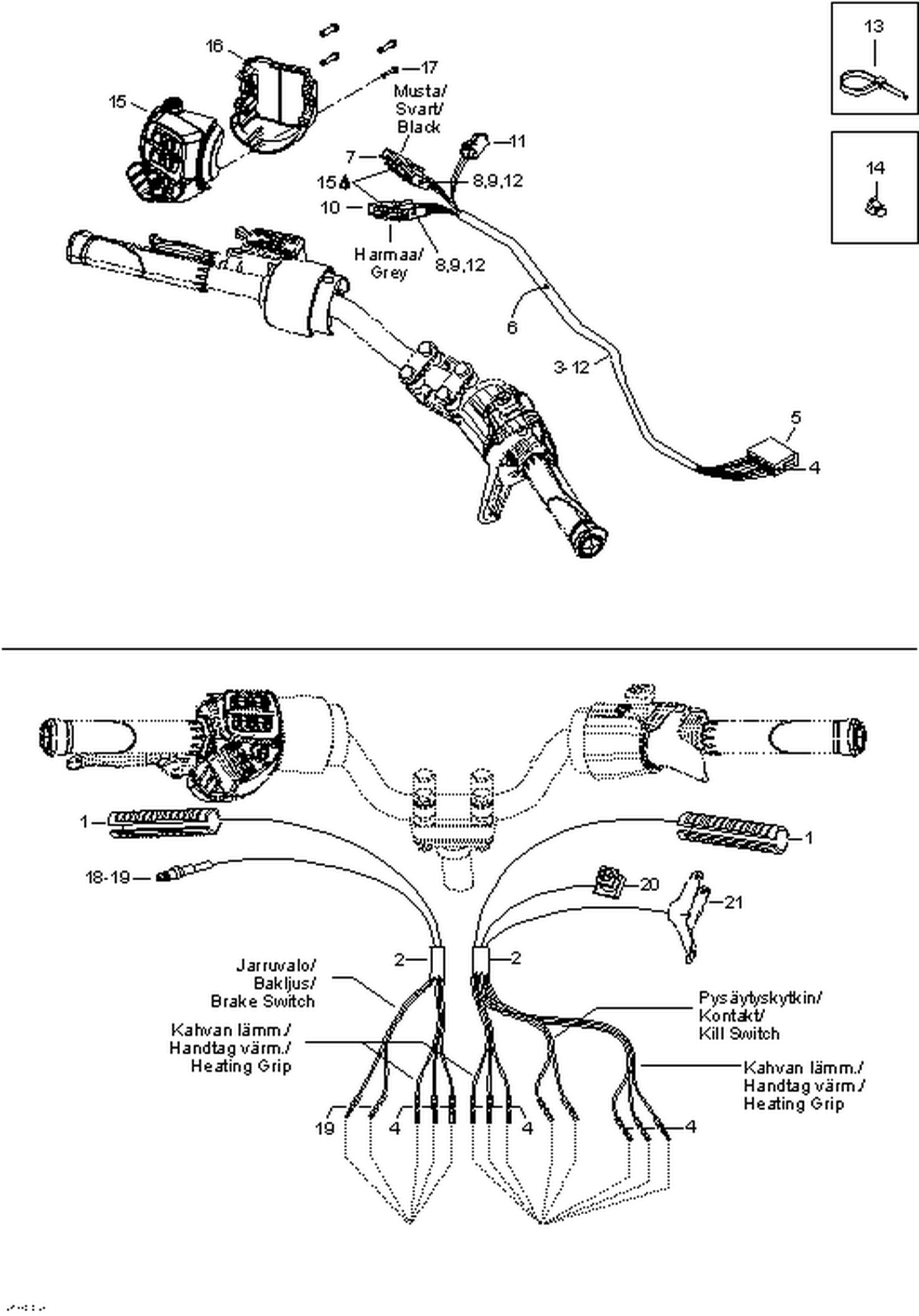

| Ref | Part Number | Description |
|---|
| 1 |
515175664 |
Heater grip element |
| 2 |
39023 |
Plastic Tubing d=6, musta - Call your local BRP dealership |
| 4 |
605642628 |
CONNECTOR - Call your local BRP dealership This part replaces 42603. |
| 5 |
42621 |
Male terminal housing |
| 6 |
39015 |
Tubing |
| 7 |
515175807 |
FEMALE TERMINAL HOUSING 8 CIRCUITS BLACK - Call your local BRP dealership |
| 8 |
515175808 |
FEMALE TERMINAL - Call your local BRP dealership |
| 9 |
515175809 |
FEMELLE LOCK, 8 CIRCUITS - Call your local BRP dealership |
| 10 |
515175810 |
FEMALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership |
| 11 |
710000268 |
Male terminal housing |
| 12 |
515175941 |
Female terminal |
| 13 |
414115200 |
Tie-Rap 180 mm This part replaces 27026. |
| 14 |
414227300 |
Clip |
| 15 |
515176015 |
LH SWITCH HOUSING - Call your local BRP dealership |
| 16 |
515175926 |
Peitelevy, jarrukahvan kotelo |
| 17 |
40903 |
Screw, Plastofast 3.5 x 25 |
| 19 |
605642628 |
CONNECTOR - Call your local BRP dealership This part replaces 42603. |
| 20 |
515175410 |
Kill switch |
