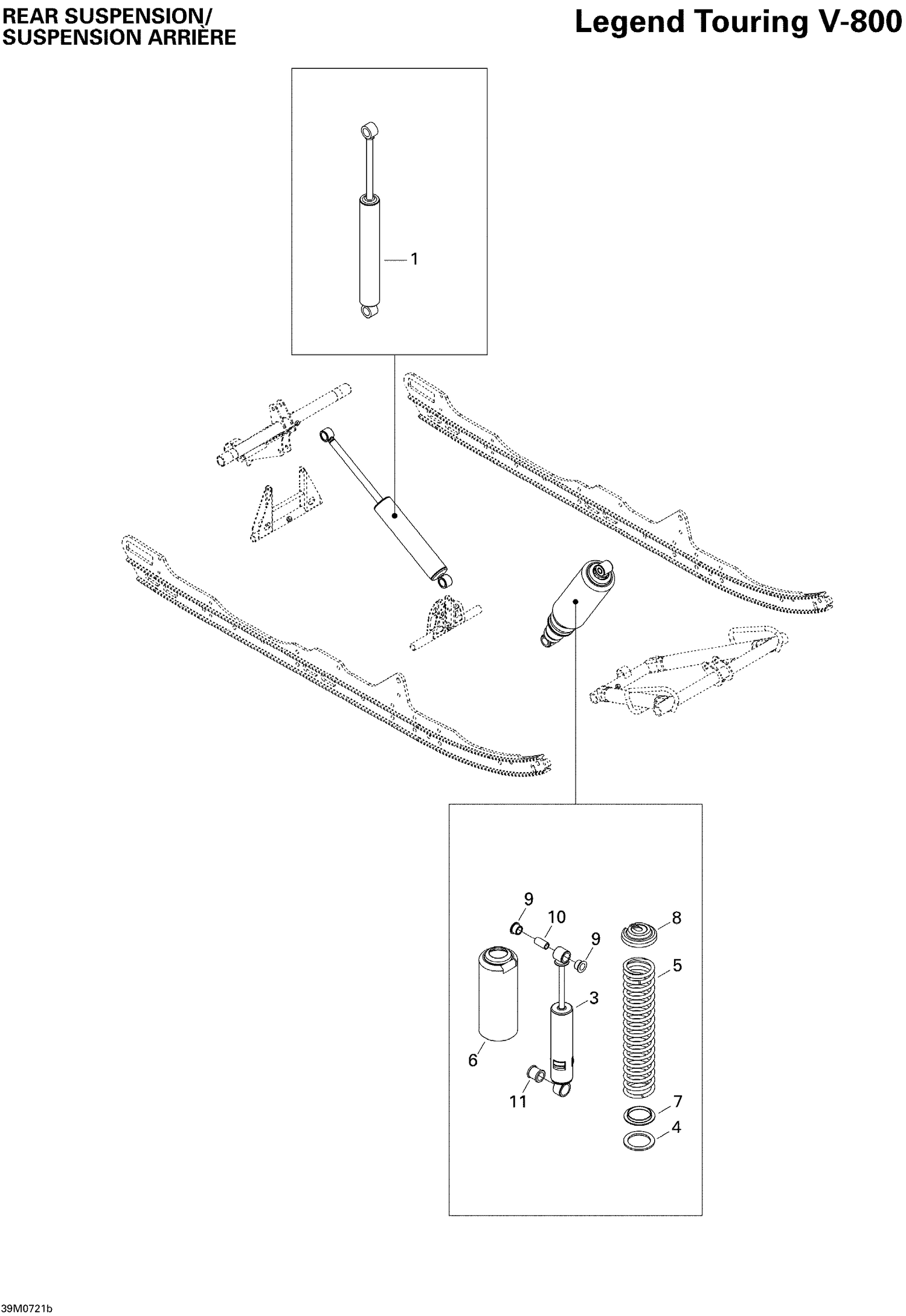

08- Rear Suspension Shocks Touring
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503191487 | Rear Shock |
| 3 | 503190992 | CENTER SHOCK - Call your local BRP dealership |
| 4 | 505070401 | WASHER - Call your local BRP dealership |
| 5 | 503189325 | SPRING - Call your local BRP dealership |
| 6 | 503193663 | Protector This part replaces 503191126. |
| 7 | 503187500 | Spring Guide |
| 8 | 706200881 | Spring Stopper This part replaces 503140600. |
| 9 | 503189117 | Urethane Bushing |
| 10 | 503189282 | Bushing |
