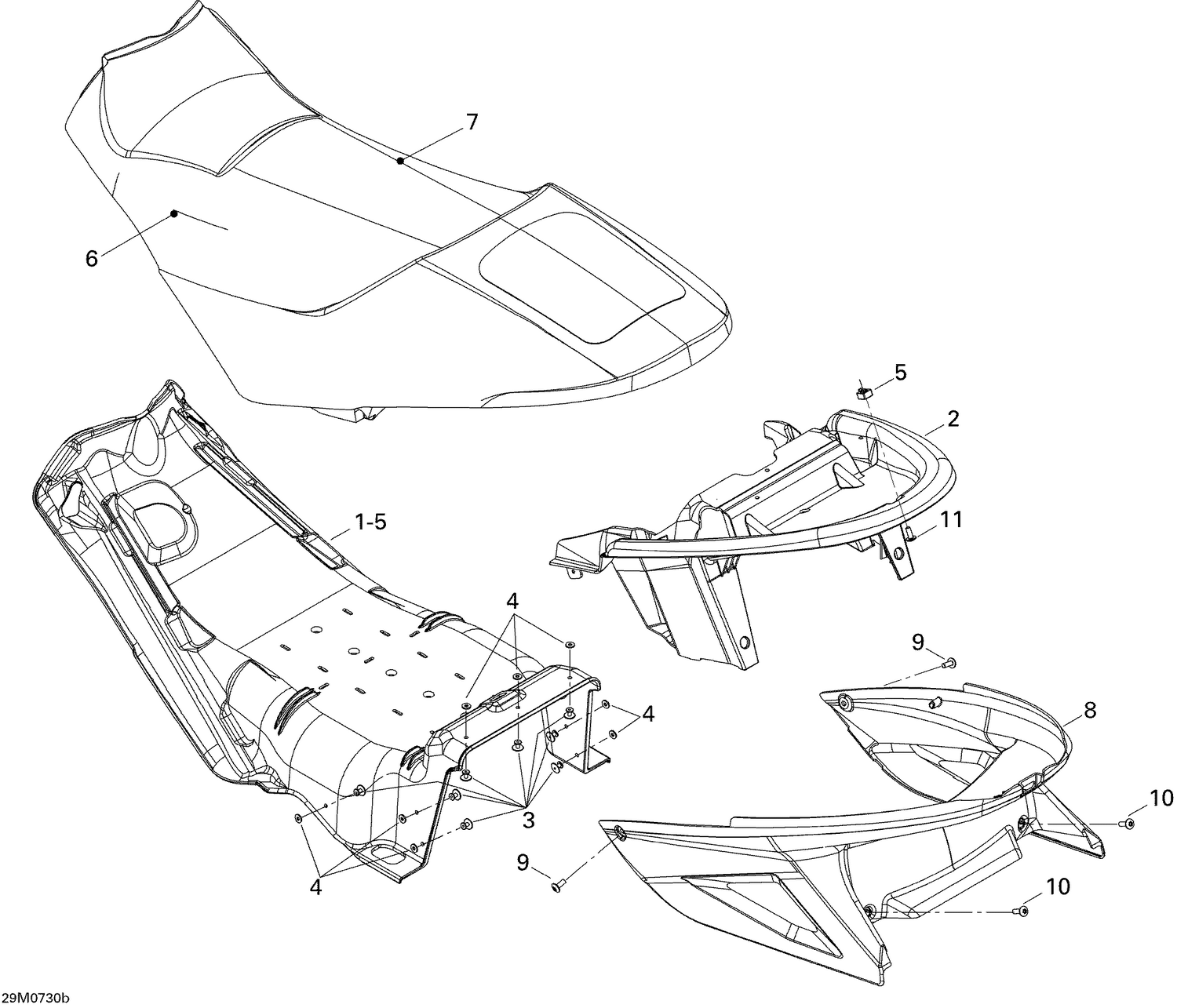

09- Seat X
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 510004582 | SEAT BASE ASS'Y - Call your local BRP dealership |
| 2 | 510004214 | Seat Base Ass'y |
| 3 | 293150104 | Pop Rivet 3/16" This part replaces 390409600. |
| 4 | 517225900 | Flat Washer |
| 5 | 708000046 | NUT HOUSING ASS'Y M6 - Call your local BRP dealership |
| 6 | 510004722 | Seat Cover |
| 7 | 510004216 | Seat Foam |
| 8 | 510004628 | TRUNK, BLACK - Call your local BRP dealership |
| 9 | 250000721 | Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 10 | 250000722 | Torx Screw M6 X 20 This part replaces 250000128. |
