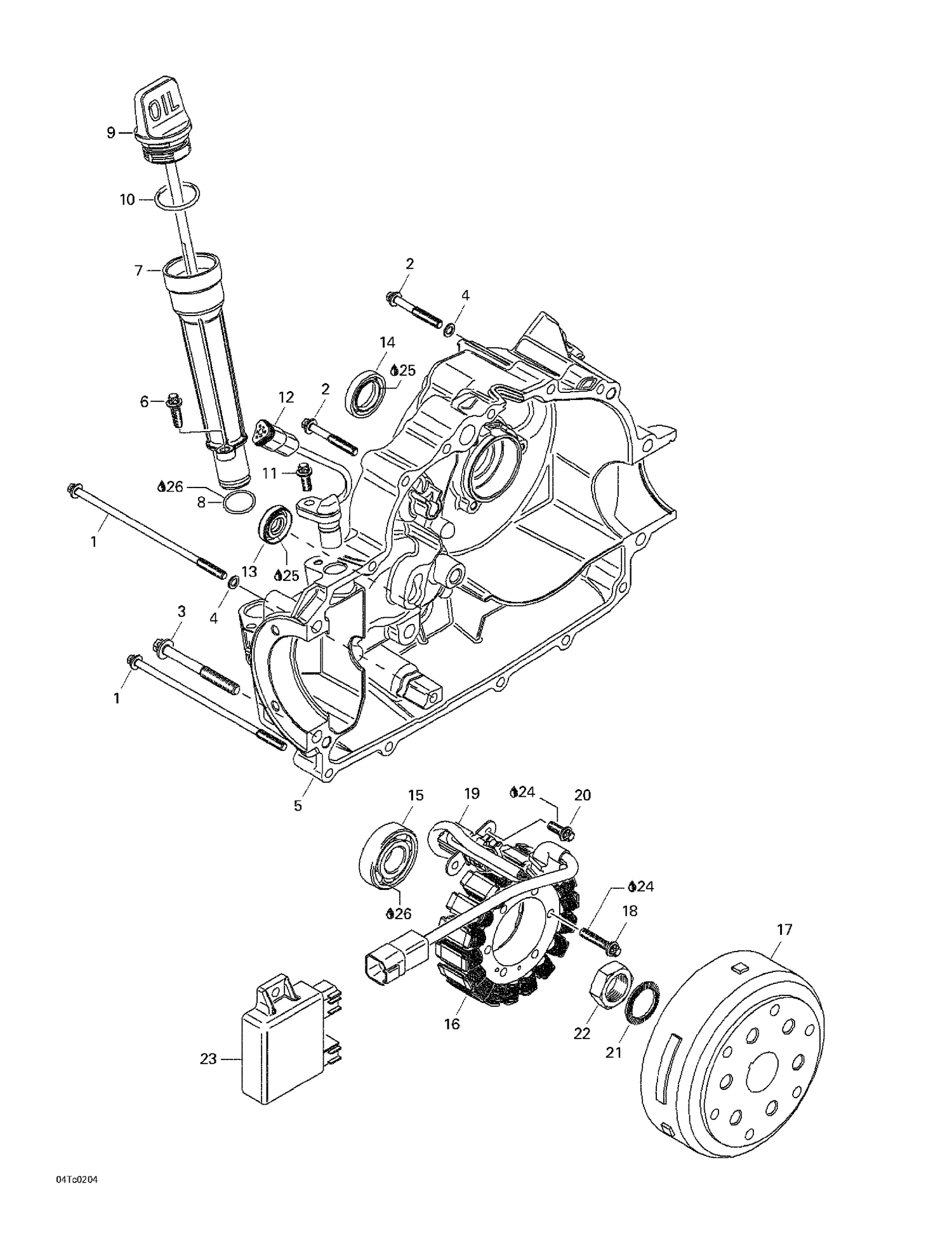

03- Magneto
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 711641423 | Torx Flange Screw M6 x 130 |
| 3 | 711640333 | Torx Flange Screw M8 x 65 |
| 4 | 404146600 | Sealing Washer |
| 6 | 420641238 | Torx Flange Screw M6 X 25 This part replaces 711641233. |
| 7 | 711956980 | Dipstick Tube |
| 8 | 711630430 | O-RING - Call your local BRP dealership |
| 9 | 711956895 | Dipstick |
| 10 | 420430590 | O-ring This part replaces 711430590. |
| 11 | 711641043 | Torx Flange Screw M6 x 16 |
| 12 | 420265727 | Camshft Position Sensor Ass'y This part replaces 711265622. |
| 16 | 711296630 | GENERATOR - Call your local BRP dealership |
| 17 | Not | Available As Spare Part - Rotor |
| 18 | 420641258 | Torx Flange Screw M6 X 35 This part replaces 711641253. |
| 19 | 711260870 | Cable Cover |
| 20 | 711641043 | Torx Flange Screw M6 x 16 |
| 21 | 711845510 | Washer |
| 22 | 420242012 | Hex. Nut M24 This part replaces 711242950. |
| 23 | 711265820 | Amplifier box |
| 24 | 293800060 | Loctite 243, 10 ml |
| 25 | 413707000 | Dow Corning 111, 150 g |
