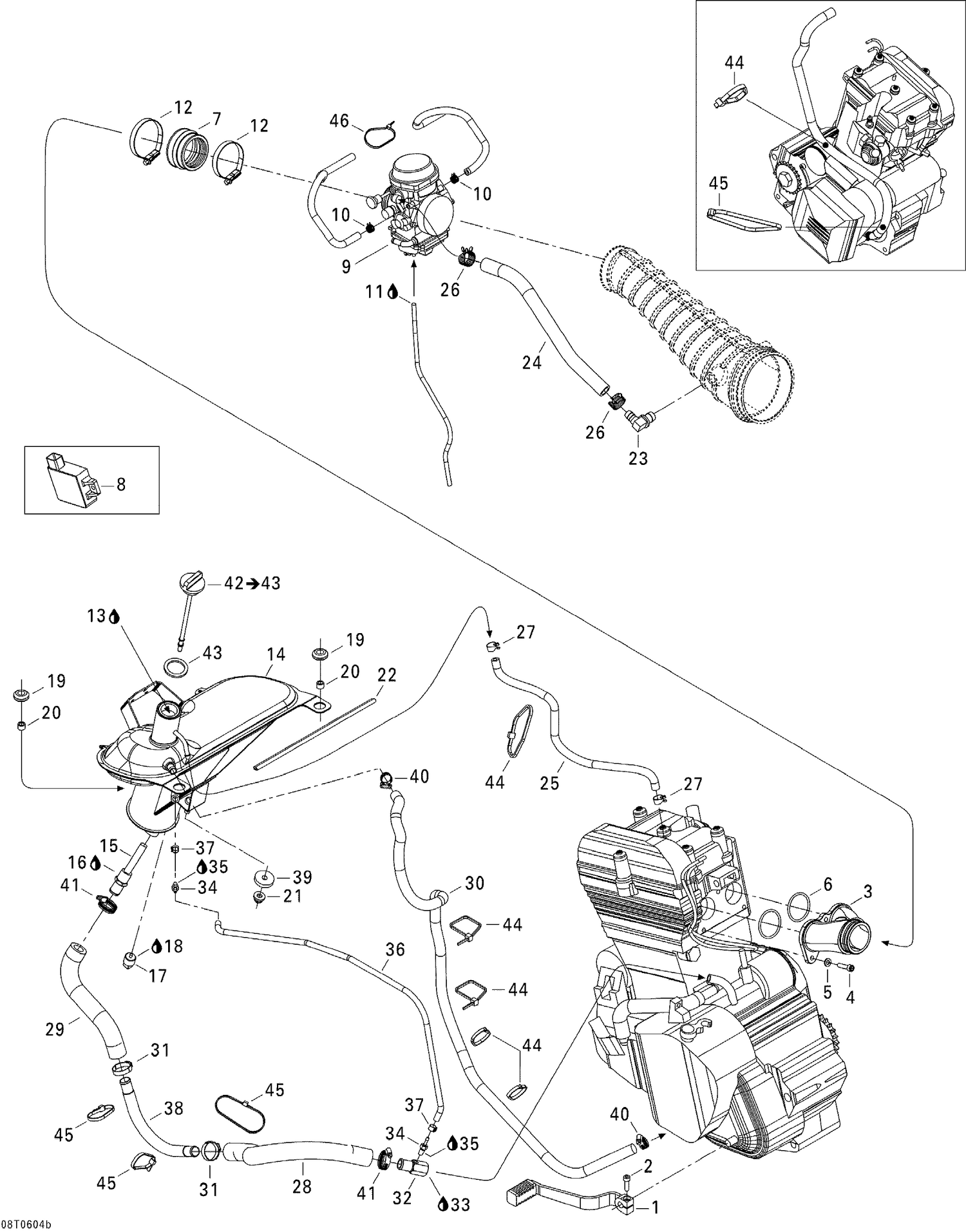

01- Engine 2
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420248317 | Gearshift Lever |
| 2 | 205062047 | Socket Head Screw M6 X 20 |
| 3 | 420267230 | Intake Adaptor |
| 4 | 205062544 | Socket Head Screw M6 X 25 |
| 5 | 234061410 | Flat Washer 6 mm |
| 6 | 293300059 | O-Ring |
| 7 | 420267240 | Carburator Flange 52 mm |
| 8 | 420664170 | AMPLIFIER BOX - Call your local BRP dealership |
| 9 | 707200142 | Carburator Bsr42-4 |
| 10 | 414420700 | Spring Clamp |
| 11 | 413708300 | Glue Tube, Loctite 454, 20 G |
| 12 | 293650090 | Norma Gear Clamp |
| 13 | Not | Available As Spare Part - Engine Oil 10 W 40 |
| 14 | 707000146 | OIL TANK - Call your local BRP dealership |
| 15 | 707000076 | STRAINER - Call your local BRP dealership |
| 16 | 219704454 | Was 293800013 Loctite 56765 |
| 17 | 250000053 | Magnetic Cap |
| 18 | 219704454 | Was 293800013 Loctite 56765 |
| 19 | 293720062 | Grommet |
| 20 | 707000058 | Spacer |
| 21 | 233281414 | Hex. Flange Elastic Nut M8 |
| 22 | 219704405 | TRIM 30000MM LONG - Call your local BRP dealership |
| 23 | 414523600 | Elbow Fitting |
| 24 | 414644800 | OIL LINE - Call your local BRP dealership |
| 25 | 219704549 | Hose This part replaces 219704439. |
| 26 | 414655700 | Spring Clamp |
| 27 | 414415200 | Spring Clamp |
| 28 | 707000098 | HOSE 15.8 MM, METER - Call your local BRP dealership |
| 29 | 707000098 | HOSE 15.8 MM, METER - Call your local BRP dealership |
| 30 | 709000022 | HOSE 9.5 MM, METER - Call your local BRP dealership |
| 31 | 293650099 | Crimp Clamp |
| 32 | 707000185 | Adaptor |
| 33 | 293800073 | Loctite 277, 10 ml |
| 34 | 707000240 | Hose Adaptor |
| 35 | 219704454 | Was 293800013 Loctite 56765 |
| 36 | 707000243 | HOSE 3.5 MM, METER - Call your local BRP dealership |
| 37 | 293650120 | NORMA CLAMP - Call your local BRP dealership |
| 38 | 707000059 | INTAKE TUBE - Call your local BRP dealership |
| 39 | 250200002 | RUBBER WASHER - Call your local BRP dealership |
| 40 | 293650171 | Tridon Gear Clamp |
| 41 | 293650124 | Norma Gear Clamp |
| 43 | 293250009 | O-RING - Call your local BRP dealership |
| 44 | 414115200 | Tie-Rap 180 mm |
| 45 | 293750008 | Tie Wrap 368 mm |
