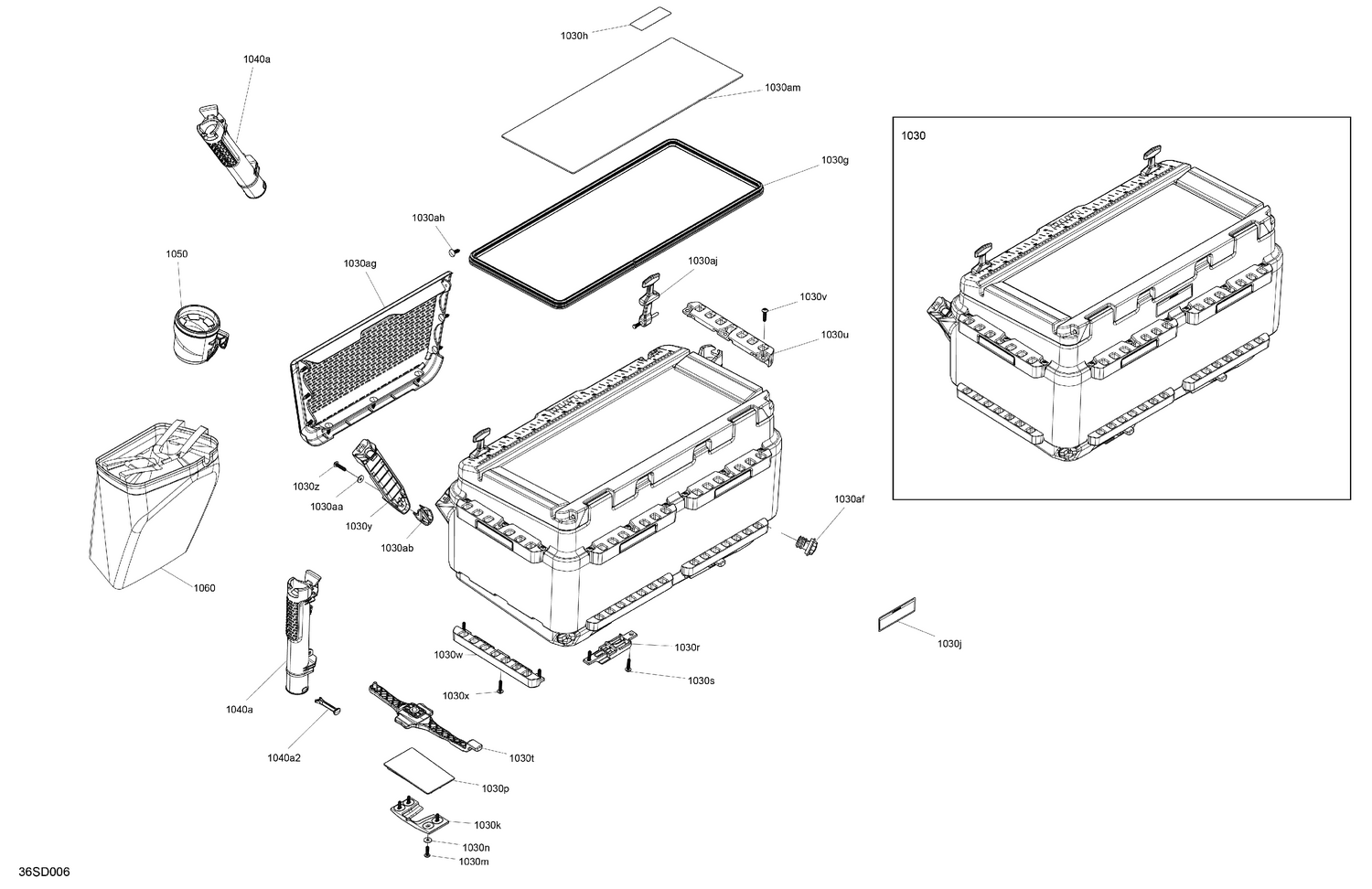

09- Miscellaneous - Utilities
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1030aa | 234062670 | Stainless Steel Flat Washer |
| 1030ab | 269800848 | Front Lower Rail |
| 1030af | 269800833 | Drain Plug Ass'y |
| 1030ag | 269800829 | Net Cargo |
| 1030ah | 293730083 | Black Dart |
| 1030aj | 520002067 | Lid Latch |
| 1030am | 269800828 | Anti Slip Mat |
| 1030g | 269801261 | Cover Gasket |
| 1030h | 219905522 | Warning Decal |
| 1030j | 219905521 | Warning Decal |
| 1030k | 269800824 | Under Cargo Anchorage |
| 1030m | 250000466 | Torx Screw Plastite M6 |
| 1030n | 234062600 | Flat Washer M6, Stainless |
| 1030p | 269800832 | Cooler Reinforcement |
| 1030r | 269800825 | Plate Stop |
| 1030s | 250001138 | Plastite Screw Torx Cone HD.M6.81X3 |
| 1030t | 269800826 | Lever Latch |
| 1030u | 269800827 | Upper Rail |
| 1030v | 250001138 | Plastite Screw Torx Cone HD.M6.81X3 |
| 1030w | 269800830 | Lower Rail |
| 1030x | 250001138 | Plastite Screw Torx Cone HD.M6.81X3 |
| 1030y | 269800831 | Front Upper Rail |
| 1030z | 250001138 | Plastite Screw Torx Cone HD.M6.81X3 |
| 1040a2 | 269800838 | Rod Stopper |
| 1050 | 295101230 | Cup Holder Kit |
| 1060 | 295100814 | Cargo Bag Storage Kit |
