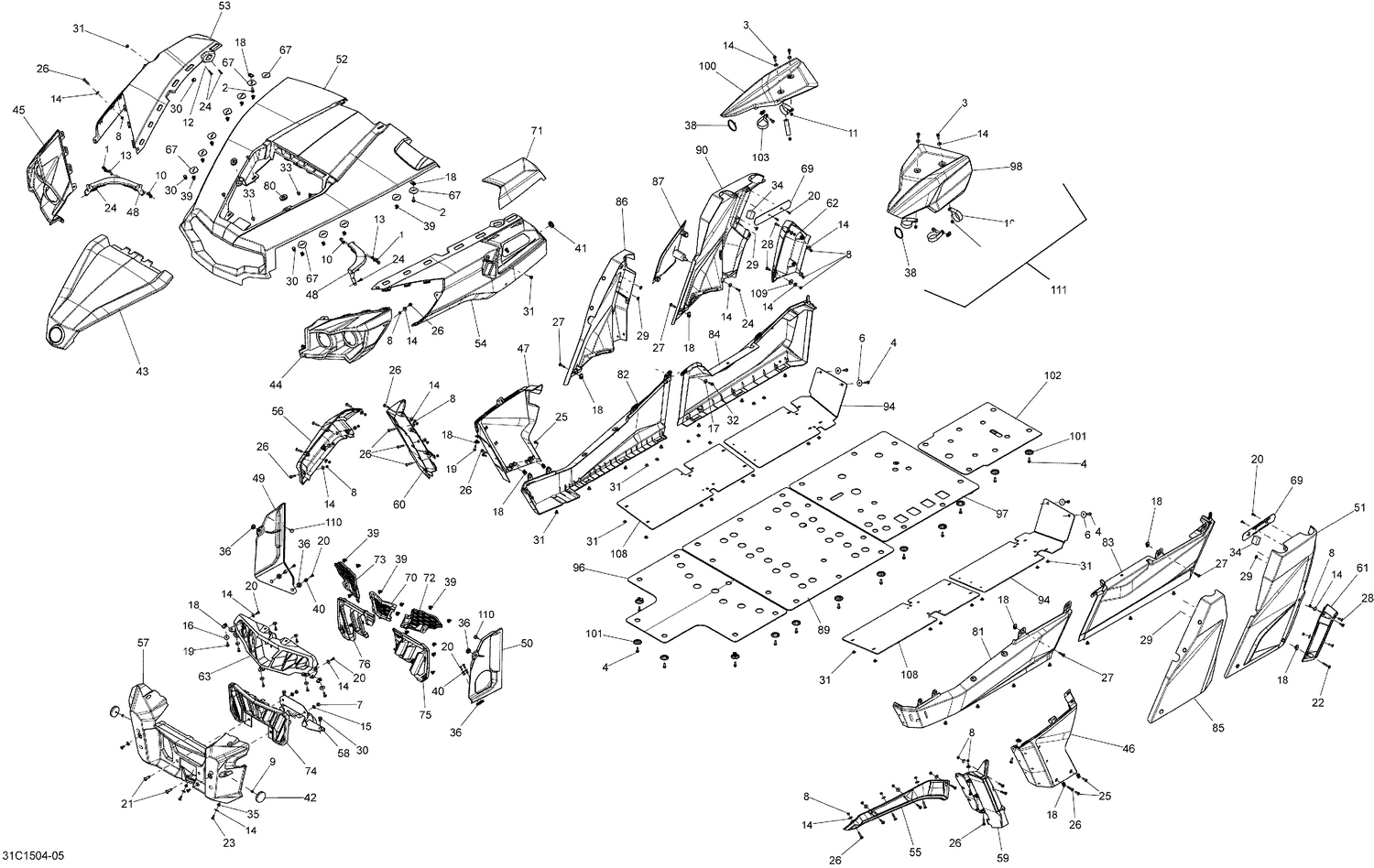

09- Body And Accessories _31C1504
Parts (60)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207661644 | Hex. Flange Screw M6 X 16 |
| 2 | 207662044 | Hex. Flange Screw M6 X 20 |
| 3 | 207662084 | Hex. Flange Screw M6 X 20 |
| 4 | 210262050 | Hexagonal Head Screw This part replaces 210262080. |
| 6 | 224081301 | Flat Washer |
| 8 | 232561434 | Elastic Stop Nut M6 |
| 9 | 233251434 | Flange Elastic Nut M5 |
| 10 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 11 | 233261494 | Hex. Flange Elastic Nut M6 |
| 12 | 234051410 | Flat Washer M5 |
| 13 | 234061600 | Stainless Flat Washer M6 |
| 14 | 234062670 | Stainless Steel Flat Washer |
| 16 | 234082410 | Flat Washer 8 mm |
| 17 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 18 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 19 | 250000722 | Torx Screw M6 X 20 This part replaces 250000128. |
| 20 | 250000720 | Torx Screw K50 X 16 This part replaces 250000146. |
| 22 | 250000215 | Torx Screw M6 X 45 |
| 23 | 250000755 | Torx Screw M6 X 16 This part replaces 250000261. |
| 24 | 250000297 | Truss Head Torx Screw K50 X 20 |
| 25 | 250000350 | Torx Truss Screw M6 X 20 |
| 26 | 250000842 | Stainless, Torx Screw M6 X 30 This part replaces 250000371. |
| 27 | 250000843 | Torx Truss Screw M6 X 30 This part replaces 250000398. |
| 29 | 250100129 | PUSH NUT - Call your local BRP dealership |
| 30 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 31 | 293150104 | Pop Rivet 3/16" |
| 32 | 250200025 | Washer M5 |
| 33 | 293150104 | Pop Rivet 3/16" |
| 34 | 293250318 | STRIP_WEATHER SELF ADHESIVE - Call your local BRP dealership |
| 35 | 250100242 | Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 36 | 709000582 | Grommet This part replaces 293720053. |
| 38 | 293750008 | Tie Wrap 368 mm |
| 39 | 517302785 | Edge Clip |
| 40 | 517303439 | Knob |
| 41 | 517303756 | Grommet |
| 42 | 705011222 | Amber Reflector This part replaces 705002409. |
| 44 | 705002885 | LH Front Facia |
| 45 | 705002886 | RH Front Facia |
| 49 | 705002894 | RH Deflector |
| 63 | 705003629 | FASCIA UP B-160 - Call your local BRP dealership |
| 67 | 705003841 | Support Plate |
| 69 | 705004261 | Support Plate |
| 70 | 705004336 | Center Upper Facia Protector |
| 72 | 705004350 | LH Upper Facia Protector |
| 73 | 705004351 | RH Upper Facia Protector |
| 74 | 705004755 | Lower Front Facia Protector |
| 75 | 705004819 | LH Lower Rear Facia Protector |
| 76 | 705004820 | RH Lower Rear Facia Protector |
| 80 | 705005156 | Oval Washer |
| 83 | 705005425 | Black, LH Rear Lower Panel |
| 84 | 705005426 | Black, RH Rear Lower Panel |
| 89 | 705009447 | Skid Plate This part replaces 705005939. |
| 94 | 705007038 | RH Lateral Skid Plate |
| 96 | 705007055 | Middle Protector Plate |
| 97 | 705007056 | Rear Protector Plate |
| 101 | 705007171 | Cup |
| 102 | 705007227 | Rear Protector Plate |
| 103 | 705005626 | Attache en "P", 2" Dia. |
| 108 | 705008421 | Side Protector Plate |
| 110 | 708000759 | Rubber Stopper |
