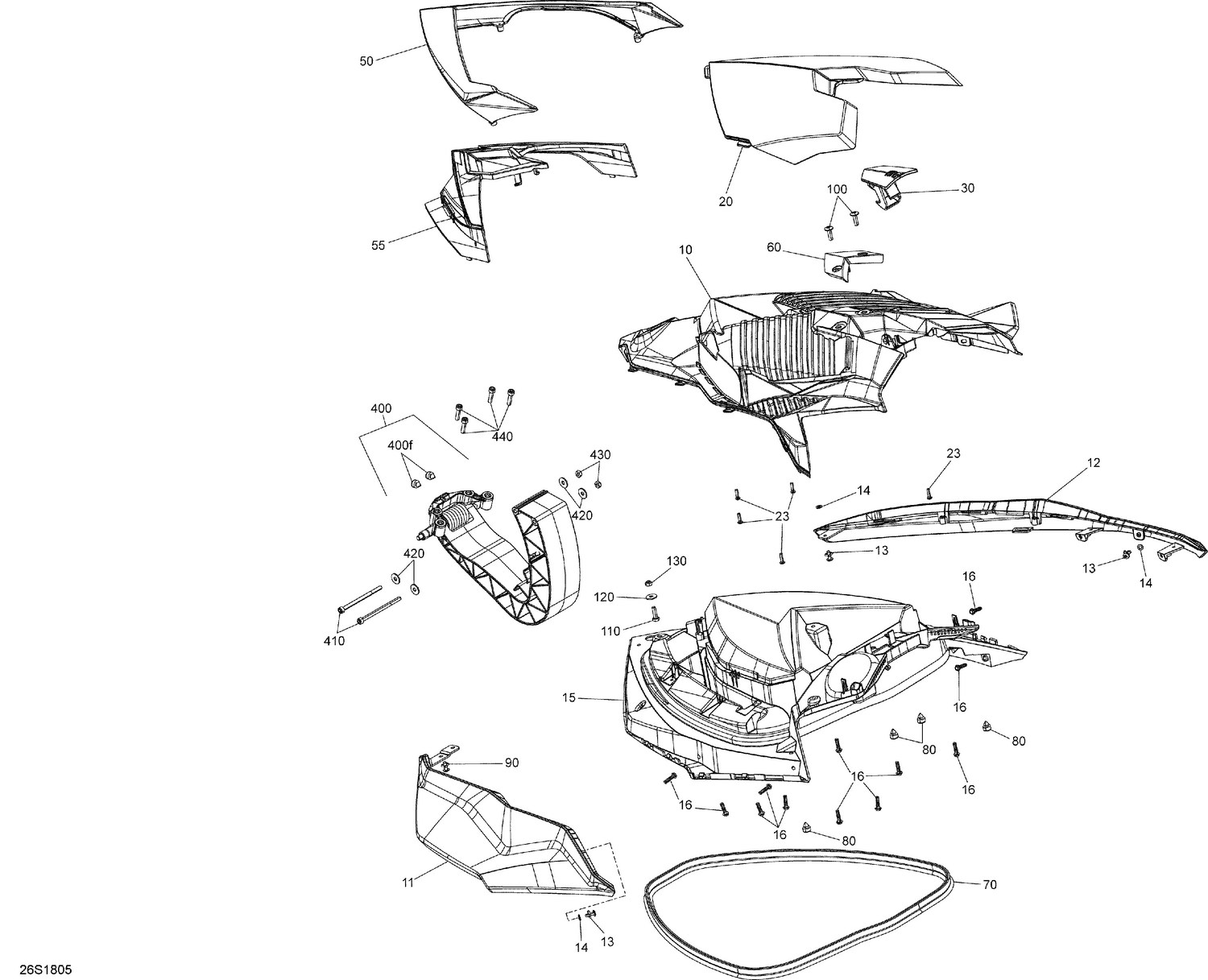

| Ref | Part Number | Description |
|---|
| 10 |
269502193 |
Black, Central Storage Cover |
| 11 |
269502328 |
Deep Black, LH Storage Cover |
| 12 |
269502329 |
Deep Black, RH Storage Cover |
| 13 |
293150027 |
Avdel Rivet |
| 14 |
234051500 |
Flat Washer 5 mm |
| 15 |
269502196 |
Deep Black, Storage Cover Lower |
| 16 |
241152060 |
Hex. Flange Screw K50 X 20 |
| 20 |
269502220 |
Black Tinted 45%, Deflector |
| 23 |
250000287 |
Flange Torx Screw K40 X 16 |
| 30 |
269700142 |
Deep Black, Latch Lever |
| 50 |
269501869 |
Deep Black, Front Cosmetic |
| 55 |
269502304 |
SUPPORT - Call your local BRP dealership |
| 60 |
269501941 |
Black, Clamp |
| 70 |
219704371 |
Neoprene Seal 3000 mm Long |
| 80 |
293830005 |
Rubber Bumper |
| 90 |
293150027 |
Avdel Rivet |
| 100 |
250000829 |
Torx-Truss M/S Stlss M6 X 20 |
| 110 |
207162060 |
Hex. Forming Screw M6 X 20 |
| 120 |
234062600 |
Flat Washer M6, Stainless |
| 130 |
232561200 |
Brass Elastic Stop Nut M6 |
| 400f |
293830005 |
Rubber Bumper |
| 410 |
205069060 |
Socket Head Screw M6 X 90 |
| 420 |
234062600 |
Flat Washer M6, Stainless |
| 430 |
232561200 |
Brass Elastic Stop Nut M6 |
