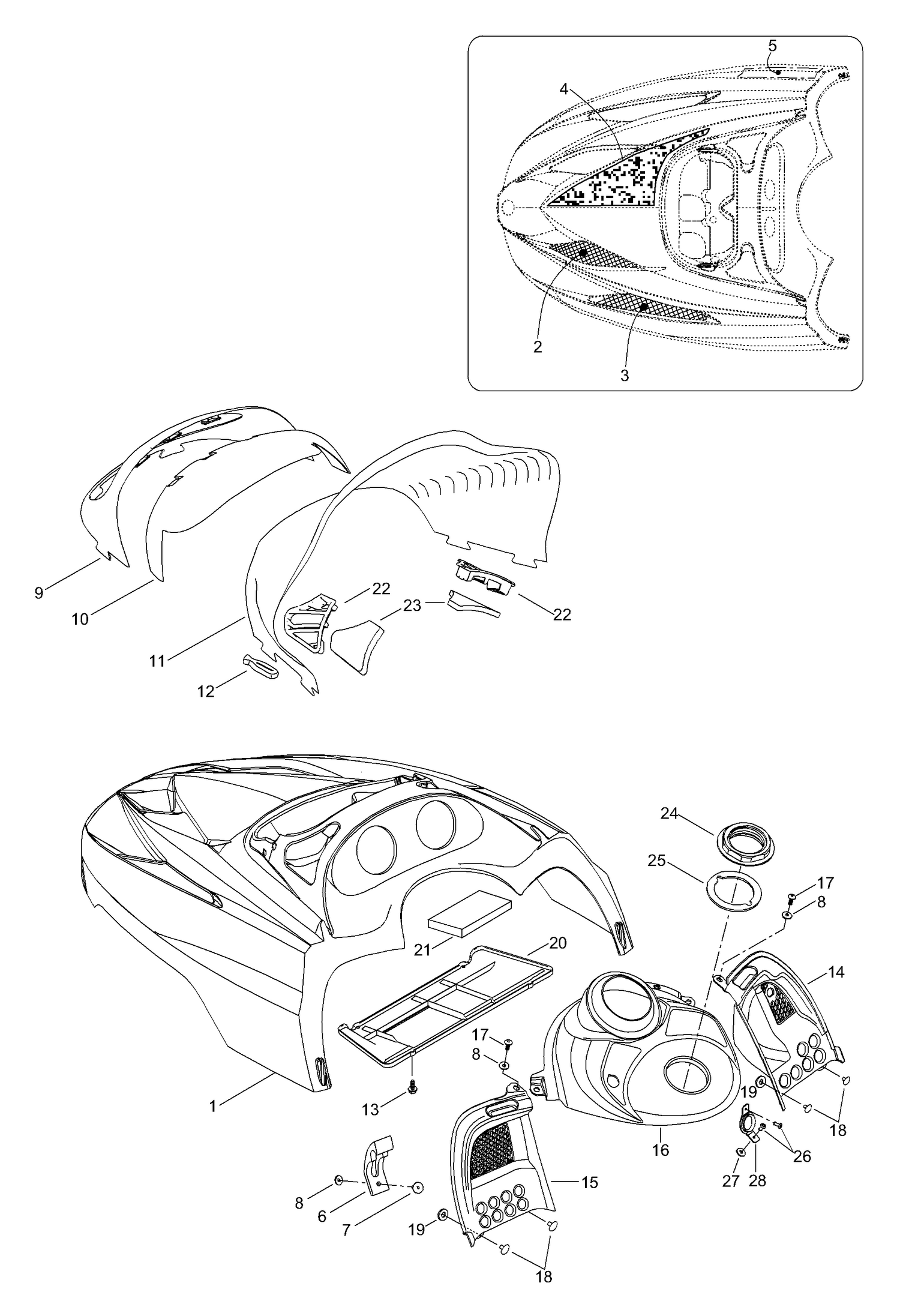

09- Hood
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 5346887 | L.H. Grill |
| 2 | 5346888 | R.H. Grill |
| 3 | 5346889 | L.H. Grill |
| 3 | 5346890 | R.H. Grill |
| 4 | 414631900 | Foam-acoustic |
| 5 | 605149354 | Isolation |
| 6 | 570027100 | Hood latch |
| 7 | 36037 | Rivet |
| 8 | 20008 | Washer |
| 9 | 517302582 | Mold. head lamp |
| 10 | 517302003 | WINDSHIELD SUPPORT - Call your local BRP dealership |
| 11 | 517302002 | Windshield, low |
| 12 | 570023800 | Windshield latch |
| 13 | 243141630 | Hex. Plastic Screw M4.8 X 16 This part replaces 243141640. |
| 14 | 517302005 | RH CONSOLE - Call your local BRP dealership |
| 15 | 517302006 | LH CONSOLE - Call your local BRP dealership |
| 16 | 517302729 | Center console |
| 17 | 250000676 | Forming Screw M5 x 16 This part replaces 732600030. |
| 18 | 36036 | Rivet |
| 19 | 20002 | Washer |
| 20 | 517302836 | AIR INTAKE PLATE - Call your local BRP dealership |
| 21 | 605350268 | Air intake foam |
| 22 | 517302024 | RH AIR INTAKE GRILL - Call your local BRP dealership |
| 22 | 517302025 | LH AIR INTAKE GRILL - Call your local BRP dealership |
| 23 | 605450267 | Air intake foam |
| 24 | 517302043 | CONSOLE NUT - Call your local BRP dealership |
| 25 | 5447116 | Gasket - Call your local BRP dealership |
| 26 | 36002 | Rivet |
| 27 | 517302286 | Rubber stopper |
