09- Frame And Body

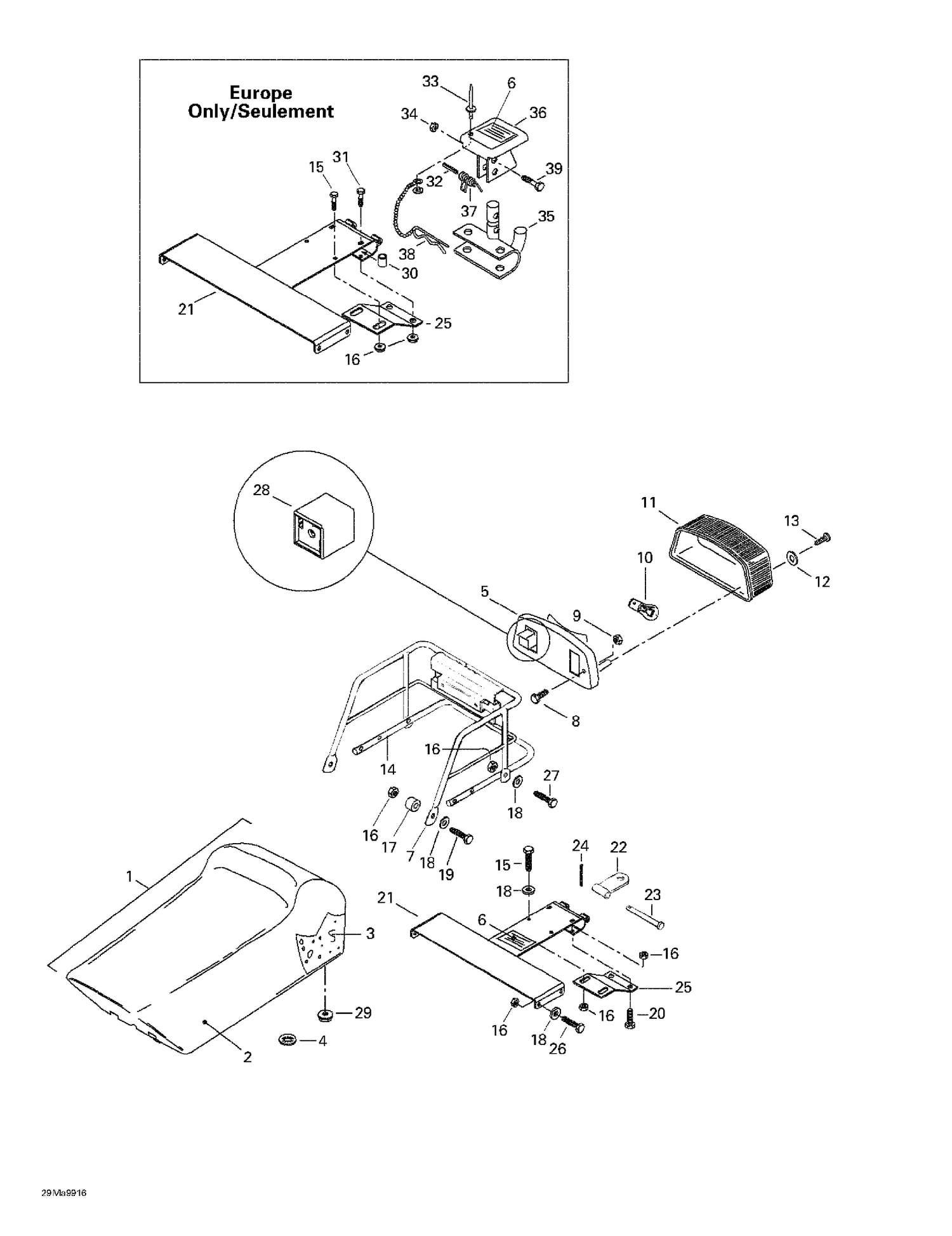

Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | Not | Available As Spare Part - Seat Ass'y |
| 2 | 415077803 | Seat Cover |
| 3 | 414737100 | Seat Foam |
| 4 | 732610072 | Push Nut |
| 5 | 511000007 | Light Housing Ass. |
| 6 | 414998500 | Instruction Label (Hitch) |
| 7 | 517191500 | Paint Rack |
| 8 | 222052565 | SCREW-HEX.CAP DIN.933 - Call your local BRP dealership |
| 9 | 233251434 | Flange Elastic Nut M5 This part replaces 228751045. |
| 10 | 520000758 | Bulb This part replaces 410504000. |
| 11 | 414513700 | Lens |
| 12 | 414516400 | Washer - Call your local BRP dealership |
| 13 | 209632540 | Phillips Tapping Screw M3.9 X 25 |
| 14 | 517170700 | Rear Bumper |
| 15 | 207162544 | Hex. Screw M6 X 25 This part replaces 222062565. |
| 16 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 17 | 517185600 | Spacer |
| 18 | 224061121 | Flat Washer |
| 19 | 207063544 | Hex. Flange Screw M6 X 35 |
| 20 | 207162044 | Hex. Screw M6 X 20 |
| 21 | 517200600 | Paint Hitch |
| 25 | 517217800 | Paint Reinforcement |
| 26 | 207064044 | Hex. Screw M6 X 40 This part replaces 222064065. |
| 27 | 207066044 | Hex. Screw M6 X 60 |
| 28 | 515175250 | Female Terminal Housing, 3 Circuits |
| 29 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
