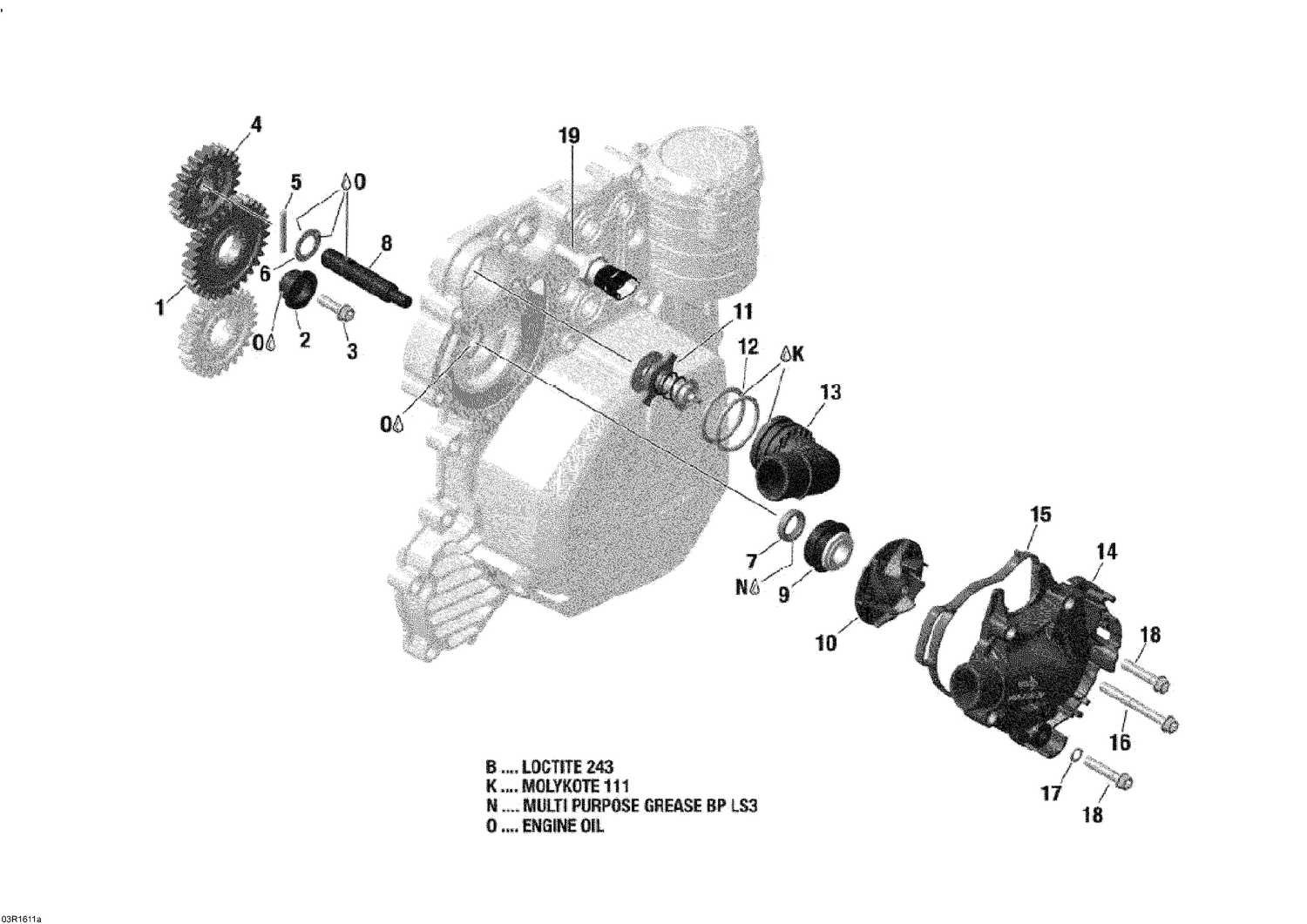

01- Engine Cooling - 900 ACE
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| B | Not | Available As Spare Part - Loctite 243 |
| K | Not | Available As Spare Part - Molykote 111 |
| N | Not | Available As Spare Part - Multipurpose Grease BP LS3 |
| 1 | 420835067 | Idle Gear, 31 Teeth This part replaces 420835059. |
| 2 | 420947394 | Spacer |
| 4 | 420835230 | Water Pump Gear |
| 5 | 420232431 | Needle Pin |
| 6 | 420827261 | Thrust Washer |
| 8 | 420820150 | Waterpump Shaft |
| 11 | 420822655 | Thermostat This part replaces 420822650. |
| 13 | 420922150 | Thermostat Cover |
