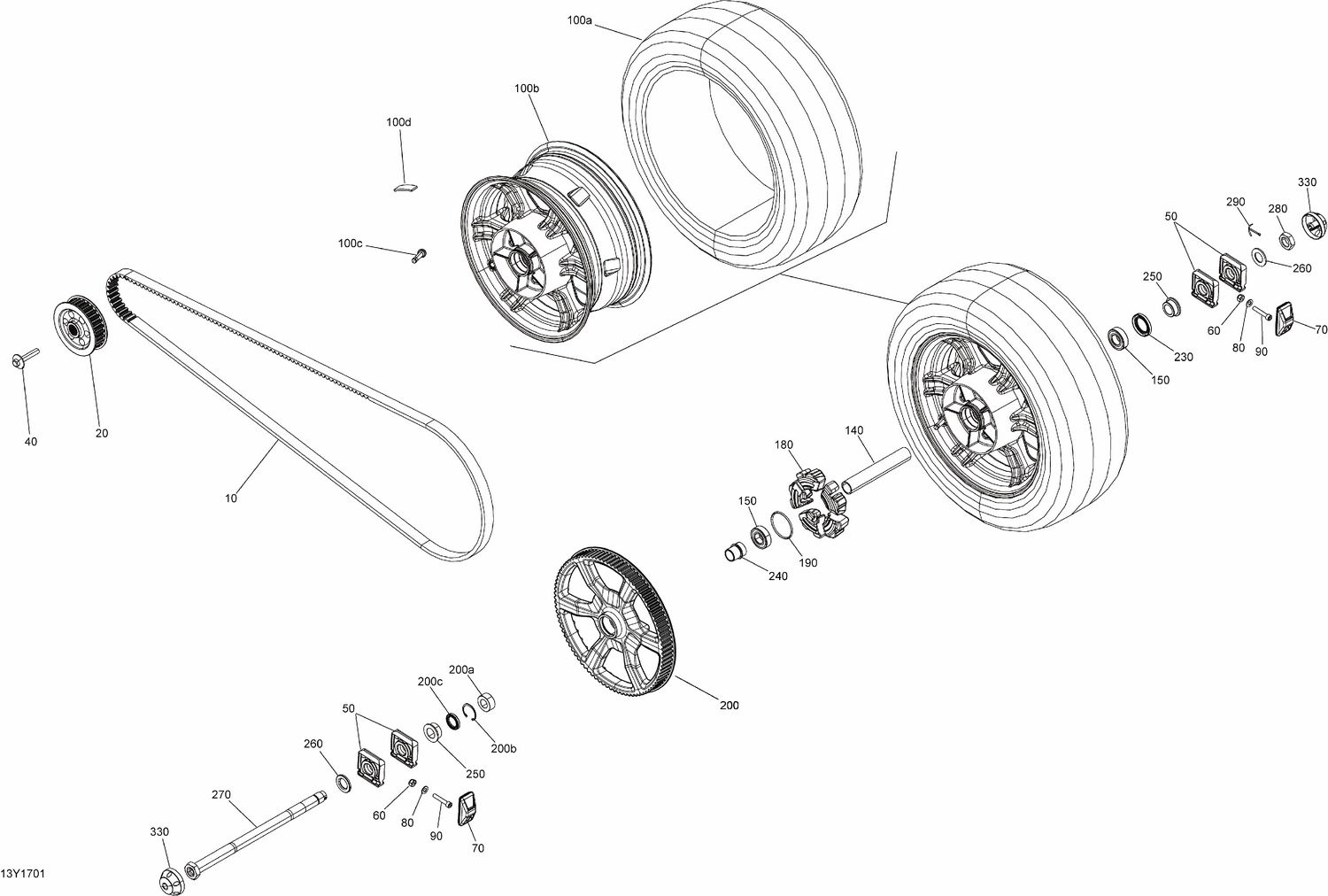

08- Drive System, Rear - All Models
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 548875428 | Drive Belt This part replaces 705501304. |
| 20 | 705503239 | Sprocket 28 Teeth This part replaces 705502134. |
| 40 | 250001017 | Hex Flange Screw DIN.6921 S.Grip This part replaces 705502292. |
| 50 | 705502448 | Sliding Block This part replaces 705500770. |
| 60 | 250100141 | Hex. Elastic Nut M8 |
| 70 | 705502450 | Adjustment Support This part replaces 705500758. |
| 80 | 234081410 | Flat Washer 8 mm |
| 90 | 250000713 | Socket Screw DIN.912 |
| 100a | 705503310 | Rear Tire 225/50R15 This part replaces 705501464. |
| 100c | 705400193 | Rim Valve With Cap |
| 100d | 705502106 | Self Adhesive Weight, 5G 20mm |
| 140 | 705502093 | Spacer Tube |
| 150 | 293350115 | Ball Bearing |
| 180 | 705503473 | Shock Absorber Bushing This part replaces 705500736. |
| 190 | 293300124 | O-Ring |
| 230 | 293200094 | Seal |
| 240 | 705500853 | Spacer |
| 250 | 705501602 | Spacer |
| 260 | 250200163 | Flat Washer |
| 270 | 705501691 | Rear Wheel Axle |
| 280 | 250100170 | Hex. Jam Nut M24 |
| 290 | 250400047 | Cotter Pin |
| 330 | 705501081 | LH Cap |
