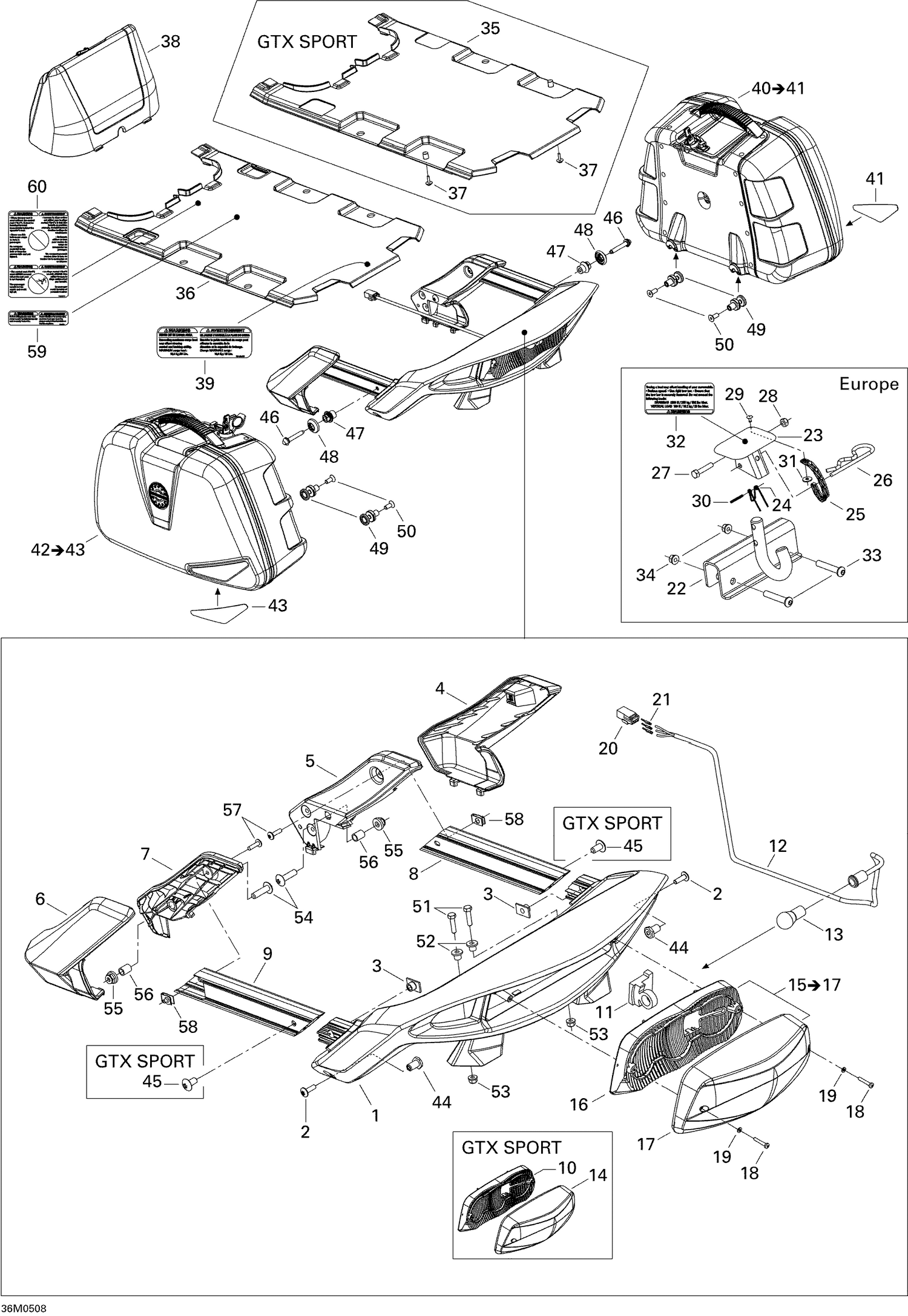

| Ref | Part Number | Description |
|---|
| 1 |
511000317 |
RACK - Call your local BRP dealership |
| 2 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 3 |
511000341 |
THREAD INSERT - Call your local BRP dealership |
| 4 |
511000322 |
RH OUTSIDE ARM - Call your local BRP dealership |
| 5 |
511000326 |
RH INSIDE ARM - Call your local BRP dealership |
| 6 |
511000323 |
LH OUTSIDE ARM - Call your local BRP dealership |
| 7 |
511000327 |
LH INSIDE ARM - Call your local BRP dealership |
| 8 |
511000321 |
RH SIDE BAR - Call your local BRP dealership |
| 9 |
511000345 |
LH SIDE BAR - Call your local BRP dealership |
| 10 |
510004442 |
REFLECTOR - Call your local BRP dealership |
| 11 |
511000431 |
BULB SUPPORT - Call your local BRP dealership |
| 12 |
511000428 |
Bulb Socket |
| 13 |
520000758 |
Bulb This part replaces 410504100. |
| 16 |
Not |
Available As Spare Part - Lens, Clear |
| 17 |
510004442 |
REFLECTOR - Call your local BRP dealership |
| 18 |
209632580 |
PHILLIPS TAPPING SCREW 3.9 X 25 - Call your local BRP dealership |
| 19 |
414516400 |
Washer - Call your local BRP dealership |
| 20 |
515175494 |
Male Housing, 3 Circuits |
| 21 |
515175232 |
Male Terminal |
| 38 |
511000357 |
Tank Cover |
| 39 |
516002666 |
Warning Label, Maximum Cargo Load |
| 44 |
511000398 |
INSERT - Call your local BRP dealership |
| 51 |
207162544 |
Hex. Screw M6 X 25 |
| 52 |
511000340 |
FLANGED BUSHING - Call your local BRP dealership |
| 53 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 54 |
250000745 |
Hex Torx Truss M8 X30 This part replaces 250000197. |
| 55 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 56 |
511000325 |
BUSHING - Call your local BRP dealership |
| 57 |
250000724 |
Torx Screw M5 X 20 This part replaces 250000130. |
| 58 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 59 |
516002743 |
Warning Decal, Secure Lock |
