Home / BRP / STERN DRIVE / 1990 / 7.40 / 744APEPWS 1990 / LOWER GEARCASE

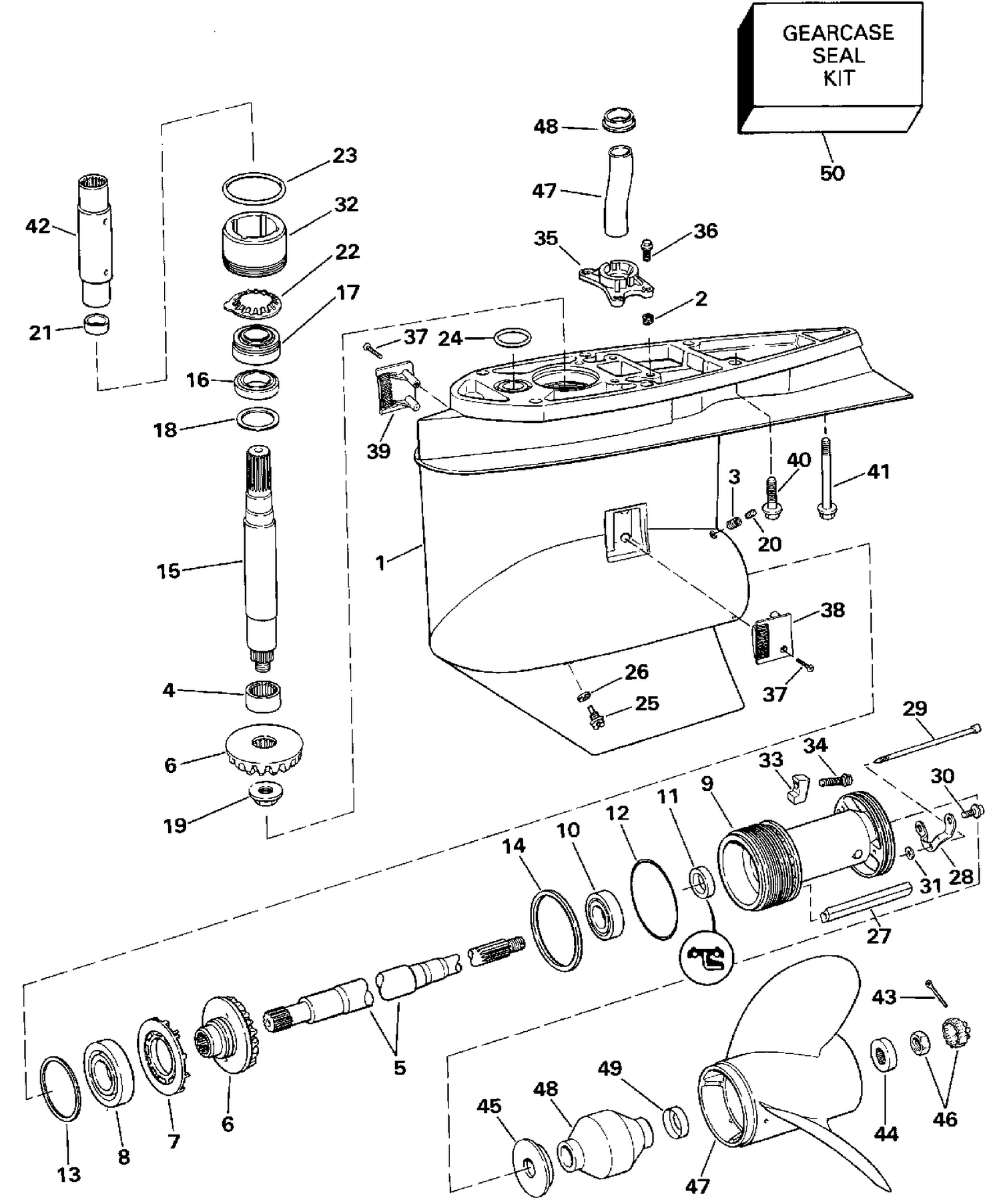

LOWER GEARCASE

LOWER GEARCASE

Parts (93)

RefPart NumberDescription
1 3854459 GEARCASE & BEARING This part replaces 0986202.
2 0910901 INSERT
3 3852567 INSERT This part replaces 0911858.
4 3853934 BEARING, Pinion This part replaces 0986182.
5 0986187 PROPELLER SHAFT
6 0986627 GEAR SET, 17:20
6 0987549 GEAR SET This part replaces 0986628.
7 3853941 OIL SLINGER & PINS This part replaces 0986275.
8 3850942 BEARING, Gear to gearcase This part replaces 0986211.
9 0913869 HOUSING, Propeller shaft
10 3854249 BEARING, Driveshaft, lower This part replaces 0386768.
11 0915703 SEAL, Prop shaft housing This part replaces 0911840.
12 3852865 O-RING, Propeller shaft hsg. This part replaces 0913849.
13 0913870 SHIM, Gear position, 0.004"
13 0913871 SHIM, Gear position, 0.003"
13 0913872 SHIM, Gear position, 0.005"
13 0913873 SHIM, Gear position, 0.010"
14 3852868 RING, Shim, 0.100 in. This part replaces 0913852.
14 3852869 RING, Shim, 0.102 in. This part replaces 0913853.
14 3852870 RING, Shim, 0.104 in. This part replaces 0913854.
14 3852871 RING, Shim, 0.106 in. This part replaces 0913855.
14 3852872 RING, Shim, 0.108 in. This part replaces 0913856.
14 3852873 RING, Shim, 0.110 in. This part replaces 0913857.
14 3852874 RING, Shim, 0.112 in. This part replaces 0913858.
14 3852875 RING, Shim, 0.114 in. This part replaces 0913859.
14 3852876 RING, Shim, 0.116 in. This part replaces 0913860.
14 3852877 RING, Shim, 0.118 in. This part replaces 0913861.
14 3852878 RING, Shim, 0.120 in. This part replaces 0913862.
14 3852879 RING, Shim, 0.122 in. This part replaces 0913863.
14 3852880 RING, Shim, 0.124 in. This part replaces 0913864.
14 3852881 RING, Shim, 0.096 in. This part replaces 0913865.
14 3852882 RING, Shim, 0.098 in. This part replaces 0913866.
15 3852884 DRIVESHAFT, Lower This part replaces 0913868.
16 3854249 BEARING, Driveshaft, lower This part replaces 0386768.
17 3854250 BEARING, Driveshaft, upper This part replaces 0979986.
18 3852889 SHIM, Pinion position, 0.003 in. This part replaces 0913874.
18 3852890 SHIM, Pinion position, 0.004 in. This part replaces 0913875.
18 3852891 SHIM, Pinion position, 0.005 in. This part replaces 0913876.
18 3852892 SHIM, Pinion position, 0.010 in. This part replaces 0913877.
19 3852861 NUT, Pinion to driveshaft This part replaces 0913842.
20 3853272 SET SCREW, Prop shaft housing This part replaces 0914559.
21 3852863 SUPPORT, Driveshaft This part replaces 0913847.
22 3852862 WASHER, Retaining This part replaces 0913845.
23 3852866 O-RING, Support housing This part replaces 0913850.
24 3852959 O-RING, Oil passage This part replaces 0914023.
27 3852970 ANODE, Prop shaft housing This part replaces 0914040.
28 0914041 RETAINER, Anode
29 0914042 SCREW, Anode
30 0914673 SCREW, Anode retainer
31 3852973 WASHER, Anode This part replaces 0914043.
32 3852883 RETAINER, Driveshaft This part replaces 0913867.
33 3853371 RETAINER, Prop shaft housing This part replaces 0914931.
34 3852478 SCREW, Prop shaft retainer This part replaces 0909937.
35 3853932 GUIDE & SEAL, Water tube This part replaces 0986176.
36 0341013 SCREW, Cover This part replaces 0908668.
37 0914915 SCREW, Screen
38 0913835 SCREEN, Water intake port
39 0913836 SCREEN, Water intake, port
40 3852867 SCREW, Lower to upper housing This part replaces 0913851.
42 3852902 DRIVESHAFT, Intermediate This part replaces 0913888.
45 0333592 THRUST BUSHING
47 3852963 TUBE, Water supply This part replaces 0914029.
48 0911705 GUIDE, Water tube
49 0174811 PROPELLER, 14 1/2 x 19 OMC Viper
49 0174812 PROPELLER, 14 1/2 X 21 OMC Viper
49 0174813 LH Viper 14 1/4 x 23
49 0174814 PROPELLER, 14 1/2 x 19 OMC Viper
49 0174815 PROPELLER, 14 1/2 x 21 OMC Viper
49 0174816 PROPELLER, 14 1/2 x 23 OMC Viper
49 0174889 PROPELLER, 15 x 17 OMC Viper
49 0174890 PROPELLER 15 x 17 OMC Viper
49 0174926 PROPELLER, 15 X 15 SST
49 0174927 PROPELLER, 15 x 15 SST
49 0389019 PROP, 14-1/2 x 23 SST
49 0389923 PROP, 14-1/2 x 21 SST
49 0389924 PROP, 14-1/2 x 19 SST
49 0390821 PROPELLER, 14 1/2 x 19 SST II
49 0390822 PROPELLER 14-1/4 X 21
49 0390823 PROPELLER 14-1/4 X 23
49 0391290 PROP, 15 x 17 SST
49 0394752 PROPELLER, 14 1/2 x 18 OMC Raker
49 0394753 PROPELLER, 14 1/2 x 20 OMC Raker
49 0394754 PROPELLER, 14 1/2 x 22 OMC Raker
49 0394755 PROPELLER, 13 1/2 X 24 OMC RAKER
49 0394756 PROPELLER, 14 1/2 x 26 OMC Raker
49 0394757 PROPELLER, 14 1/2 x 28 OMC Raker
49 0398502 PROPELLER, 14 1/2 X 20 RACKER
49 0398503 LH Raker 14 1/2 x 22
49 0398504 LH Raker 14 1/2 x 24
49 0398505 LH Raker 14 1/2 x 26
49 0398506 LH Raker 14 1/2 x 28
49 0431930 PROPELLER, 15 x 17 SSS II
0986625 0987248 GEARCASE ASSY., 17:20 This part replaces 0986625.
