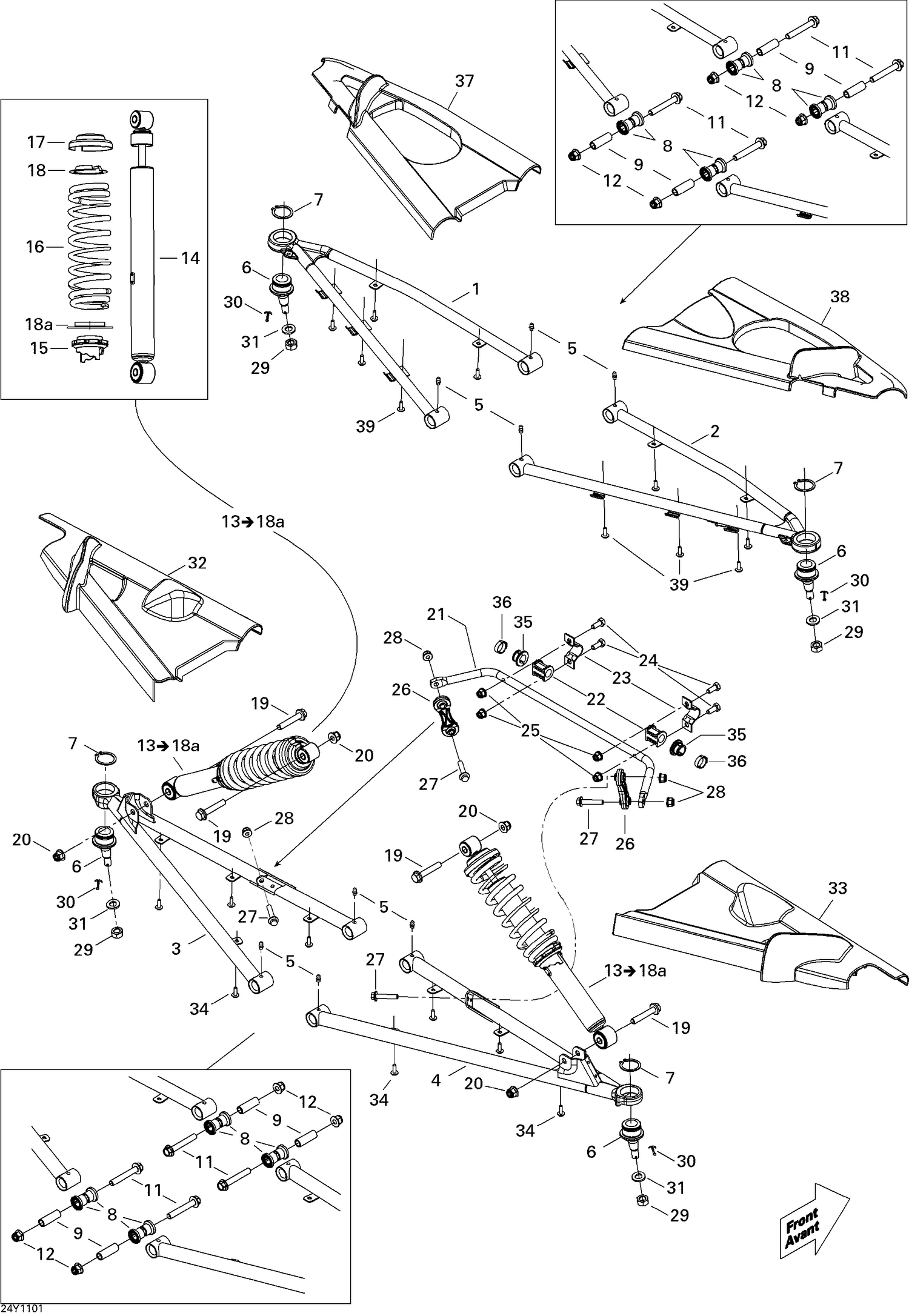

07- Suspension, Front
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 706201140 | LH ARM - Call your local BRP dealership |
| 2 | 706201141 | RH ARM - Call your local BRP dealership |
| 3 | 505071697 | LH LOWER ARM - Call your local BRP dealership |
| 4 | 505071703 | RH LOWER ARM - Call your local BRP dealership |
| 5 | 408200700 | Grease Fitting |
| 6 | 706202044 | Ball Joint This part replaces 505072362. |
| 7 | 293370035 | Circlip |
| 8 | 706200181 | Bushing |
| 9 | 706200618 | Bushing |
| 11 | 207606536 | Hex. Flange Screw M10 X 65 |
| 12 | 233201434 | Hex. Flange Elastic Nut M10 |
| 14 | 706201150 | FRONT SHOCK - Call your local BRP dealership |
| 15 | 706001061 | ADJUSTER RING - Call your local BRP dealership |
| 16 | 505071707 | FULL MOON SPRING - Call your local BRP dealership |
| 17 | 706200881 | Spring Stopper |
| 18 | 706200785 | Cap |
| 18a | 706001062 | RING PROTECTOR - Call your local BRP dealership |
| 19 | 207605534 | Hex. Flange Screw |
| 20 | 233201434 | Hex. Flange Elastic Nut M10 |
| 21 | 706200772 | SWAY BAR - Call your local BRP dealership |
| 22 | 505072287 | TORSION BUSHING - Call your local BRP dealership |
| 23 | 506095800 | CLAMP - Call your local BRP dealership |
| 24 | 207182034 | HEX. CAP SCREW M8 X 20 - Call your local BRP dealership |
| 25 | 233281434 | Hex. Flange Elastic Nut M8 |
| 26 | 706200671 | Tie Rod |
| 27 | 207684034 | Hex. Flange Screw M8 X 40 |
| 28 | 233281434 | Hex. Flange Elastic Nut M8 |
| 29 | 250100099 | Nut M12 |
| 30 | 250400035 | Cotter Pin |
| 31 | 706200281 | Hardened Washer This part replaces 250200086. |
| 32 | 706200884 | LH LOWER DEFLECTOR - Call your local BRP dealership |
| 33 | 706200885 | RH LOWER DEFLECTOR - Call your local BRP dealership |
| 34 | 243141630 | Hex. Plastic Screw M4.8 X 16 |
| 35 | 706201033 | SWAY BAR STOPPER - Call your local BRP dealership |
| 36 | 293650012 | Oetiker Clamp |
