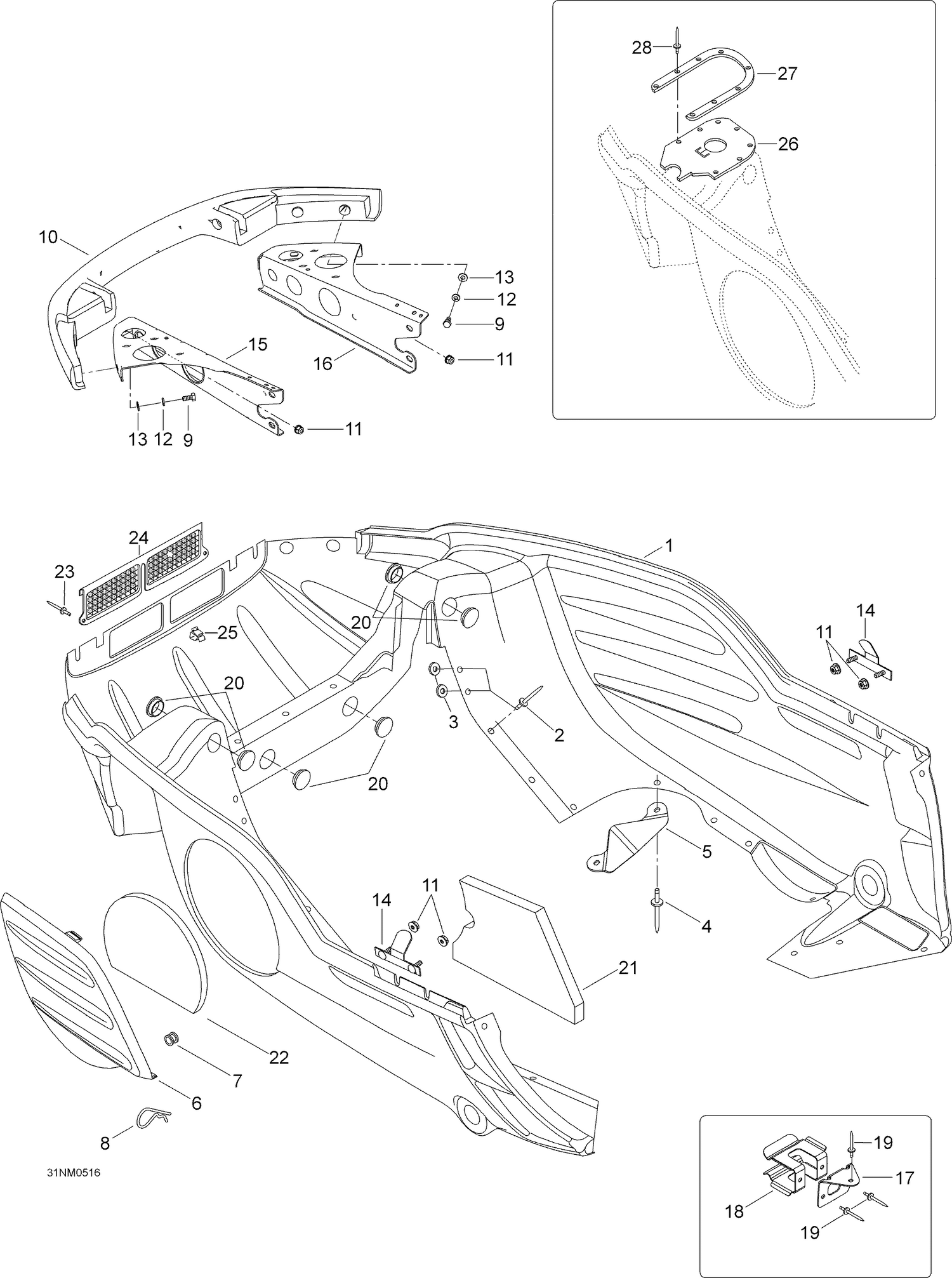

09- Bottom Pan
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 605150216 | Bottom pan, Viper Red |
| 2 | 36037 | Rivet |
| 3 | 20008 | Washer 5,3 mm |
| 4 | 36087 | Rivet |
| 5 | 502006563 | Deflector snow |
| 6 | 502006506 | BOTTOM PAN DOOR, BLACK, B-160 - Call your local BRP dealership |
| 7 | 414036300 | Grommet |
| 8 | 414575600 | Hair Pin |
| 9 | 40029 | Hex. screw M6 x 16 |
| 10 | 502006719 | Bumper (Black) |
| 11 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 12 | 20052 | Lock washer A6 |
| 13 | 234062410 | Flat Washer 6 mm This part replaces 20009. |
| 14 | 502006645 | LH Bracket |
| 15 | 502006597 | LH SUPPORT - Call your local BRP dealership |
| 16 | 502006596 | R.H. Support |
| 17 | 502006599 | Belt Support |
| 18 | 517281905 | Bracket |
| 19 | 36489 | Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 20 | 414916600 | Nylon Cap |
| 21 | 605250270 | Bottom foam |
| 22 | 605350269 | Bottom pan door foam |
| 23 | 36036 | Rivet |
| 24 | 502006697 | Center Grill |
| 25 | 517302785 | Clip |
| 26 | 605350666 | Grommet |
| 27 | 605350667 | Bracket |
