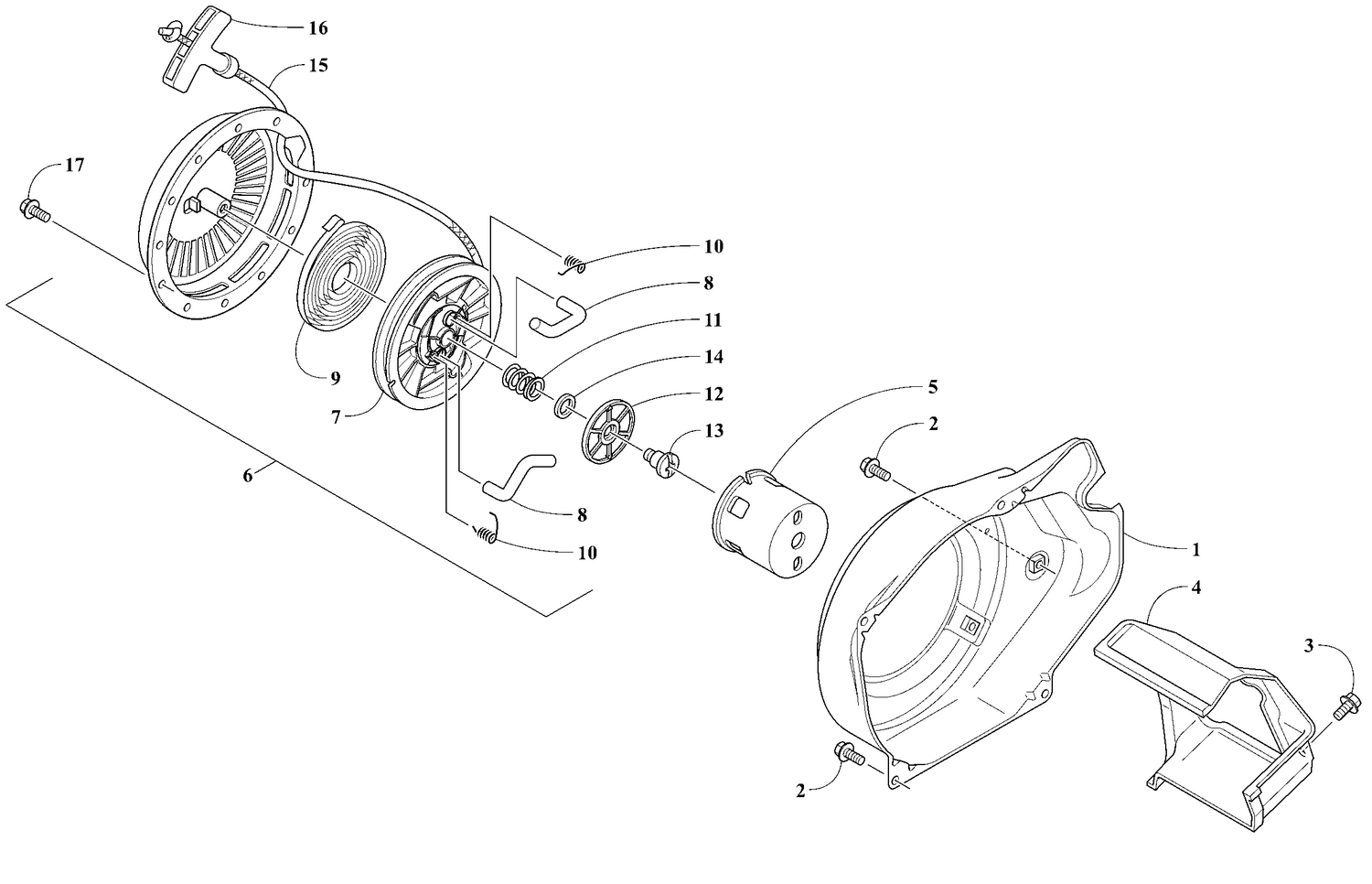

Engine - Recoil Starter and Air Shroud
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3021-749 | Ventilation Cowling |
| 2 | 3021-628 | Cap Screw |
| 3 | 3021-717 | Cap Screw |
| 4 | 3020-052 | Air Shroud |
| 5 | 3021-763 | Strater Pulley |
| 6 | 3021-940 | Rewing Starter Ass'y |
| 7 | 3021-752 | Reel |
| 8 | 3021-753 | Pawl Drive |
| 9 | 3021-754 | Spiral Spring |
| 10 | 3021-755 | Return Spring |
| 11 | 3021-756 | Friction Spring |
| 12 | 3021-757 | Drive Plate |
| 13 | 3021-758 | Screw Shoulder |
| 14 | 3021-759 | Thrust Washer |
| 15 | 3021-941 | Starter Rope |
| 16 | 3021-761 | Rope Grip |
