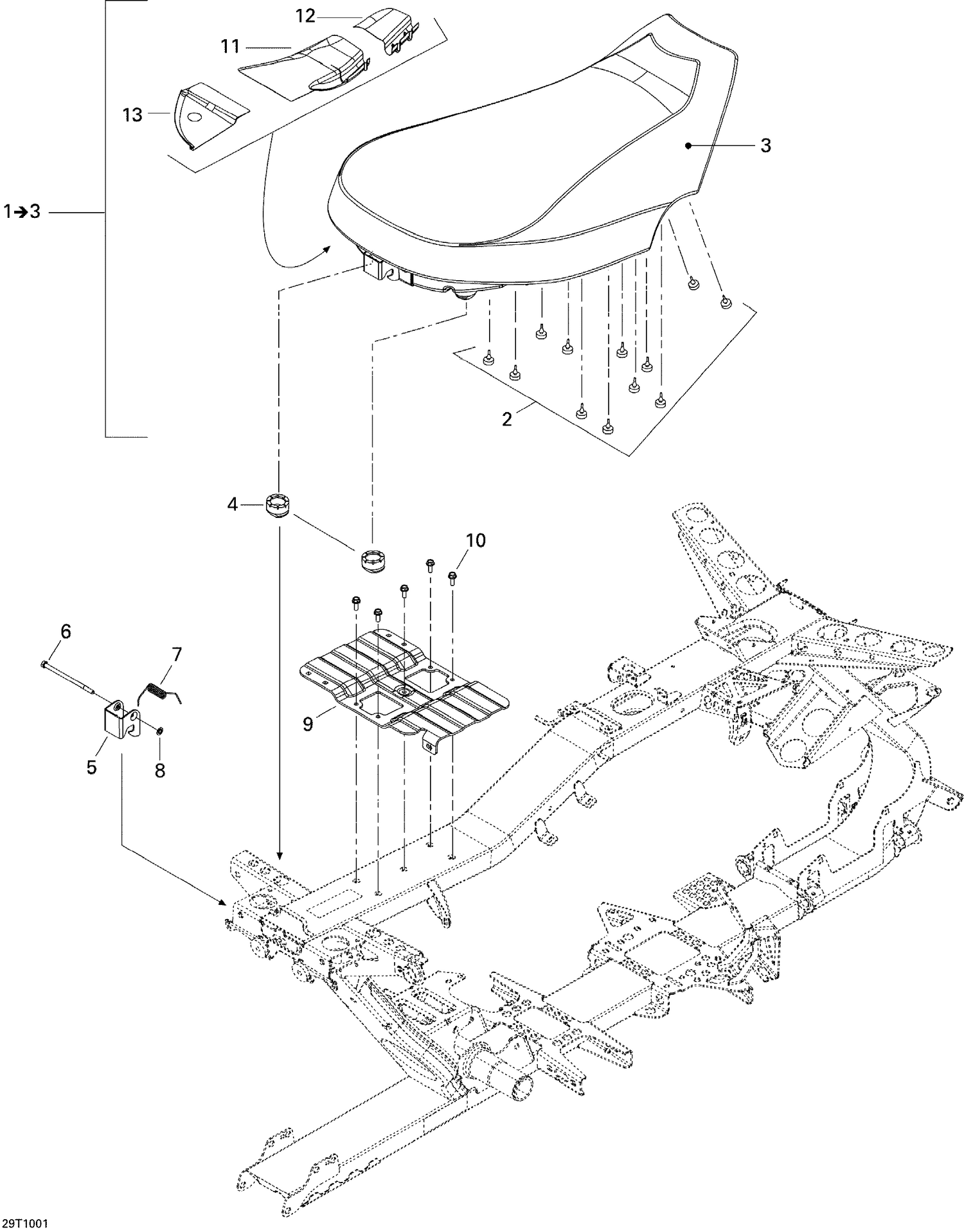

09- Seat
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 708000759 | Rubber Stopper This part replaces 708000771. |
| 3 | 708000556 | Seat Cover This part replaces 708000474. |
| 4 | 708000760 | Bumper Rubber |
| 5 | 708000144 | Latch, Black |
| 6 | 230061044 | Hex. Screw M6 X 110 |
| 7 | 708000369 | Spring |
| 8 | 732610072 | Push Nut |
| 9 | 708000629 | Seat Reinforcement |
| 10 | 210261250 | Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 11 | 708000650 | REFLECTING SHEET - Call your local BRP dealership |
| 12 | 708000649 | REFLECTING SHEET - Call your local BRP dealership |
