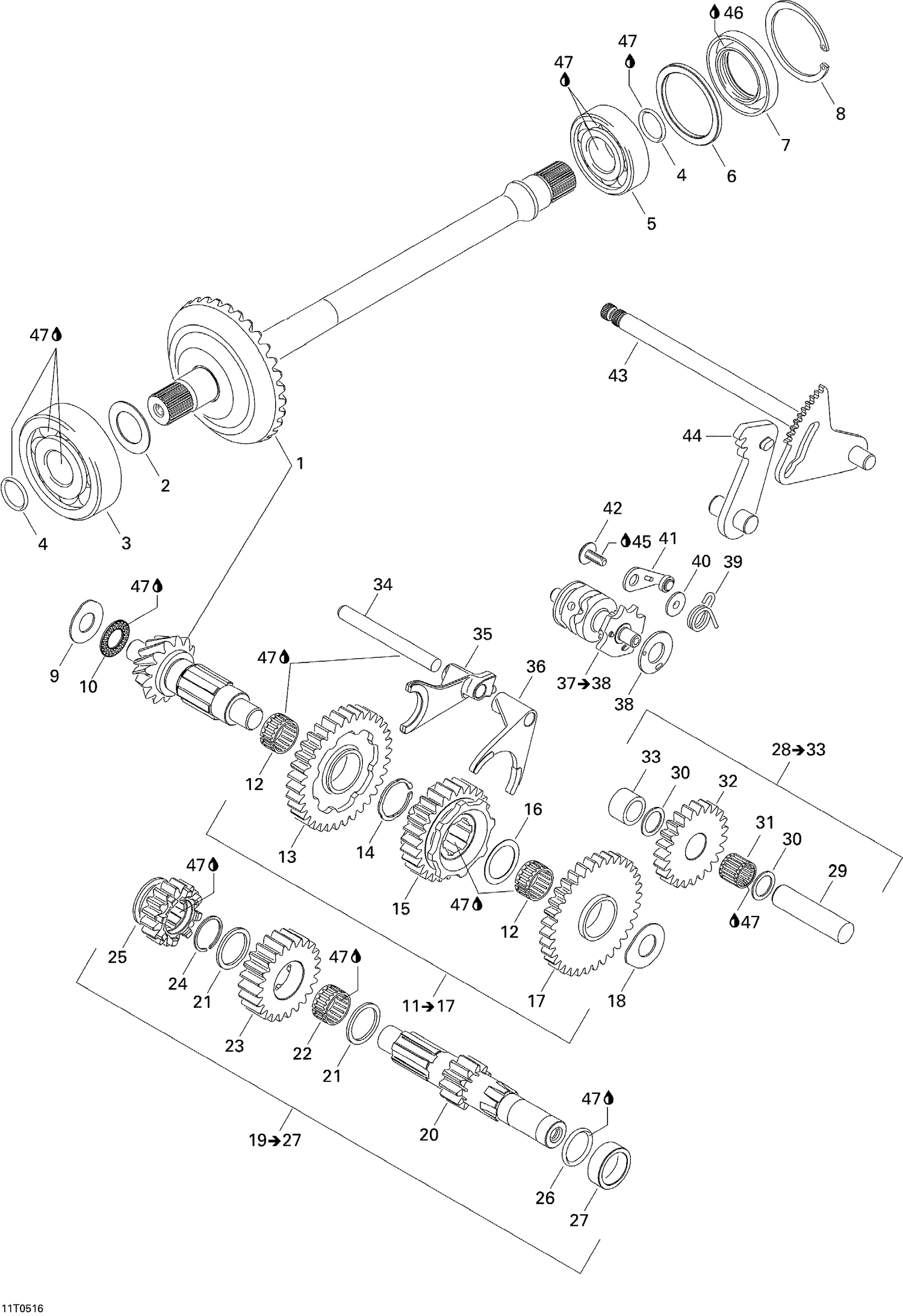

| Ref | Part Number | Description |
|---|
| 1 |
420296530 |
BEVELLED GEAR ASS'Y - Call your local BRP dealership |
| 2 |
420281300 |
Washer Thrust Set |
| 3 |
420632280 |
Ball Bearing 6405 |
| 4 |
420430373 |
O-Ring This part replaces 420430370. |
| 5 |
420932822 |
Ball Bearing This part replaces 420932825. |
| 6 |
420247250 |
DISTANCE RING - Call your local BRP dealership |
| 7 |
420650682 |
Oil Seal |
| 8 |
420445070 |
RETAINING RING - Call your local BRP dealership |
| 9 |
420281306 |
Thrust Washer Set, MAG Side This part replaces 420281304. |
| 10 |
420632300 |
Axial Needle Bearing |
| 12 |
420632070 |
Needle Bearing |
| 13 |
Not |
Available As Spare Part - Pinion Gear (33Teeth) |
| 14 |
420245850 |
Retaining Ring |
| 15 |
Not |
Available As Spare Part - Pinion Gear (27Teeth) |
| 16 |
Not |
Available As Spare Part - Thrust Washer |
| 17 |
Not |
Available As Spare Part - Pinion Gear (34Teeth) |
| 18 |
420281302 |
Thrust Washer Set, CVT Side |
| 20 |
Not |
Available As Spare Part - Coutershaft (11 Teeth) |
| 21 |
Not |
Available As Spare Part - Thrust Washer |
| 22 |
420632070 |
Needle Bearing |
| 23 |
Not |
Available As Spare Part - Pinion Gear (22Teeth) |
| 24 |
420445302 |
Circlip This part replaces 420445300. |
| 25 |
Not |
Available As Spare Part - Shift Gear (16 Teeth) |
| 26 |
420630040 |
O-Ring |
| 27 |
420247110 |
Distance Ring |
| 29 |
420229600 |
Needle Pin |
| 30 |
420944190 |
THRUST WASHER - Call your local BRP dealership |
| 31 |
420432034 |
Needle Cage This part replaces 420432030. |
| 32 |
420635310 |
GEAR, 23 TEETH - Call your local BRP dealership |
| 33 |
420247120 |
DISTANCE SLEEVE - Call your local BRP dealership |
| 34 |
420229540 |
Pin |
| 35 |
420257180 |
SHIFT FORK - Call your local BRP dealership |
| 36 |
420257230 |
Shift Fork |
| 38 |
420227567 |
ISOLATING WASHER - Call your local BRP dealership |
| 39 |
420239561 |
Index Spring |
| 40 |
420227710 |
BUSHING - Call your local BRP dealership |
| 41 |
703500189 |
INDEX LEVER KIT - Call your local BRP dealership |
| 42 |
420241522 |
Torx Screw M6 X 16 This part replaces 420241526. |
| 43 |
420220806 |
SHIFT SHAFT ASS'Y - Call your local BRP dealership |
| 45 |
293800060 |
Loctite 243, 10 ml |
| 46 |
293550030 |
Grease, Super Lube |
