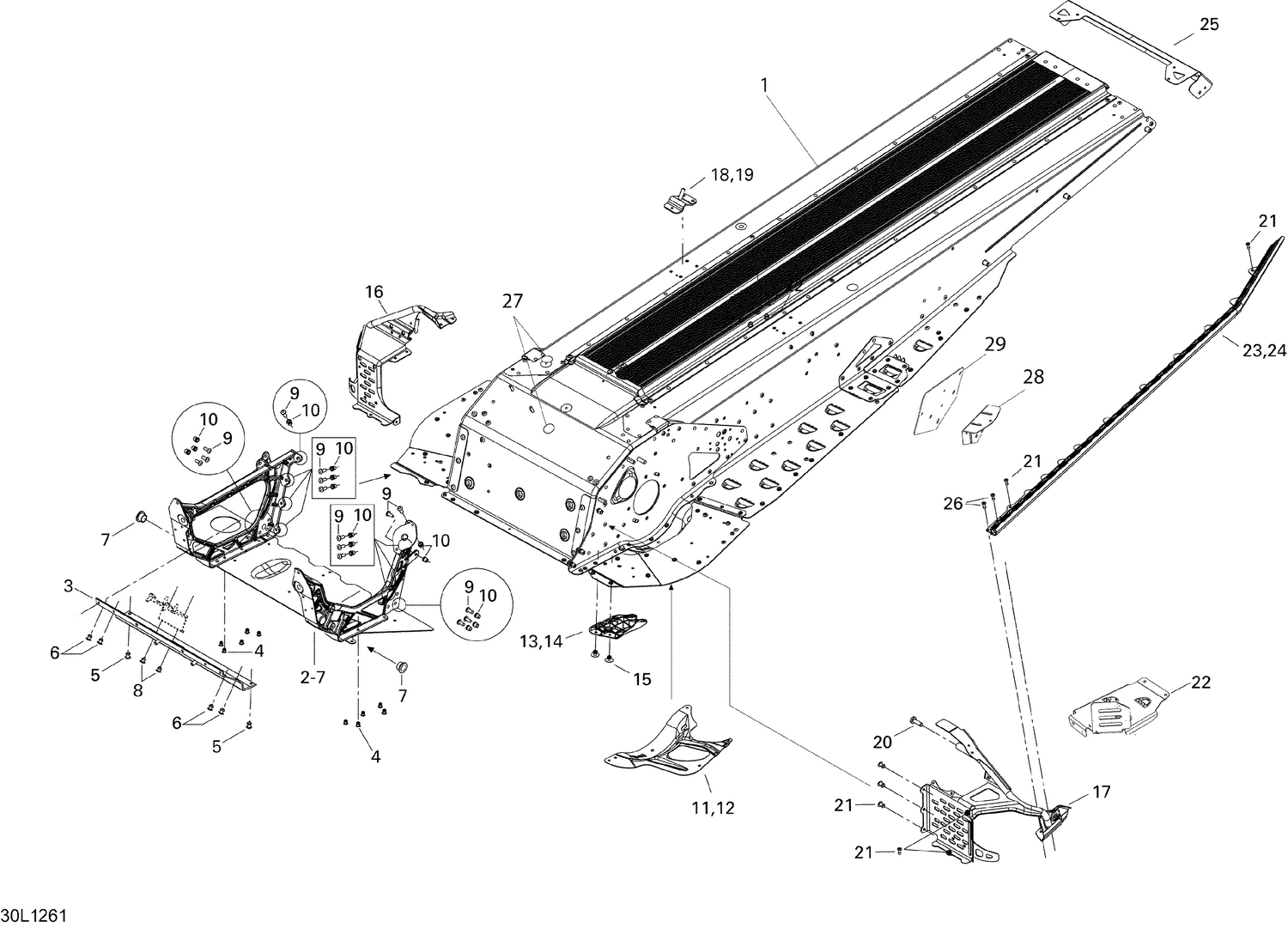

09- Frame
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 518326190 | E Module |
| 3 | 518325818 | Front Member |
| 4 | 390909100 | Avex Rivet |
| 5 | 293150120 | Hemlock Rivet |
| 6 | 293150119 | Hemlock Rivet, 6.5 mm |
| 7 | 505072690 | Leg Bushing |
| 8 | 293150174 | Hemlock Rivet, 6.5 mm |
| 9 | 207662044 | Hex. Flange Screw M6 X 20 |
| 10 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 11 | 518324874 | RH Reinforcement |
| 12 | 518324875 | LH Reinforcement |
| 13 | 518325782 | RH Deflector |
| 14 | 518325783 | LH Deflector |
| 15 | 293150104 | Pop Rivet 3/16 |
| 16 | 518328938 | Etrier Droit *Rh.Stirup This part replaces 518326216. |
| 17 | 518327935 | LH STIRUP - Call your local BRP dealership This part replaces 518326239. |
| 18 | 518326421 | RH Rear Base |
| 19 | 518326443 | LH Rear Base |
| 20 | 250000752 | Pan HD Torx Screw M8 x 25 This part replaces 250000248. |
| 21 | 390909200 | Avex Rivet |
| 22 | 518326415 | Footrest R.H. |
| 22 | 518326416 | Footrest L.H. |
| 23 | 518327068 | LH Roller |
| 24 | 518327069 | RH Roller |
| 25 | 518326227 | Rear Cap |
| 26 | 390402300 | Pop Rivet 3/16" |
