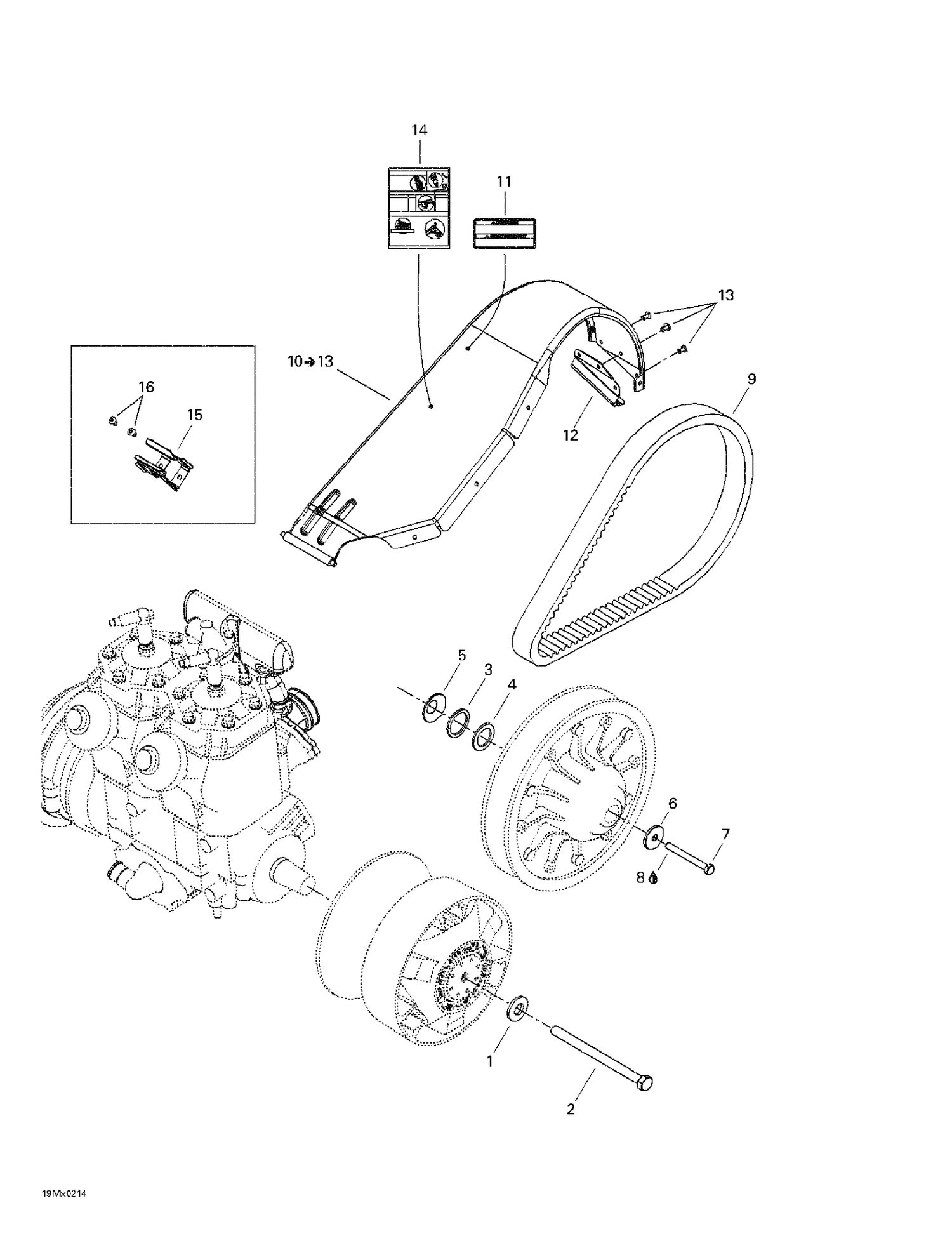

05- Pulleys System
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 250200006 | Spring Washer 14 mm |
| 2 | 417120000 | Drive Pulley Bolt |
| 3 | 504108200 | SHIM - Call your local BRP dealership |
| 4 | 417300265 | Spacer This part replaces 417300054. |
| 5 | 417300055 | Protector |
| 6 | 517302322 | Strength Washer |
| 7 | 207087544 | HEX. SCREW M8 X 75 - Call your local BRP dealership |
| 8 | 293800060 | Loctite 243, 10 ml |
| 9 | 417300585 | Drive Belt This part replaces 417300127. |
| 11 | 516002670 | WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership This part replaces 516001190. |
| 12 | 417300204 | Belt Guard Bracket |
| 13 | 390402200 | Pop Rivet 3/16" |
| 14 | 516000708 | Ajustement Decal |
| 15 | 517281905 | Bracket |
