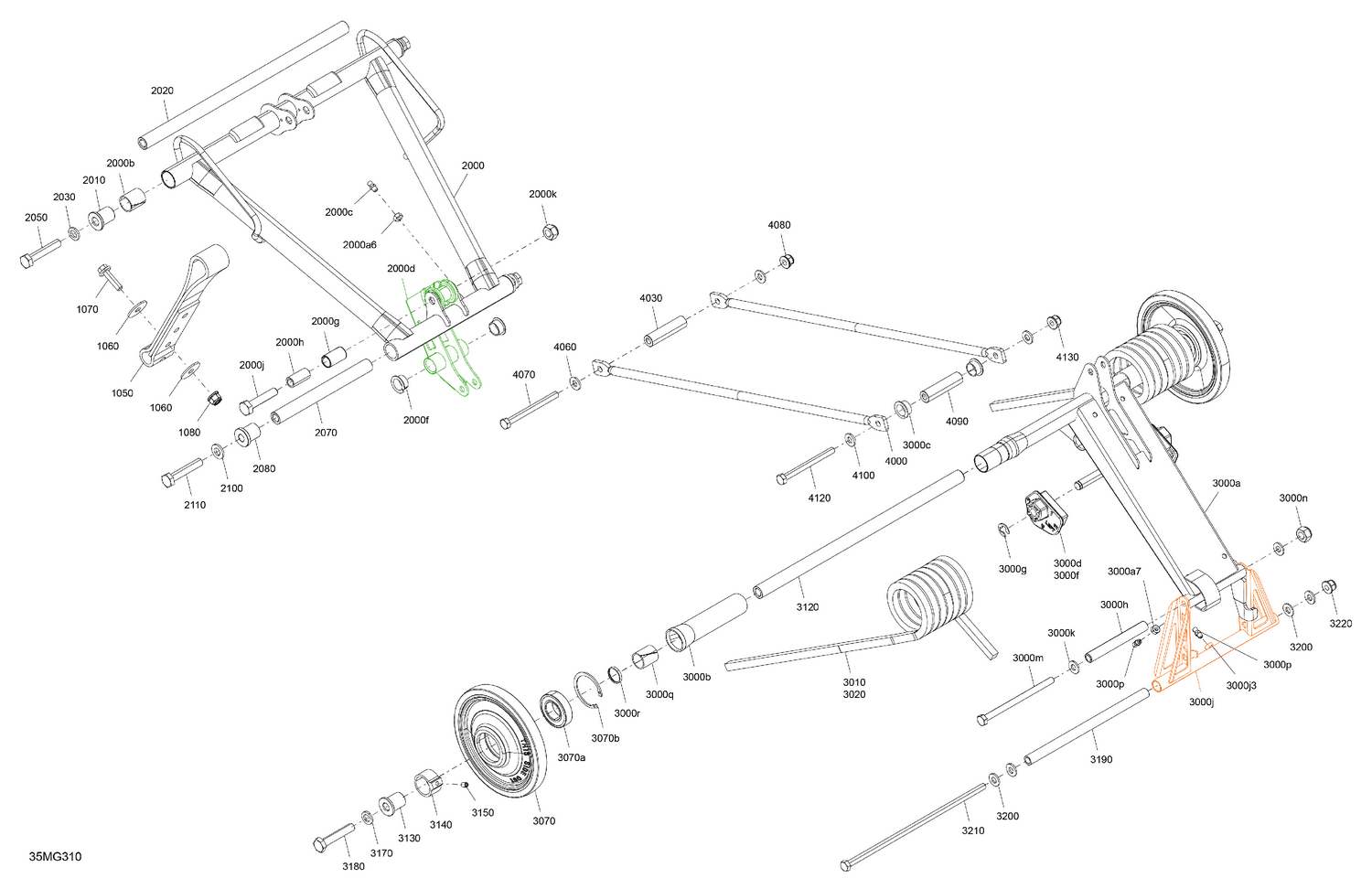

05- Suspension - Rear - Upper Section
Parts (57)
| Ref | Part Number | Description |
|---|---|---|
| 1050 | 503195313 | Stopper Strap |
| 1060 | 503193995 | Washer |
| 1070 | 207663056 | Hex. Flange Screw M6 X 1.0 X 30 |
| 1080 | 233261466 | Hex. Flange Elastic Nut M6 |
| 2000a6 | 232061404 | Hexagonal Nut M6 |
| 2000b | 503191556 | Extended Bushing |
| 2000c | 408200700 | Grease Fitting |
| 2000d | 503195833 | Rocker |
| 2000f | 503191555 | Swivel Bushing |
| 2000g | 503193037 | Bushing |
| 2000h | 503189282 | Bushing |
| 2000j | 207005044 | Hex. Screw M10 X 1.5 X 50 |
| 2000k | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 2010 | 503191262 | Bushing |
| 2020 | 503191215 | Upper Shaft |
| 2030 | 503191926 | Washer |
| 2050 | 250001365 | Hex. Threadlock Screw M10 X 55 |
| 2070 | 503191279 | Lower Shaft |
| 2080 | 503189324 | Bushing |
| 2100 | 503192496 | Washer |
| 2110 | 250000605 | Hex. Screw S.Grip M10 X 55 |
| 3000a7 | 232061404 | Hexagonal Nut M6 |
| 3000b | 572080700 | Bushing |
| 3000c | 503191555 | Swivel Bushing |
| 3000d | 503191565 | LH Cam Adjuster |
| 3000f | 503191566 | RH Cam Adjuster |
| 3000g | 293370013 | E-Circlip |
| 3000h | 503144300 | Upper Axle, Pivot Arm |
| 3000j3 | 232061404 | Hexagonal Nut M6 |
| 3000k | 503192494 | Washer |
| 3000m | 732601197 | Bolt M8, Short |
| 3000n | 232581414 | Hex. Elastic Stop Nut M8 |
| 3000p | 408200700 | Grease Fitting |
| 3000q | 503191556 | Extended Bushing |
| 3000r | 503191651 | Washer |
| 3010 | 503193158 | Black, LH Spring Square |
| 3020 | 503193159 | Black, RH Spring Square |
| 3070a | 503193548 | Ball Bearing |
| 3070b | 415129780 | Retaining Ring |
| 3120 | 503191215 | Upper Shaft |
| 3130 | 503191262 | Bushing |
| 3140 | 503194366 | Retaining Ring |
| 3150 | 206260844 | Socket Set Screw M6 X 8 |
| 3170 | 250200143 | Flat Washer |
| 3180 | 250001365 | Hex. Threadlock Screw M10 X 55 |
| 3190 | 503189156 | Pivot Arm Axle |
| 3200 | 503192494 | Washer |
| 3210 | 503192440 | Bolt M8 X 248mm |
| 3220 | 233281466 | Elastic Flange Nut M8 |
| 4000 | 503196035 | Linkage Rod |
| 4030 | 503190643 | Axle Bar (Long) |
| 4060 | 503192494 | Washer |
| 4070 | 503193372 | Screw M8 X 90 |
| 4080 | 233281466 | Elastic Flange Nut M8 |
| 4090 | 503190643 | Axle Bar (Long) |
| 4100 | 503192494 | Washer |
| 4120 | 503193372 | Screw M8 X 90 |
