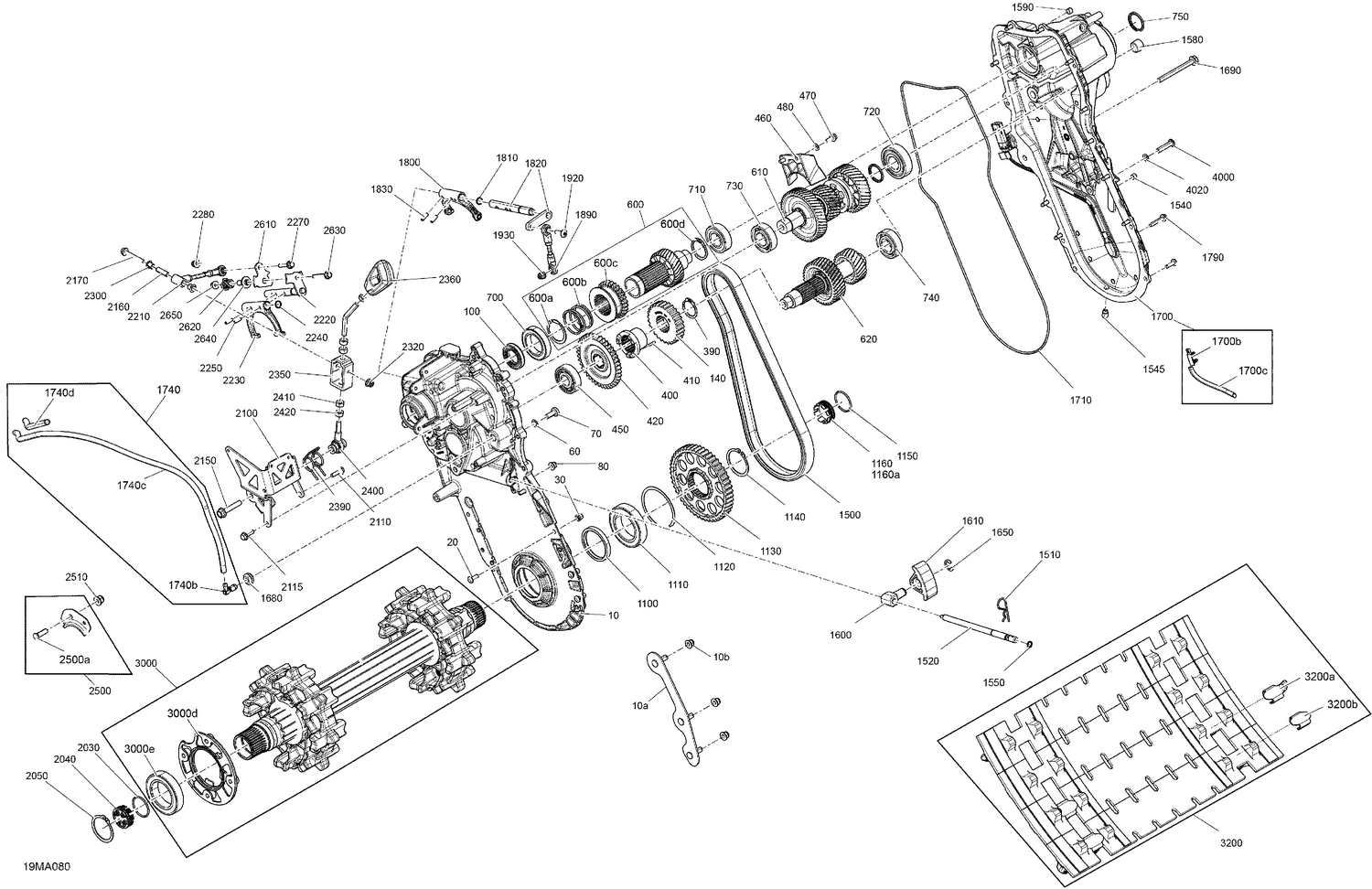

| Ref | Part Number | Description |
|---|
| 10a |
504154136 |
Plate Ass'y |
| 10b |
233261434 |
Flange Elastic Nut M6 |
| 20 |
293150148 |
Rivet Magna-Grip 6,4 X 50,8 |
| 30 |
293150149 |
Collar Huck Magna-Grip 6.4 |
| 60 |
504082900 |
Washer |
| 70 |
250000740 |
Torx Screw M8 X 20, Scotch Grip |
| 80 |
233261434 |
Flange Elastic Nut M6 |
| 100 |
293200168 |
Oil Seal |
| 140 |
504153666 |
Sprocket 27 Teeth |
| 390 |
293370133 |
External Snap Ring |
| 400 |
504153650 |
Sleeve Coupling |
| 410 |
570048600 |
Alignement Rod |
| 420 |
504154003 |
Gear Straight 41 Teeth Ass'y |
| 450 |
293350131 |
Ball Bearing |
| 460 |
504153793 |
Oil Deflector |
| 470 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 480 |
234061410 |
Flat Washer 6 mm |
| 600a |
293370055 |
Circlip |
| 600b |
504153690 |
Spring Return |
| 600c |
504153502 |
Sliding Gear 27 Teeth Machined |
| 600d |
293370183 |
External Retaining Ring |
| 610 |
504154126 |
Shaft Gearbox Selection Ass'y |
| 620 |
504154127 |
Shaft Gearbox Out Ass'y |
| 700 |
293350053 |
Ball Bearing |
| 710 |
293350115 |
Ball Bearing |
| 720 |
293350117 |
Ball Bearing |
| 730 |
504153165 |
Ball Bearing |
| 740 |
504153165 |
Ball Bearing |
| 750 |
504154145 |
Cap |
| 1100 |
293200159 |
Oil Seal |
| 1110 |
293350059 |
Ball Bearing |
| 1120 |
504152582 |
Circlip |
| 1130 |
504153996 |
Sprocket 49 Teeth |
| 1140 |
504152572 |
Circlip |
| 1150 |
293300201 |
O-Ring |
| 1160a |
504154043 |
Cap |
| 1500 |
504152570 |
Drive Chain 100 Links |
| 1510 |
414575600 |
Hair Pin |
| 1520 |
504153627 |
Adjustment Screw |
| 1540 |
250500013 |
Hex. Countersunk Drain Plug This part replaces 250500012. |
| 1545 |
504153704 |
Magnetic Plug |
| 1550 |
293300202 |
O-Ring |
| 1580 |
267000469 |
Black, Plastic Plug |
| 1590 |
250500013 |
Hex. Countersunk Drain Plug This part replaces 250500012. |
| 1600 |
504153559 |
Tensioner |
| 1610 |
504153312 |
Slider Chain |
| 1650 |
293370105 |
Circlip |
| 1680 |
414036300 |
Grommet |
| 1690 |
207588544 |
Hex. Flange Screw M8 X 85, Scotch Grip |
| 1700b |
515178223 |
Clip Connector |
| 1700c |
415130141 |
Braided Sleeve |
| 1710 |
293300288 |
O-Ring Seal This part replaces 293300197. |
| 1740b |
414580700 |
Male Connector |
| 1740c |
219704410 |
Polyurethane Hose 10000Mm Long |
| 1740d |
503195447 |
Protector Tube |
| 1790 |
250001015 |
Hex. Flange Screw M6 X 35 |
| 1800 |
504154097 |
Fork Ass'y |
| 1810 |
293300202 |
O-Ring |
| 1820 |
504154099 |
Reverse Axle |
| 1830 |
250400045 |
Spring Pin M5 X 16 |
| 1890 |
504153658 |
Ball Joint |
| 1920 |
207361644 |
Hex. Screw M6 X 16, Scotch Grip |
| 1930 |
233261434 |
Flange Elastic Nut M6 |
| 2030 |
293300201 |
O-Ring |
| 2040 |
504154043 |
Cap |
| 2050 |
504152572 |
Circlip |
| 2100 |
504153662 |
Speed Selector Support |
| 2110 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip |
| 2115 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip |
| 2150 |
207584544 |
Hex. Flange Screw M8 X 45, Scotch Grip |
| 2160 |
504153648 |
Spacer |
| 2170 |
207664544 |
Hex. Flange Screw M6 X 45 |
| 2210 |
504154245 |
Actuating Rod Ass'y This part replaces 504153593. |
| 2220 |
504154100 |
Axle Fork |
| 2230 |
504154101 |
Fork |
| 2240 |
293300202 |
O-Ring |
| 2250 |
250400045 |
Spring Pin M5 X 16 |
| 2270 |
207563034 |
Hex. Flange Screw M6 X 30, Scotch Grip |
| 2280 |
233261434 |
Flange Elastic Nut M6 |
| 2300 |
504153735 |
Bushing |
| 2320 |
233261434 |
Flange Elastic Nut M6 |
| 2350 |
504153664 |
Extrusion |
| 2360 |
504154138 |
Lever & Rod Ass'y |
| 2390 |
504153984 |
Lever Arm Spring |
| 2400 |
504153977 |
Ball Joint |
| 2410 |
232081414 |
Hex. Nut M8 |
| 2420 |
232081414 |
Hex. Nut M8 |
| 2500a |
250300028 |
Clinch Stud, M8 X 25 |
| 2510 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 2610 |
504153980 |
Plate |
| 2620 |
707000310 |
Spring |
| 2630 |
207664044 |
Hex. Flange Screw M6 X 40 |
| 2640 |
504153981 |
Sapcer |
| 2650 |
233261434 |
Flange Elastic Nut M6 |
| 3000d |
504153886 |
Retaining Ring |
| 3000e |
293350059 |
Ball Bearing |
| 3200a |
415129528 |
Track Guide |
| 3200b |
504152651 |
Cleat |
| 4000 |
250000764 |
Hex. Button Head Screw M8 X 1.25 X 35 |
