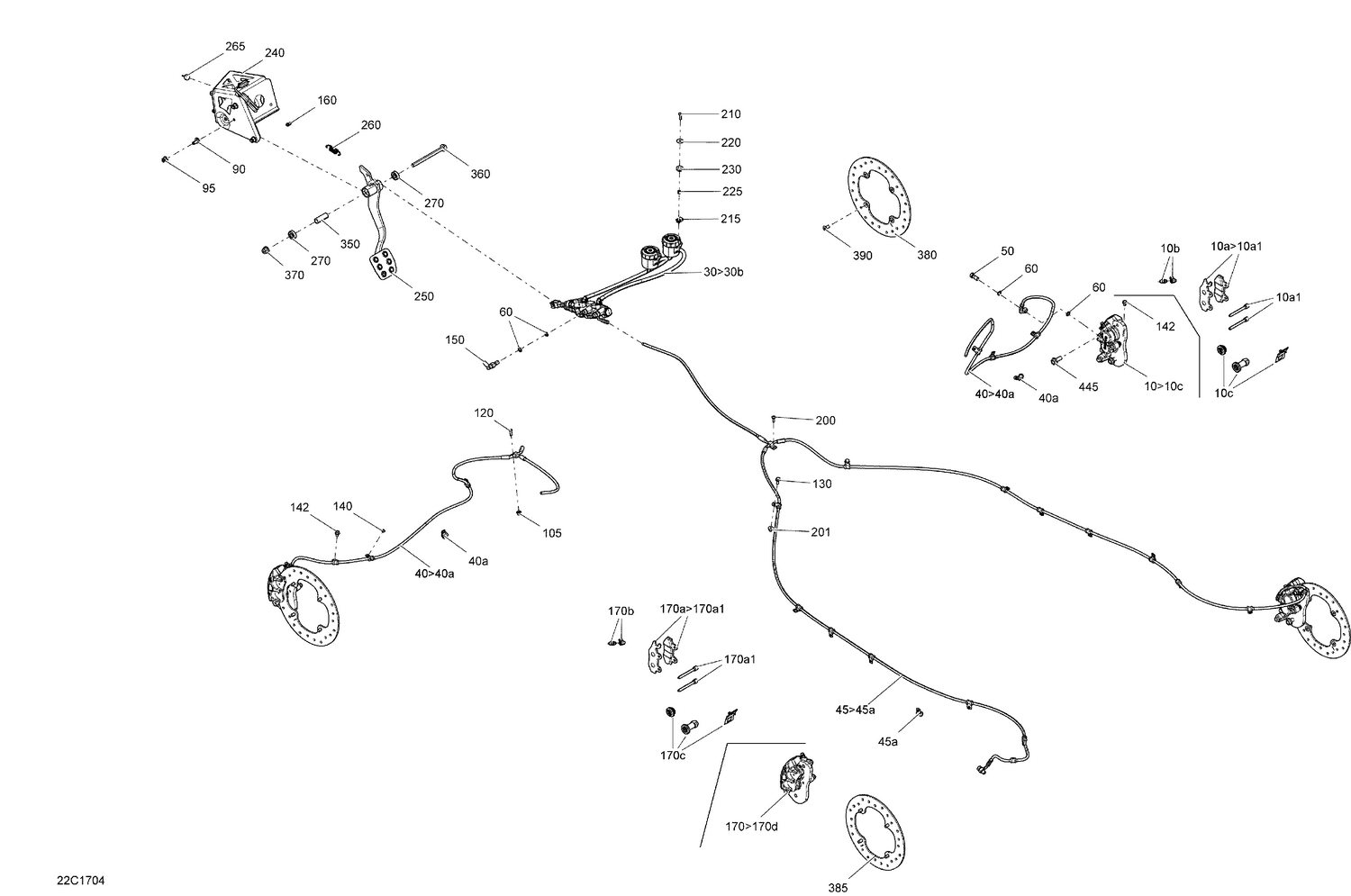

06- Brakes — Parts Catalog

Ref	Part Number	Description
10a1	715900384	Pin Kit
10b	705601017	Bleeding Screw
10c	715900385	Cap Spring Kit
30a	705601020	Oil Tank
30b	705601019	Oil Housing Hose
50	705600609	Banjo Bolt (M10 x 1.25 thread)
60	705601628	Copper Washer This part replaces 705600310.
90	207682534	Hex. Flange Screw M8 X 25
95	233281414	Hex. Flange Elastic Nut M8
105	250100242	Threaded Insert M6 X 1.0 This part replaces 293450274.
120	235661644	Torx Screw M6 X 16
130	207661644	Hex. Flange Screw M6 X 16
140	390402200	Pop Rivet 3/16"
142	210261040	Hex. Flange Screw M6 X 10
150	705601250	Brake Switch
160	293750002	Tie Wrap 142 mm
170a1	715900384	Pin Kit
170b	705601017	Bleeding Screw
170c	715900385	Cap Spring Kit
200	250000720	Torx Screw K50 X 16
201	233261414	Hex. Flange Elastic Nut M6 x 1.0
210	250000724	Torx Screw M5 X 20
215	250000958	Panel Nut M5 X 0.8 This part replaces 250000079.
220	224060201	Flat Washer
225	293900112	Bushing
230	414036300	Grommet
240	705207621	Brake Support Plate Ass'y This part replaces 705205301.
250	705601453	Brake Pedal
260	705600792	Brake Pedal Spring
265	708000759	Rubber Stopper
270	705600458	Bearing
350	705601275	Bushing
360	230603046	Hex. Flange Screw, M10 X 130
370	233201436	Hex. Flange Elastic Nut M10
380	705601841	Front Disc Brake This part replaces 705601533.
385	705601376	Brake Disc
390	235381646	Torx Screw M8 X 16, Scotch Grip
