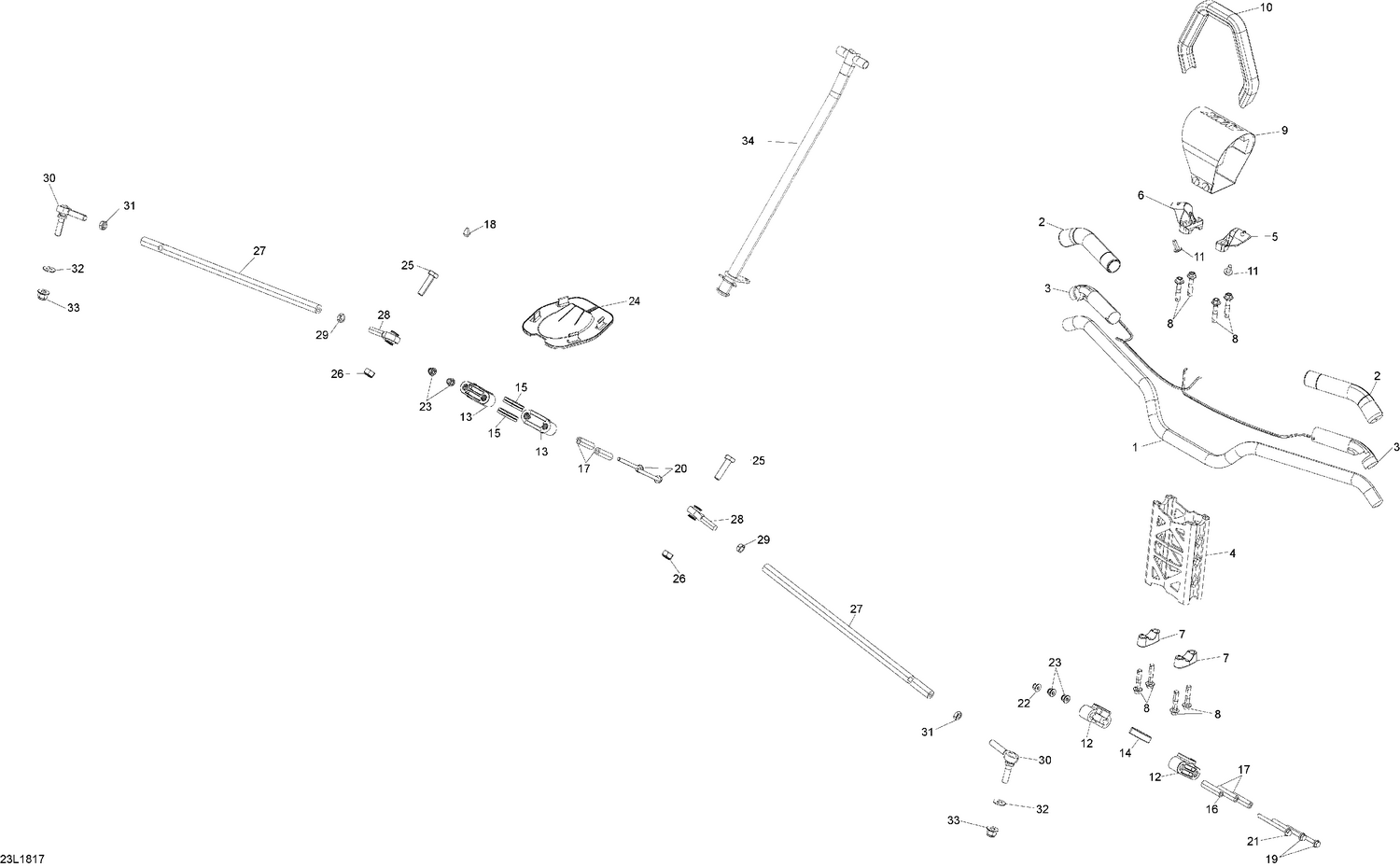

07- Steering 49 Ranger - 600 ACE
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 506152762 | Handle Bar |
| 2 | 506152483 | Grip |
| 3 | 506152428 | Heated Film, 25W |
| 5 | 506152942 | LH Support |
| 6 | 506152943 | RH Support |
| 7 | 506152751 | Steering Support This part replaces 506152750. |
| 8 | 250000352 | Hex. Flange Screw M8 X 40 |
| 9 | 506152649 | Steering Pad |
| 10 | 506152460 | Moulding Strap |
| 11 | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 12 | 506152508 | Upper Half-Housing |
| 13 | 506152217 | Lower Half-Housing |
| 14 | 506152509 | Upper Anti-Vibration Gasket |
| 15 | 506152518 | Lower Vibration Ring |
| 16 | 506152297 | Housing Bushing |
| 17 | 506152297 | Housing Bushing |
| 18 | 293550033 | SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership |
| 19 | 207667056 | Hex. Flange Screw M6 x 70 This part replaces 207667086. |
| 20 | 207667056 | Hex. Flange Screw M6 x 70 This part replaces 207667086. |
| 21 | 207667056 | Hex. Flange Screw M6 x 70 This part replaces 207667086. |
| 22 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 23 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 24 | 506152163 | Plate |
| 25 | 207004044 | Hex. Screw M10 X 40 |
| 26 | 232500416 | Elastic Stop Nut M10 |
| 32 | 506152582 | Washer |
| 33 | 233201464 | Hex. Elast. Flanged Nut M10 x 1.5 |
