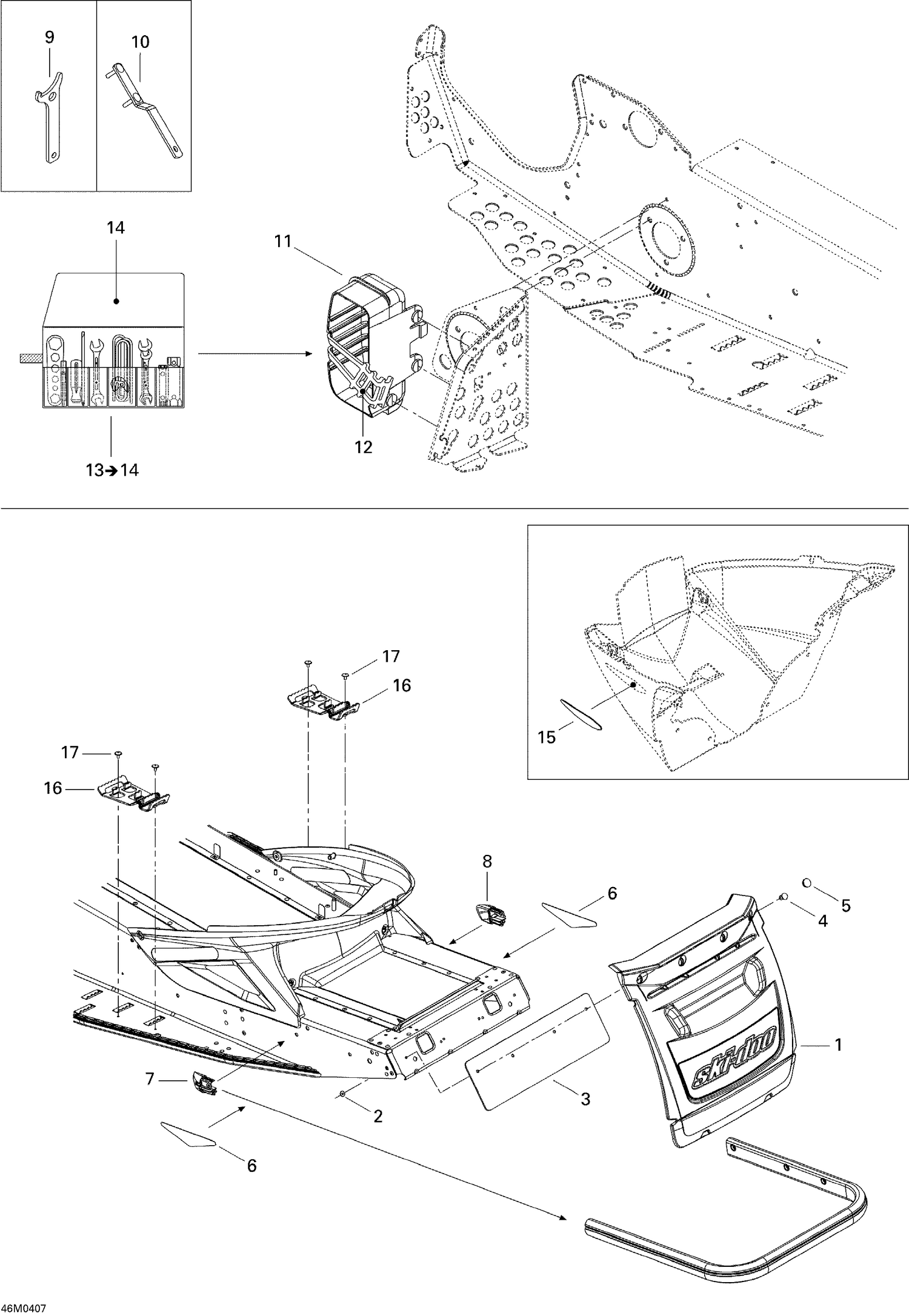

09- Utilities
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 520000396 | Snow Guard |
| 2 | 517225900 | Flat Washer |
| 3 | 520000423 | SNOW GUARD REINFORCEMENT - Call your local BRP dealership |
| 4 | 390906800 | Pop Rivet 3/16" |
| 5 | 277000203 | Black, Cap |
| 6 | 520000237 | REAR REFLECTOR, RED - Call your local BRP dealership |
| 7 | 520000397 | LH CAP - Call your local BRP dealership |
| 8 | 520000398 | RH CAP - Call your local BRP dealership |
| 9 | 529000035 | Adjustment Wrench This part replaces 529032900. |
| 10 | 520000126 | Adjustment Wrench |
| 11 | 520000322 | TRUNK - Call your local BRP dealership |
| 12 | 570069700 | LATCH - Call your local BRP dealership |
| 13 | 529035596 | Tool Kit |
| 14 | 520000047 | Tool Bag |
| 15 | 516001336 | FRONT REFLECTOR - Call your local BRP dealership |
