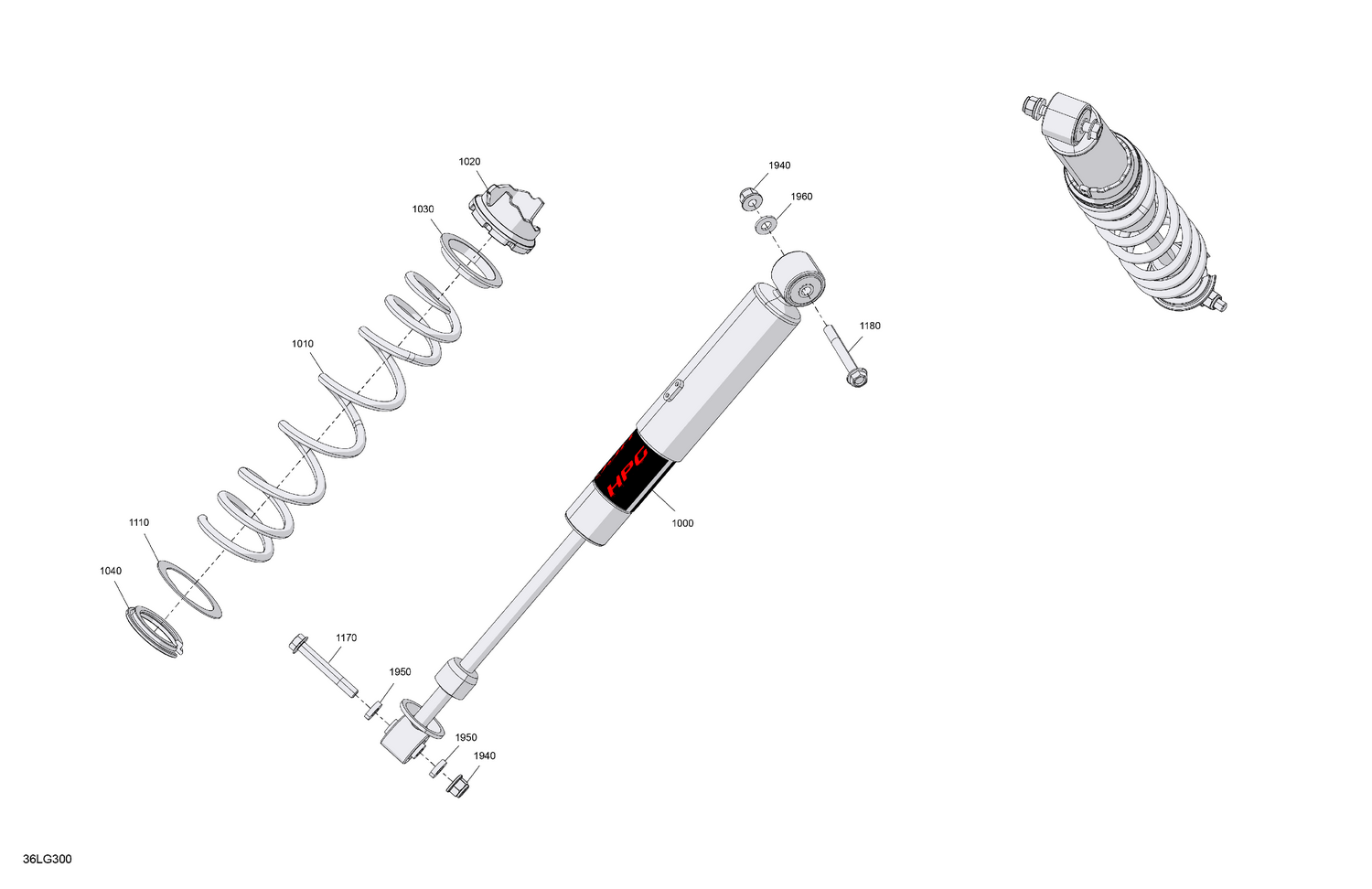

05- Suspension - Front Shocks
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1000 | 505075423 | Front Shock Absorber HPG |
| 1010 | 505075530 | Compression Spring This part replaces 505074309. |
| 1020 | 505073625 | Adjustment Cam |
| 1030 | 505074995 | Spring Guide |
| 1040 | 503194270 | Spring Stopper |
| 1110 | 505073150 | Washer |
| 1170 | 250000824 | Hexagonal Flange Screw M8 X 58 |
| 1180 | 250000824 | Hexagonal Flange Screw M8 X 58 |
| 1940 | 233281466 | Elastic Flang Nut M8 |
| 1950 | 505073892 | Spacer |
