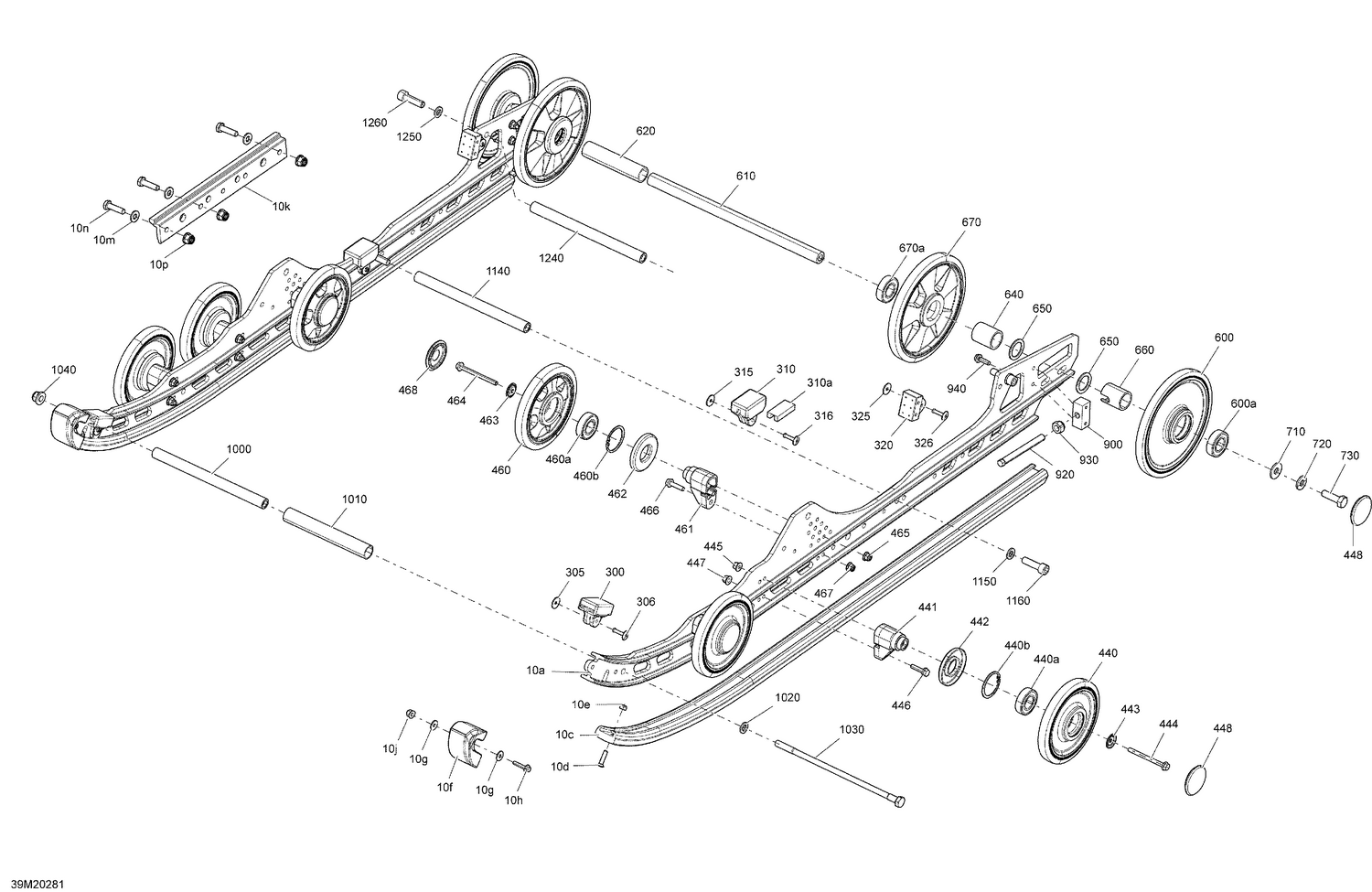

08- Suspension, Rear - Lower Section
Parts (58)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 503193902 | Bare, Runner 128" |
| 10c | 503193962 | Slider 128" |
| 10d | 208562531 | Phillips Screw M6 X 25 |
| 10e | 232561414 | Elastic Stop Nut M6 |
| 10f | 503196873 | Rail Protector This part replaces 503192530. |
| 10g | 250200140 | Washer |
| 10h | 207652544 | Hex. Flange Screw M5 X 25 |
| 10j | 233251434 | Flange Elastic Nut M5 |
| 10k | 503193726 | Black Reinforcement Runner |
| 10m | 503192494 | Washer |
| 10n | 207183054 | Hex. Cap Screw M8 X 30 |
| 10p | 233281466 | Elastic Flange Nut M8 |
| 300 | 503190576 | Rubber Stopper |
| 305 | 503191273 | Washer |
| 306 | 293150224 | Pop Rivet 3/16 |
| 310a | 572084800 | Reinforcement Stopper |
| 315 | 503191273 | Washer |
| 316 | 293150013 | Pop Rivet 3/16" |
| 320 | 503192750 | Rubber Stopper |
| 325 | 503191273 | Washer |
| 326 | 293150224 | Pop Rivet 3/16 |
| 440a | 503190396 | Ball Bearing |
| 440b | 415129371 | Retaining Ring |
| 441 | 503193894 | Casted Support |
| 442 | 503190434 | Labyrinth Seal |
| 443 | 503191820 | Wheel Cup M6 |
| 444 | 250000944 | Hex. Flange Screw M6 X 70 |
| 445 | 233261466 | Hex. Flange Elastic Nut M6 |
| 446 | 250000945 | Hex. Flange Screw M6 X 25 |
| 447 | 233261466 | Hex. Flange Elastic Nut M6 |
| 448 | 503192771 | Black, Wheel Cap |
| 460a | 503190396 | Ball Bearing |
| 460b | 415129371 | Retaining Ring |
| 461 | 503193894 | Casted Support |
| 462 | 503190434 | Labyrinth Seal |
| 463 | 503191820 | Wheel Cup M6 |
| 464 | 250000944 | Hex. Flange Screw M6 X 70 |
| 465 | 233261466 | Hex. Flange Elastic Nut M6 |
| 466 | 250000945 | Hex. Flange Screw M6 X 25 |
| 467 | 233261466 | Hex. Flange Elastic Nut M6 |
| 468 | 503192771 | Black, Wheel Cap |
| 600a | 293350115 | Ball Bearing |
| 670a | 293350115 | Ball Bearing |
| 900 | 503193808 | Tensioner |
| 920 | 230100054 | Hex Screw M10 x 100 |
| 930 | 233601466 | Elastic Locking Nut M10 |
| 940 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 1000 | 503193435 | Pivot Axle |
| 1010 | 503189265 | Spacer |
| 1020 | 250200143 | Flat Washer |
| 1030 | 503193227 | Bolt M10 X 251MM |
| 1040 | 233201466 | Flange Elastic Nut M10 |
| 1140 | 503191260 | Axle Strap |
| 1150 | 503192496 | Washer |
| 1160 | 205503554 | Socket Head Screw M10 X 35 |
| 1240 | 503191260 | Axle Strap |
| 1250 | 503192496 | Washer |
| 1260 | 205503554 | Socket Head Screw M10 X 35 |
