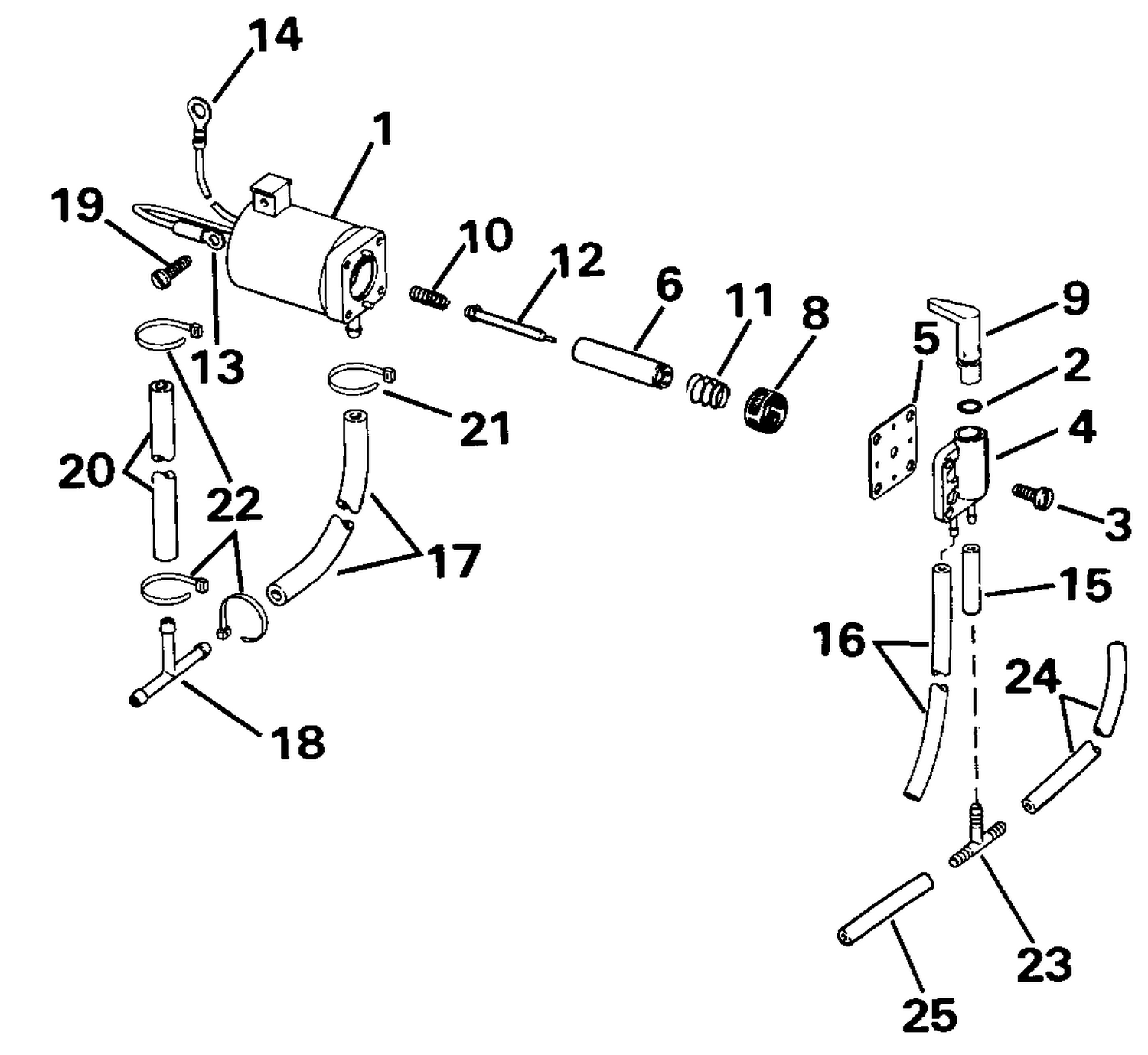

| Ref | Part Number | Description |
|---|
| 1 |
5007356 |
Kit Ay This part replaces 0397909. |
| 4 |
0511807 |
COVER&GASKET AY |
| 5 |
0333488 |
GASKET, Solenoid |
| 15 |
HOSE, |
Primer to tee, 21/4 in. (57mm) |
| 16 |
HOSE, |
Solenoid to bypass cover 16 in. (406mm) |
| 17 |
HOSE, |
Tee to primer, 3 in. (76mm) |
| 19 |
0329182 |
VIS, borne |
| 20 |
HOSE, |
Tee to carb., 6 1/4 in. (159mm) |
| 21 |
0336259 |
EXH. HOUSING, Inner This part replaces 0327893. |
| 22 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 23 |
0325569 |
T, amorçage |
| 24 |
HOSE, |
Tee to carb. 8 in. (203mm) |
