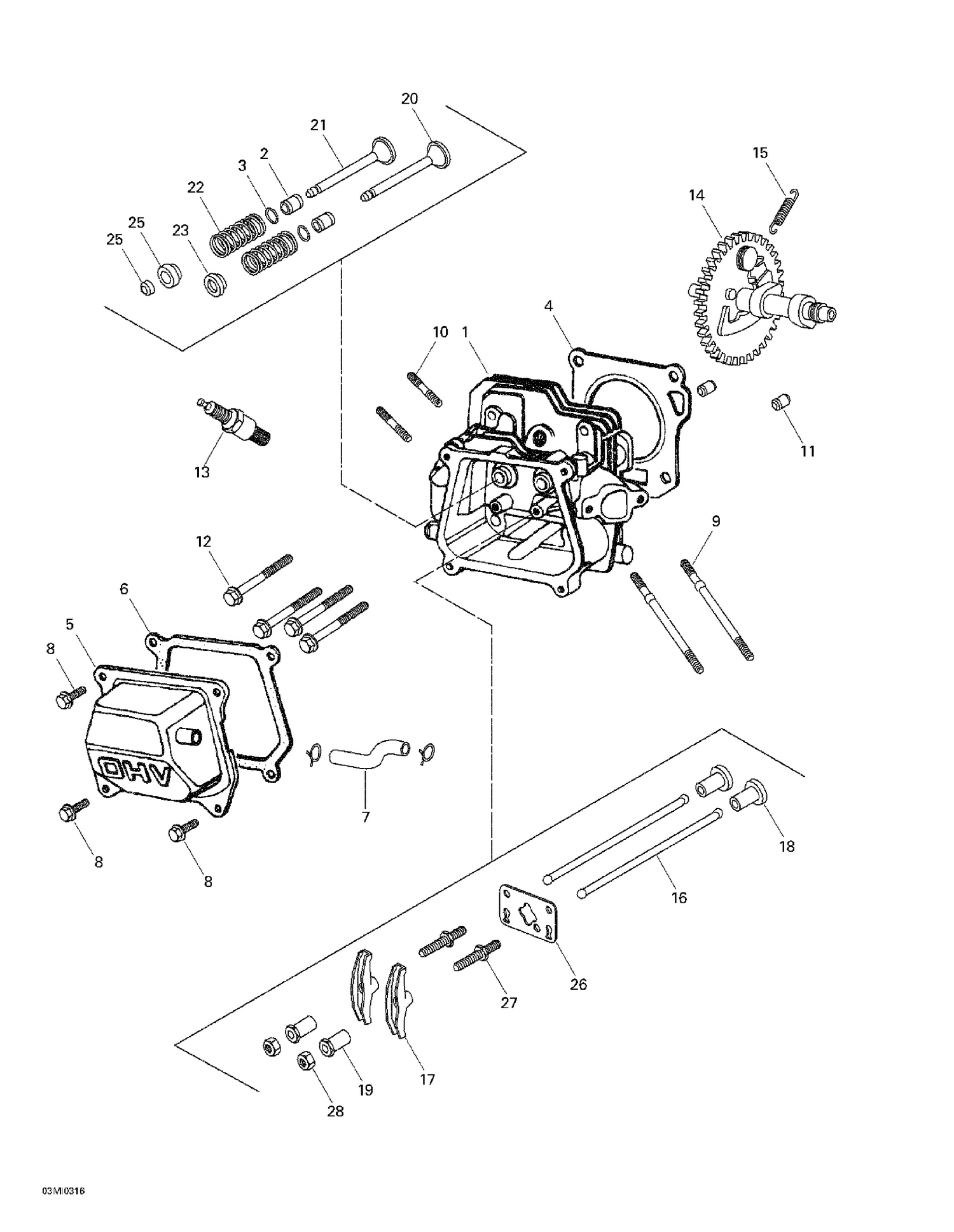

01- Cylinder Head, Camshaft
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 2 | H12204ZE1306 | Valve Guide (Intake) |
| 3 | H12216ZE5300 | Circlip |
| 4 | H12251ZH7800 | Gasket |
| 5 | H12310ZE1000 | Head Cover |
| 6 | H12391ZE1000 | Packing |
| 7 | H15721ZH8000 | Breather Tube |
| 8 | H90013883000 | Screw |
| 9 | H90043ZE1020 | Stud |
| 10 | H90047ZE1000 | Stud 8 x 32 |
| 11 | H9430110160 | Dowel Pin 10 x 16 |
| 12 | H957230805500 | Screw 8 x 55 |
| 13 | 415129515 | SPARK PLUG NGK BPR6ES - Call your local BRP dealership This part replaces 415127694. |
| 15 | H14568ZE1000 | Spring |
| 16 | H14410ZE0010 | Push Rod |
| 17 | H14431ZE1000 | Valve Rocker Arm |
| 18 | H14441ZE1010 | Valve Lifter |
| 19 | H14451ZE1013 | Rocker Arm Pivot |
| 20 | H14711ZF0000 | Intake Valve |
| 21 | H14721ZF0000 | Exhaust Valve |
| 22 | H14751ZF1000 | Valve Spring |
| 23 | H14771ZE1000 | Retainer (Intake) |
| 24 | H14773ZE1000 | Retainer (Exhaust) |
| 25 | H14781ZE1000 | Valve Rotator |
| 26 | H14791ZE0010 | Plate |
| 27 | H90012ZE0010 | Pivot Bolt 8 mm |
| 415127693 | Spark | Plug (NGK BPR5ES) 415127693 |
