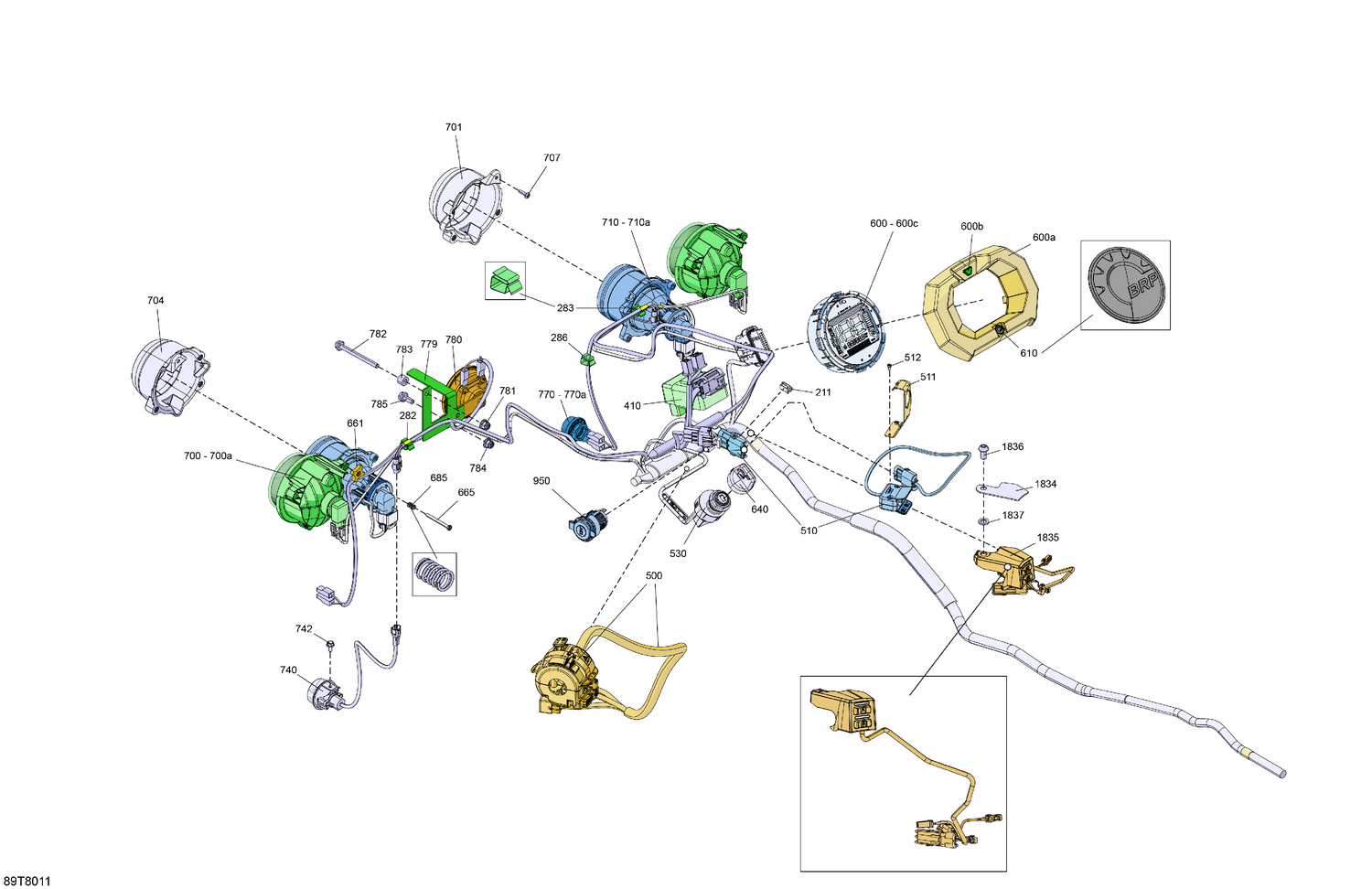

08- Electric - Front Section
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 211 | 710000992 | Clip |
| 282 | 414227300 | Clip |
| 283 | 414227300 | Clip |
| 286 | 414227300 | Clip |
| 410 | 710003239 | Flasher Unit |
| 500 | 710004040 | Multi-Function Handle |
| 510 | 710005241 | Winch Switch |
| 511 | 710002631 | Winch Switch Support |
| 512 | 250000153 | Hex. Cap Screw 6-32 X 1/4" |
| 530 | 710007865 | Switch_Ignition This part replaces 710004570. |
| 600b | 710001473 | Button |
| 600c | 415129320 | Lens |
| 610 | 704904615 | BRP Logo13 mm |
| 640 | 710002183 | Grey, Electronic Key |
| 661 | 572106600 | Handle |
| 665 | 250000718 | Hex. Screw K40 X 45 |
| 685 | 517168600 | Spring |
| 700a | 715900141 | Bulb 12V 55W |
| 701 | 710002291 | RH High Front Housing |
| 704 | 710002292 | LH High Front Housing |
| 707 | 250000723 | Phillips Screw K40 X 16 |
| 710a | 415129249 | Halogen Bulb |
| 740 | 710002964 | Flasher |
| 742 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 770a | 710003269 | Cap Protector |
| 779 | 710006113 | Horn Support |
| 780 | 710004791 | Horn |
| 781 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 782 | 207667044 | Hex. Flange Screw M6 X 70 |
| 783 | 708001129 | Bushing |
| 784 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 785 | 207661644 | Hex. Flange Screw M6 X 16 |
