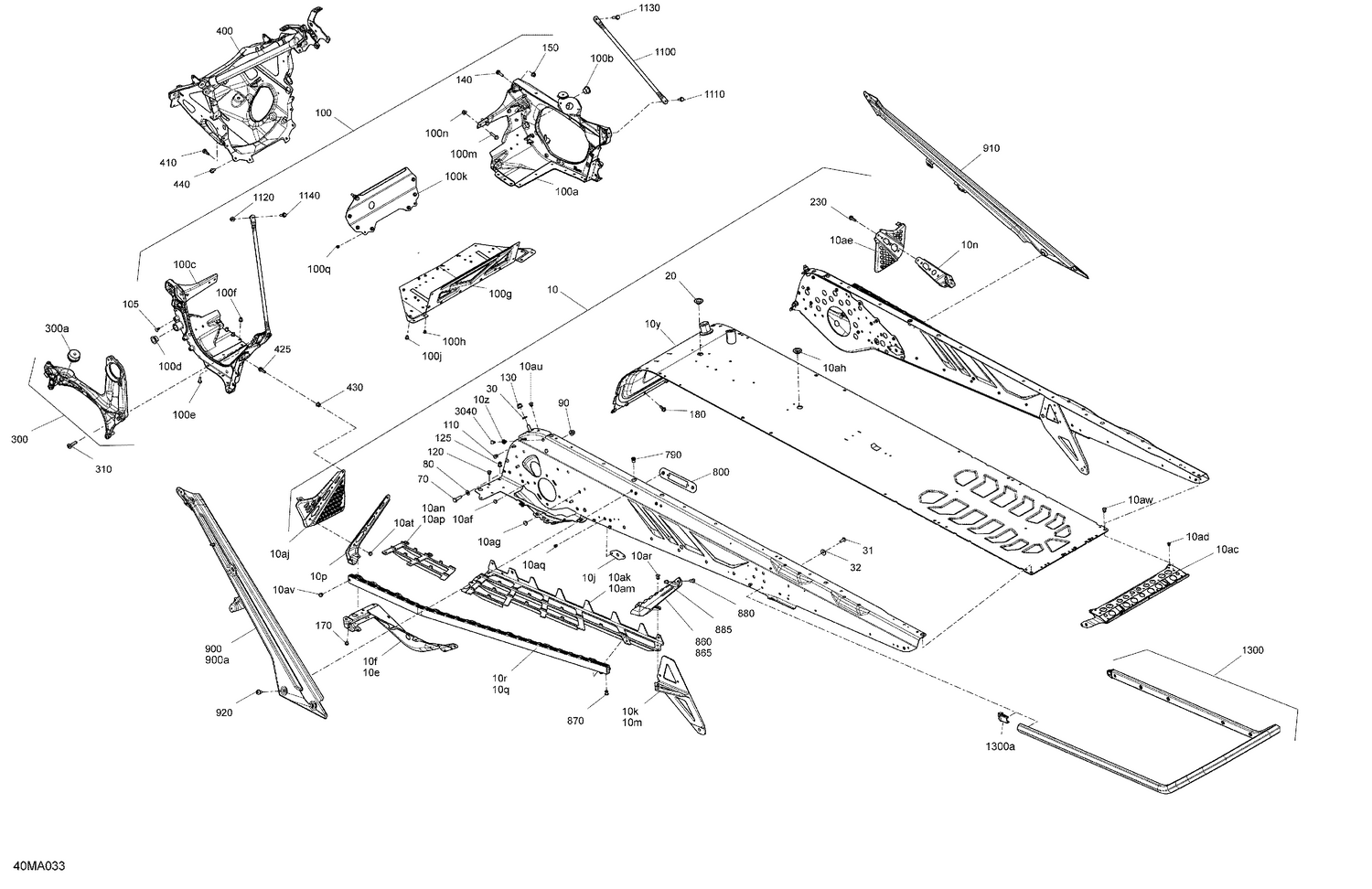

| Ref | Part Number | Description |
|---|
| 10ac |
518331704 |
Rear Cap Ass'y |
| 10ad |
293150203 |
Rivet Avibulb 3/16 |
| 10ae |
518328460 |
RH Footrest |
| 10af |
293730047 |
Black, Dart 8 mm |
| 10ag |
293730060 |
Black, Dart 10 mm |
| 10ah |
293730052 |
Black, Plug |
| 10aj |
518333007 |
LH Footrest This part replaces 518331556. |
| 10ak |
518330960 |
LH Rear Perforated Footstep |
| 10am |
518330962 |
Footstep R Rh Perforated |
| 10an |
518330385 |
LH Front Driver Footrest |
| 10ap |
518330388 |
RH Front Driver Footrest |
| 10aq |
293150203 |
Rivet Avibulb 3/16 |
| 10ar |
293150183 |
Rivet |
| 10at |
293150096 |
Hemlock Rivet, 6.5 mm |
| 10au |
293150119 |
Hemlock Rivet, 6.5 mm |
| 10av |
293150174 |
Hemlock Rivet, 6.4 mm |
| 10aw |
293150266 |
Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 10e |
518332576 |
RH Footrest Reinforcement |
| 10f |
518332575 |
LH Footrest Reinforcement |
| 10j |
518326647 |
Reinforcement Plate |
| 10k |
518328828 |
RH Suspension Bracket Rear |
| 10m |
518328830 |
LH Suspension Bracket Rear |
| 10n |
518331253 |
Stirrup Reinforcement |
| 10p |
518331560 |
Deep Black, LH Chasssis Reinforcement |
| 10q |
518328737 |
RH Roller |
| 10r |
518328738 |
LH Roller |
| 10y |
518332556 |
Radiator Tunnel 175 Ass'y |
| 10z |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 20 |
293730052 |
Black, Plug |
| 30 |
234081410 |
Flat Washer 8 mm |
| 31 |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 32 |
224061201 |
Flat Washer |
| 70 |
250000942 |
Hex Screw M8 X 30 |
| 80 |
234081410 |
Flat Washer 8 mm |
| 90 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 100a |
518332687 |
RH Member Ass'y This part replaces 518331257. |
| 100b |
505072690 |
Leg Bushing |
| 100c |
518334599 |
LH Side Member Ass'y This part replaces 518331254. |
| 100d |
505072690 |
Leg Bushing |
| 100e |
293150148 |
Rivet Magna-Grip 6,4 X 50,8 |
| 100f |
293150149 |
Collar Huck Magna-Grip 6.4 |
| 100g |
518332716 |
Bottom Plate |
| 100h |
293150203 |
Rivet Avibulb 3/16 |
| 100j |
293450268 |
Insert M5 X 0.8 |
| 100k |
518330100 |
Front Member |
| 100m |
250000945 |
Hex. Flange Screw M6 X 25 |
| 100n |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 100q |
293150203 |
Rivet Avibulb 3/16 |
| 105 |
293730079 |
Dart |
| 110 |
293150266 |
Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 120 |
293150174 |
Hemlock Rivet, 6.4 mm |
| 125 |
293150120 |
Hemlock Rivet 6.5 mm |
| 130 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 140 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 150 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 170 |
293450267 |
Insert M5 - 0.8 |
| 180 |
207661646 |
Hex. Flange Screw M6 X 16 |
| 230 |
207562056 |
Hex. Flange Screw M6 X 20 |
| 300a |
512061516 |
Vibration Damper This part replaces 512060295. |
| 310 |
250001060 |
Screw-Pan HD.Torx M8X30 |
| 400 |
518334460 |
Chassis Suspension Module This part replaces 518330167. |
| 410 |
250001051 |
Screw-Forming Hex.HD.FL. M6 X 16 |
| 425 |
207562056 |
Hex. Flange Screw M6 X 20 |
| 430 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 440 |
207661636 |
Hex. Flange Screw M6 X 16 |
| 790 |
293450278 |
Insert |
| 800 |
518329480 |
Member Fixation Plate |
| 860 |
518329123 |
Black - LH Roller Link |
| 865 |
518329124 |
Black, RH Roller Link |
| 870 |
293150183 |
Rivet |
| 880 |
293150148 |
Rivet Magna-Grip 6,4 X 50,8 |
| 885 |
293150149 |
Collar Huck Magna-Grip 6.4 |
| 900a |
518330885 |
RH Rear Diagonal Cross Member |
| 910 |
518332558 |
Catalyst Gray, RH Rear Diag. Crossmember |
| 920 |
250000887 |
Pan Head Torx Screw M8 X 12 |
| 1100 |
518329974 |
Upper Colomn Support |
| 1110 |
207561646 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 1120 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 1130 |
207662556 |
Hex. Flange Screw M6 X 25 |
| 1140 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 1300a |
520001612 |
Cap |
