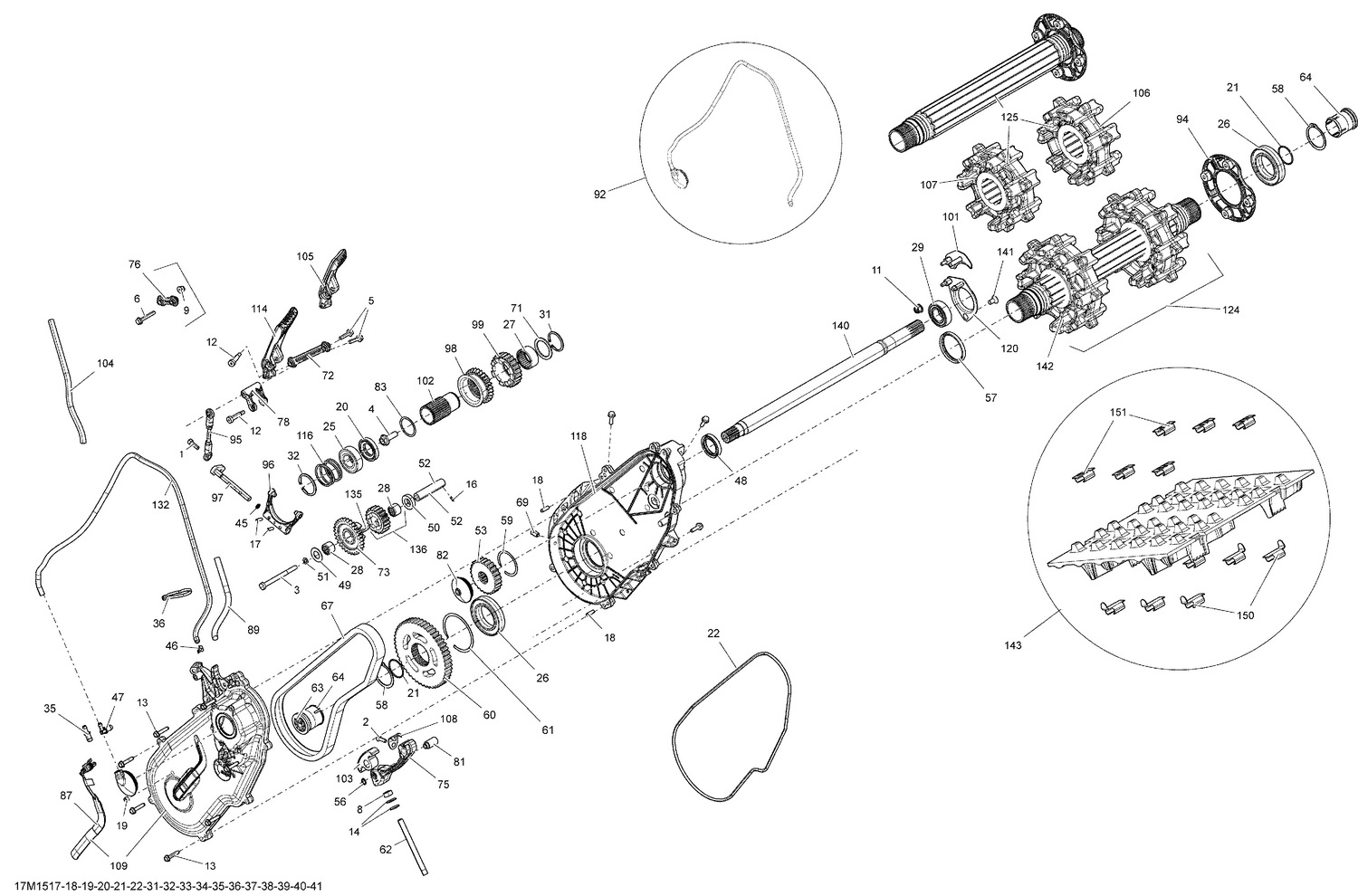

| Ref | Part Number | Description |
|---|
| 1 |
205562044 |
Socket Head Screw M6 X 20, Scotch Grip |
| 2 |
205862044 |
Socket Head Screw M6 X 20, Scotch Grip |
| 3 |
207089044 |
Hex. Screw M8 X 90 |
| 4 |
207503046 |
Hex. Flange Screw M10 X 30, Scotch Grip |
| 5 |
207562544 |
Hex. Flange Screw M6 X 25 |
| 6 |
XXX |
Not Available As Spare Parts |
| 8 |
232006414 |
Hex. Nut M10 X 1.5 |
| 9 |
XXX |
Not Available As Spare Parts |
| 11 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 12 |
250000340 |
SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP - Call your local BRP dealership |
| 13 |
250000360 |
Hex. Flange Screw M6 X 1.0 X 30 |
| 14 |
250200100 |
Bonded Washer |
| 16 |
250400010 |
Rolled Pin M3 X 10 |
| 17 |
250400045 |
Spring Pin M5 X 16 |
| 18 |
250400048 |
Dowel Pin |
| 19 |
250500013 |
Hex. Countersunk Drain Plug This part replaces 250500012. |
| 20 |
293200168 |
Oil Seal This part replaces 293250175. |
| 21 |
293300122 |
O-Ring |
| 22 |
293300130 |
Tight Seal |
| 23 |
XXX |
Not Available As Spare Parts |
| 25 |
293350115 |
Ball Bearing This part replaces 293350055. |
| 26 |
293350059 |
Ball Bearing |
| 27 |
293350063 |
Needle Bearing |
| 28 |
293350064 |
Needle Bearing |
| 29 |
293350074 |
Ball Bearing |
| 31 |
293370054 |
Circlip |
| 32 |
293370055 |
Circlip |
| 35 |
293710035 |
Straight Fitting |
| 36 |
414115200 |
Tie-Rap 180 mm |
| 45 |
414484400 |
O-Ring |
| 46 |
XXX |
Not Available As Spare Parts |
| 47 |
XXX |
Not Available As Spare Parts |
| 48 |
XXX |
Not Available As Spare Parts |
| 49 |
504077300 |
Spacer |
| 50 |
504078700 |
Ring |
| 51 |
504082900 |
Washer |
| 52 |
504083100 |
Reverse Shaft |
| 53 |
504152031 |
Sprocket, 19 Teeth |
| 56 |
504152282 |
Circlip |
| 57 |
293200159 |
Oil Seal This part replaces 504152571. |
| 58 |
504152572 |
Circlip |
| 59 |
504152576 |
Circlip |
| 60 |
861805538 |
Kit Sprocket This part replaces 504152593. |
| 61 |
504152582 |
Circlip |
| 62 |
504152602 |
Adjustment Screw |
| 63 |
504152619 |
Magnetic Cap |
| 64 |
504152619 |
Magnetic Cap |
| 67 |
504152579 |
Drive Chain, 102 Links |
| 69 |
504152636 |
Magnetic Plug 1/8 - 27 NPTF |
| 71 |
504152689 |
Washer |
| 72 |
504152710 |
Double Ball Joint |
| 73 |
504152724 |
Sprocket, 29 Teeth |
| 75 |
504153431 |
Chaine Tensionner This part replaces 504152748. |
| 76 |
XXX |
Not Available As Spare Parts |
| 78 |
504153427 |
Lever This part replaces 504152788. |
| 81 |
504152841 |
Tensioner Axle |
| 82 |
504152930 |
Cap |
| 83 |
504152862 |
Washer |
| 87 |
504152896 |
Rotation Sensor |
| 89 |
XXX |
Not Available As Spare Parts |
| 92 |
XXX |
Not Available As Spare Parts |
| 94 |
504153886 |
Retaining Ring This part replaces 504152949. |
| 95 |
504152951 |
Ball Joint |
| 96 |
504153432 |
Fork Ass'y This part replaces 504152954. |
| 97 |
504152956 |
Welded Axle Fork |
| 98 |
504152960 |
Slinding Gear, 27 Teeth |
| 99 |
XXX |
Not Available As Spare Parts |
| 101 |
XXX |
Not Available As Spare Parts |
| 102 |
504152979 |
Coupling |
| 103 |
504152739 |
Slider Chain |
| 104 |
504153074 |
Tube Protector |
| 105 |
504153082 |
Grip |
| 106 |
XXX |
Not Available As Spare Parts |
| 107 |
XXX |
Not Available As Spare Parts |
| 108 |
504153122 |
Chain Slider |
| 109 |
504153144 |
Chaincase Cover Ass'y |
| 114 |
XXX |
Not Available As Spare Parts |
| 116 |
504153179 |
Spring Release |
| 118 |
504153184 |
Chaincase |
| 120 |
504153187 |
Bearing Housing |
| 124 |
504154054 |
Drive Axle Ass'y This part replaces 504153083. |
| 125 |
XXX |
Not Available As Spare Parts |
| 132 |
219704410 |
Polyurethane Hose 10000Mm Long |
| 135 |
570048600 |
Alignement Rod |
| 136 |
581096900 |
Sprock Ass'y, 19 Teeth |
| 140 |
504153000 |
Countershaft |
| 141 |
235381646 |
Torx Screw M8 X 16, Scotch Grip |
| 142 |
XXX |
Not Available As Spare Parts |
| 143 |
504152907 |
Track Ass'y, 16X137X1.2C |
| 150 |
415129528 |
Track Guide |
