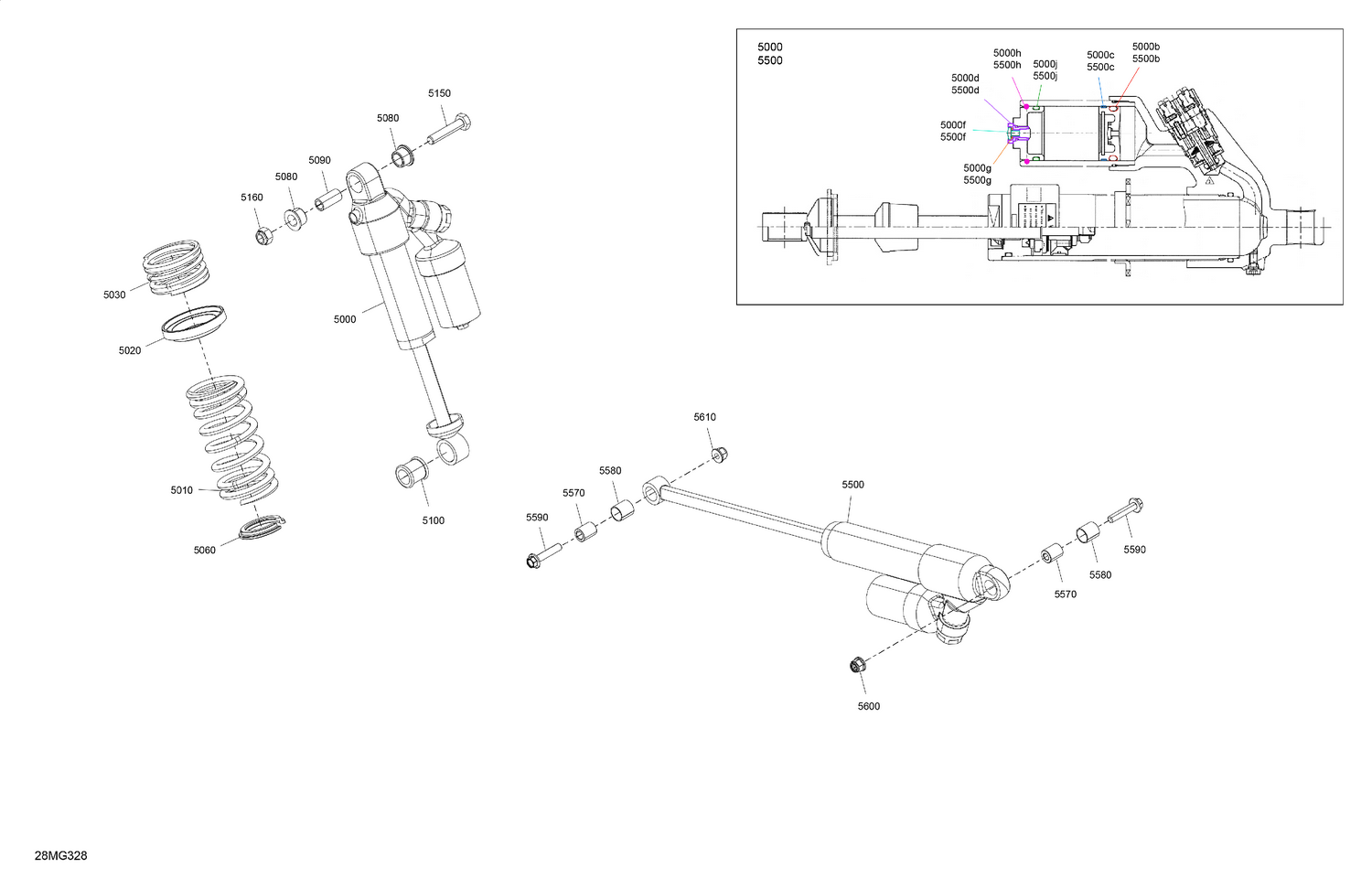

05- Suspension - Rear Shocks
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 5000b | 415093807 | O-Ring |
| 5000c | 415093806 | Piston Ring |
| 5000d | 505070398 | Air Valve |
| 5000f | 505070399 | Screw |
| 5000g | 505070400 | O-Ring |
| 5000h | 715900076 | Circlip - Call your local BRP dealership |
| 5000j | 415093804 | O-Ring |
| 5010 | 503193113 | Black, Spring - Call Your Local BRP Dealership |
| 5020 | 503192743 | Spring Spacer |
| 5030 | 503193479 | Black, Spring (52mm) Short |
| 5060 | 503194270 | Spring Stopper |
| 5080 | 503189117 | Urethane Bushing |
| 5090 | 503189282 | Bushing |
| 5100 | 503189271 | Bushing |
| 5150 | 207005044 | Hex. Screw M10 X 1.5 X 50 |
| 5160 | 233601466 | Elastic Locking Nut M10 |
| 5500b | 415093807 | O-Ring |
| 5500c | 415093806 | Piston Ring |
| 5500d | 505070398 | Air Valve |
| 5500f | 505070399 | Screw |
| 5500g | 505070400 | O-Ring |
| 5500h | 715900076 | Circlip - Call your local BRP dealership |
| 5500j | 415093804 | O-Ring |
| 5570 | 503196509 | Axle Shock Absorber |
| 5580 | 505072663 | Leg Cushion |
| 5590 | 207684056 | Hex Flange Screw M8 X 40 |
| 5600 | 233281466 | Elastic Flange Nut M8 |
