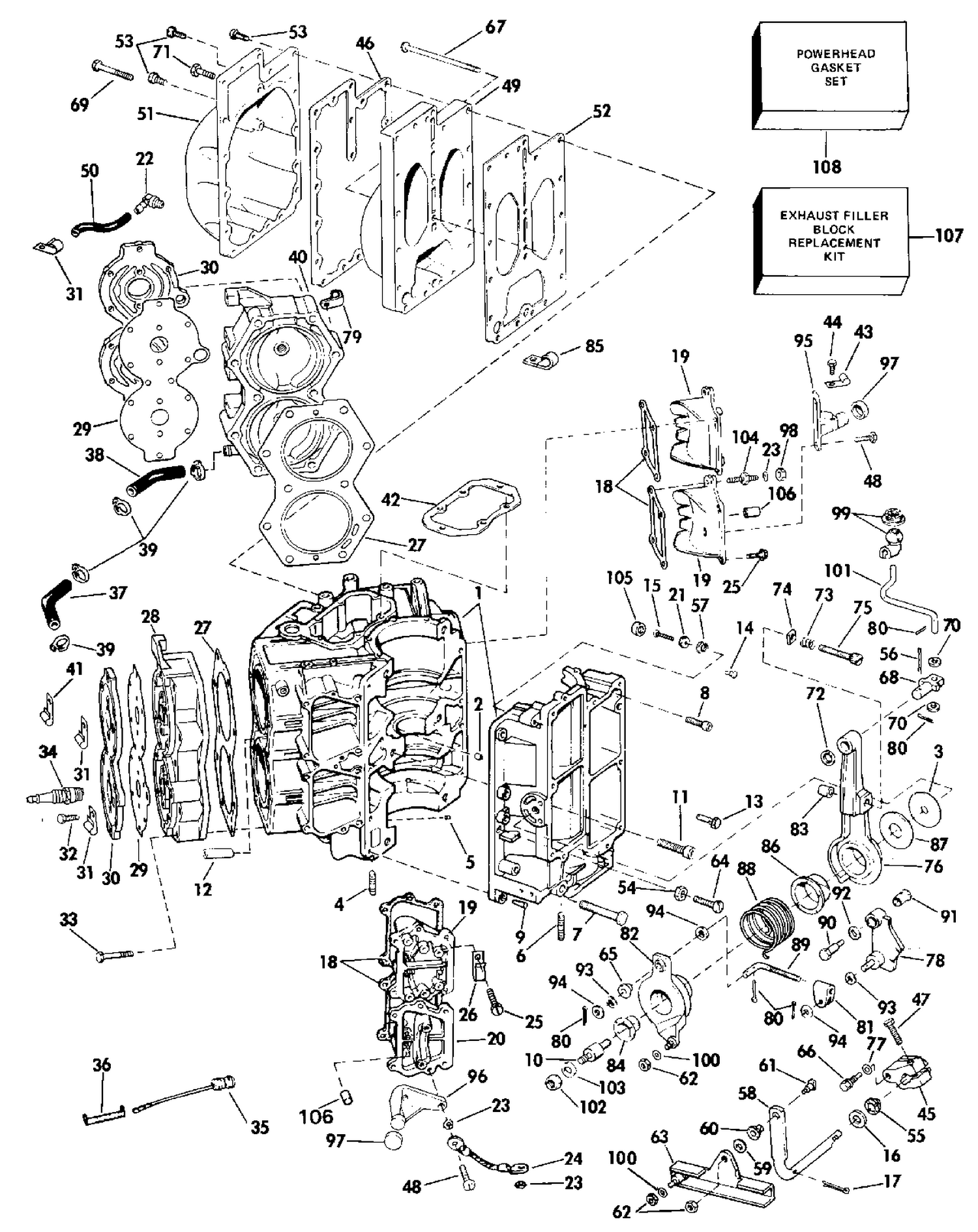

| Ref | Part Number | Description |
|---|
| 1 |
0431658 |
CYL & C'CASE ASSY., 115 models This part replaces 0397208. |
| 3 |
0318562 |
WASHER, Stud |
| 4 |
0321640 |
STUD |
| 5 |
0310507 |
PLUG |
| 8 |
0318907 |
SCREW, C'case to cyl top |
| 10 |
0322986 |
STUD, Throttle lever |
| 11 |
0319592 |
SCERW,Cyl.to c'case,center |
| 12 |
0322411 |
DEFLECTOR, Water pass |
| 13 |
0300646 |
VIS, ancrage |
| 14 |
0306778 |
ECREW,Exhaust cover,1-3/8"long |
| 15 |
0328722 |
SCREW, Spark adjust |
| 16 |
0202026 |
LOCK WASHER, Stud |
| 18 |
0307133 |
GASKET |
| 19 |
0323045 |
COVER, By-pass |
| 20 |
0310532 |
COVER BY-PASS |
| 24 |
0376349 |
FIL, masse |
| 25 |
0306049 |
SCREW |
| 26 |
0511514 |
CLAMP, Cable This part replaces 0317883. |
| 27 |
0318358 |
GASKET, Cyl. head |
| 28 |
0329539 |
CYLINDER HEAD, Star. |
| 29 |
0318335 |
COVER, Cylinder head |
| 30 |
0318333 |
COVER, Cylinder head |
| 31 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309322. |
| 32 |
0306409 |
VIS, collecteur vers carter-moteur |
| 33 |
0307267 |
SCREW |
| 34 |
0387239 |
SPARK PLUG, CH 1UL-77V, 140 |
| 35 |
0386686 |
SWITCH TEMP |
| 37 |
0340975 |
HOSE, Cylinder head, stbd. This part replaces 0321724. |
| 38 |
0340976 |
HOSE, Cylinder head, port This part replaces 0321723. |
| 39 |
0324825 |
CLAMP, Cylinder head hose |
| 40 |
0329538 |
CYLINDER HEAD, Port |
| 41 |
0330151 |
CLAMP, Harness to oil tank boss |
| 42 |
0322858 |
GASKET |
| 44 |
0310379 |
SCREW |
| 45 |
0326642 |
LEVER, Shift rod |
| 46 |
0317955 |
GASKET, Exh. cover |
| 47 |
0908159 |
SCREW, Bearing clamp This part replaces 0328728. |
| 49 |
0323468 |
EXHAUST MANIFOLD |
| 50 |
0327721 |
HOSE, Elbow to tee |
| 51 |
0390015 |
COVER, Exh. manifold |
| 52 |
0323469 |
GASKET, Exh. manifold to cyl. 140 hp |
| 53 |
0308728 |
SCREW |
| 53 |
0309905 |
SCEW,Cylinder head |
| 55 |
0312708 |
BUSHING |
| 56 |
0330145 |
COTTER PIN |
| 58 |
0323089 |
SHIFT LEVER |
| 59 |
0329241 |
RONDELLE This part replaces 0305981. |
| 61 |
0323264 |
PIN |
| 63 |
0395475 |
LINK & PIN ASSY |
| 66 |
0327506 |
PIN, Lever to rod |
| 67 |
0317972 |
ACREW,Exh manf to cyl.,4-1/4" long |
| 68 |
0315104 |
RETAINER, #3 ing. lead |
| 69 |
0323626 |
SCREW |
| 71 |
0303459 |
ECREW,Exhaust cover,1-1/2"long |
| 72 |
0330179 |
WASHER |
| 75 |
0328699 |
LEVER, Spark control |
| 76 |
0318561 |
LEVER, Spark adjust |
| 78 |
0395310 |
THROTTLE CAM ASSY. |
| 81 |
0310524 |
YOKE |
| 82 |
0391936 |
LEVER, Throttle |
| 83 |
0318660 |
BUMPER, Screw, throttle stop |
| 84 |
0315081 |
BAGUE, arbre de commande de sens de marche vers bloc-cylindres |
| 86 |
0318560 |
BUSHING, Spark lever |
| 87 |
0322987 |
WASHER, Throttle lever |
| 88 |
0314094 |
LINK, Throttle lever to cam |
| 89 |
0330159 |
ROD, Throttle lever to cam |
| 90 |
0314136 |
VIS, came de papillon |
| 92 |
0328733 |
RONDELLE ÉLASTIQUE, levier de sens de marche |
| 93 |
0328734 |
BOW WASHER |
| 95 |
0319217 |
PIN,Clevis to shift lock |
| 96 |
0319218 |
SUPPORT BNRACE,Stbd. |
| 97 |
0313581 |
BUMBER, Mount screw |
| 99 |
0395448 |
BALL & SOCKET ASSY |
| 100 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz |
| 101 |
0330160 |
ROD, Spark advance |
| 105 |
0314416 |
BUMBER, Advance screw |
| 107 |
0392000 |
EXHAUST FILLER BLOCK REPLACEMENT KIT |
