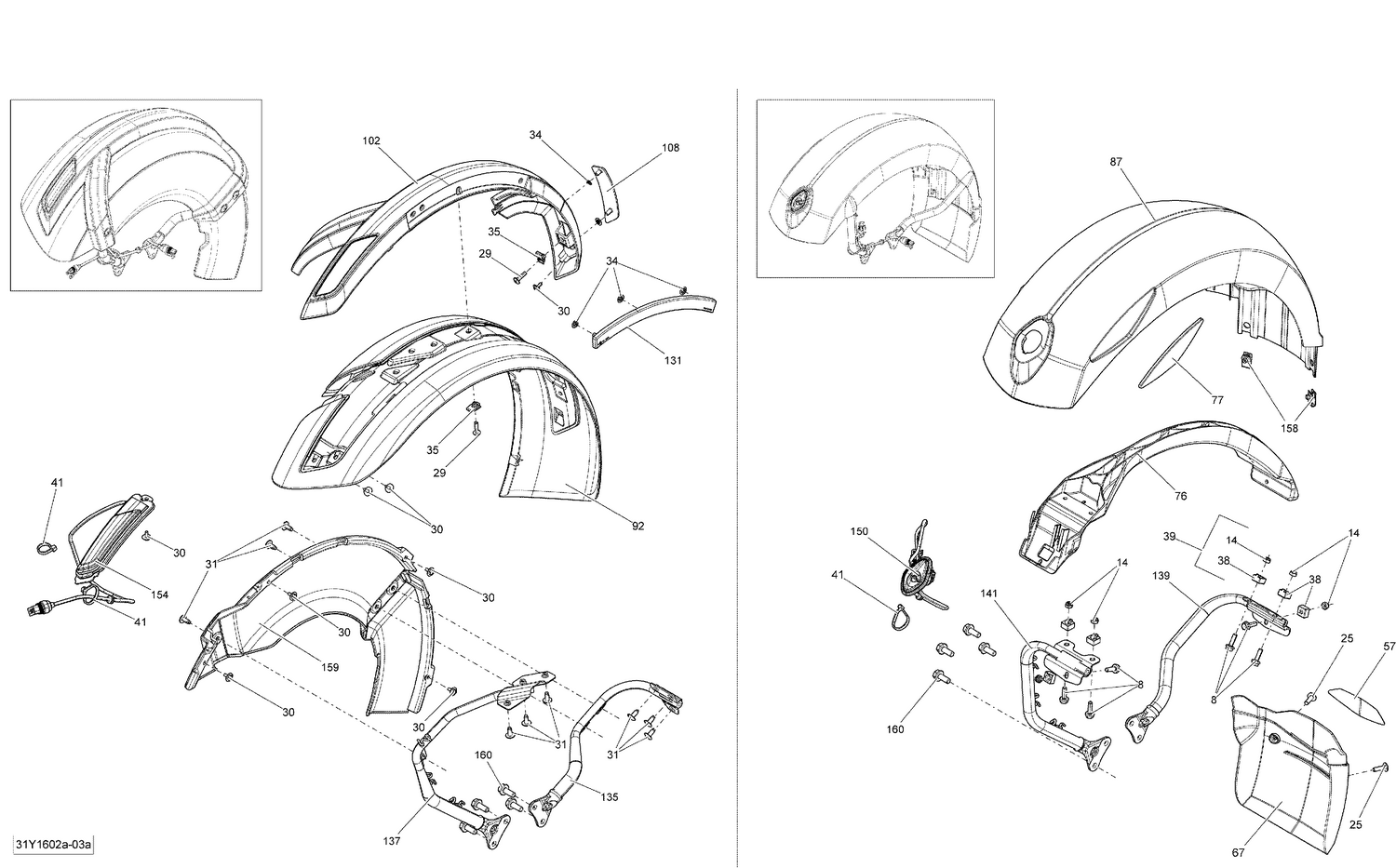

| Ref | Part Number | Description |
|---|
| 8 |
207662054 |
Hex. Flange Screw M6 X 20 |
| 14 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 25 |
250000446 |
Torx Screw M6 X 20, Scotch Grip |
| 29 |
250000724 |
Torx Screw M5 X 20 |
| 30 |
250000805 |
Plastite Screw M4 X 10 |
| 31 |
250000851 |
Torx Screw M6 X 14 |
| 34 |
250100163 |
Pressure Nut |
| 35 |
250100176 |
Panel Nut M5 X 0.8 |
| 38 |
269500252 |
M6 Nut Housing Ass'y |
| 39 |
269500725 |
M6 Nut Housing Ass'y |
| 41 |
293750002 |
Tie Wrap 142 mm |
| 57 |
704901160 |
Reflective Stripe |
| 67 |
705001767 |
LH Mudguard |
| 67 |
705001768 |
RH Mudguard |
| 76 |
705002389 |
Central Front Fender Support |
| 77 |
705002423 |
Amber, Lateral Reflector |
| 87 |
705003413 |
Bare, LH Front Fender This part replaces 705007994. |
| 87 |
705003414 |
Bare, RH Front Fender This part replaces 705007996. |
| 92 |
705004801 |
Bare, LH Front Fender This part replaces 705008027. |
| 92 |
705006909 |
Metallic Black Front Fender RH This part replaces 705008026. |
| 102 |
705006912 |
Carbone Black Front Fender Moulding LH This part replaces 705008010. |
| 102 |
705006913 |
Carbone Black Front Fender Moulding RH This part replaces 705008011. |
| 131 |
705008661 |
Yellow LH Reflector |
| 131 |
705008662 |
Yellow RH Reflector |
| 135 |
219800398 |
RH Fender Rear Support Kit This part replaces 705009547. |
| 135 |
219800414 |
LH Support This part replaces 705009546. |
| 137 |
219800396 |
RH Fender Front Support Kit This part replaces 705010099. |
| 137 |
219800497 |
LH Fender Front Support Kit This part replaces 705010098. |
| 139 |
705010100 |
LH PAINTED FENDER REAR SUPPORT - Call your local BRP dealership |
| 139 |
705010101 |
RH PAINTED FENDER REAR SUPPORT - Call your local BRP dealership |
| 141 |
705010102 |
LH Painted Fender Front Support |
| 141 |
705010103 |
RH Painted Fender Front Support |
| 150 |
710003295 |
Position Light |
| 154 |
710004032 |
LH Position Light |
| 154 |
710004033 |
RH Position Light |
| 158 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
| 159 |
705007616 |
LH Inner Fender |
| 159 |
705007617 |
RH Inner Fender |
