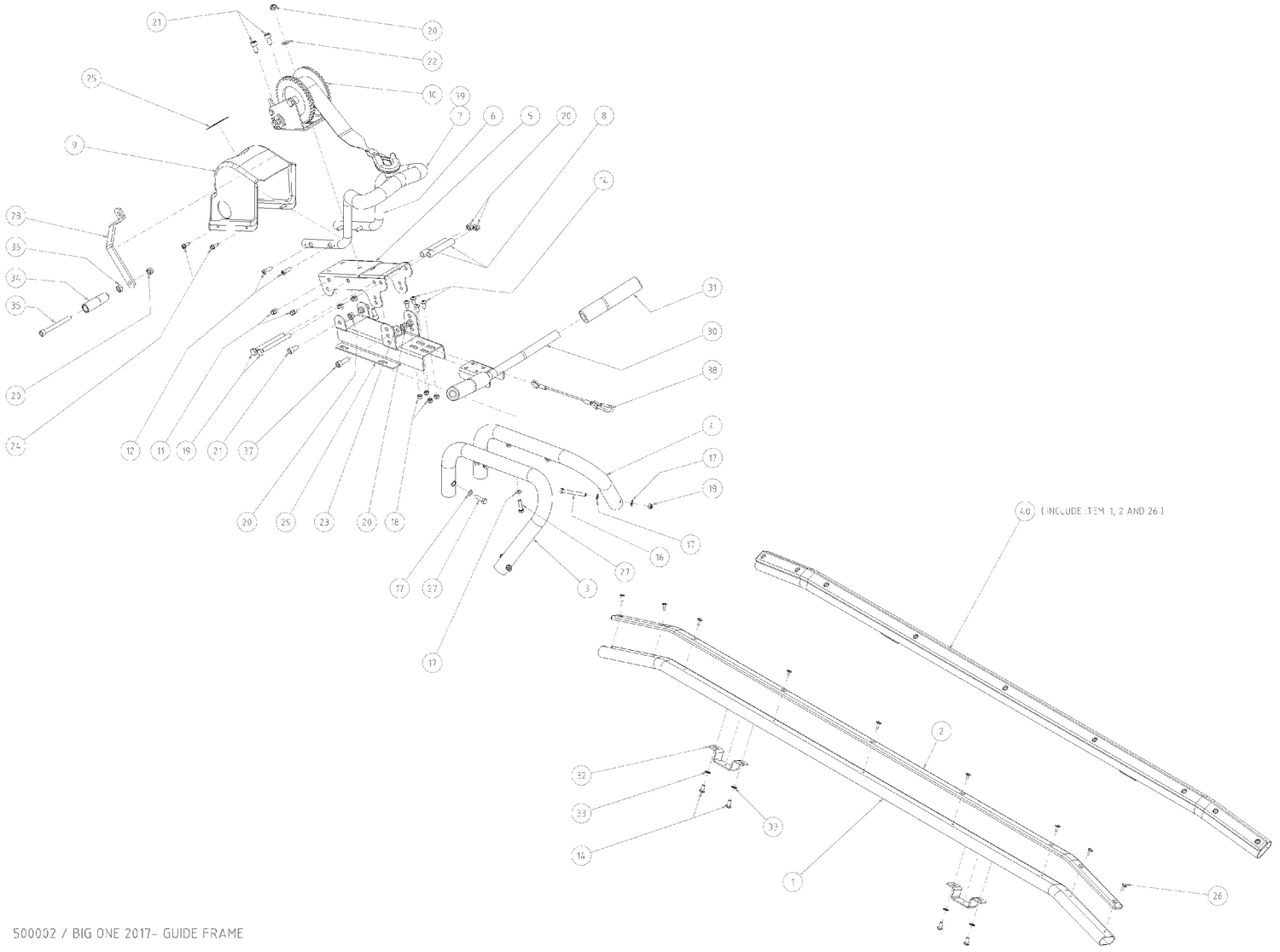

Guide Frame — Parts Catalog

Ref	Part Number	Description
1	619590363	Runner Big One
2	619590364	Boat Slide Big One
3	619590447	Outer tube front Big One [left]
4	619590448	Outer tube front Big One [right]
5	619590365	Winch Bracket
6	619590435	Front guard
7	619590475	Softdock Front Guard
8	619590366	Spacer
9	619590367	Winsch Cover
10	619590368	Winch
11	619590511	Threaded Inserts Steel Open M8
11	619590529	Threaded Inserts Steel Open Hex. M8
12	619590499	Torx Screw M8 x 25
16	619590489	Hex. Cap Screw M8 x 65
17	619590503	Washer Ø8,4 / 16 / 1,6
19	619590372	Hex. Cap Screw M10 x 110
20	619590526	Nut M10 FZB
21	619590524	Allen screw M10 x 20 FZB
22	619590375	Washer Ø11 / 22 / 2
23	619590548	Washer Ø11,0 / 28 / 2,0
24	619590428	Drill screw 6,3 x 19 FZB
25	516008739	BRP Logo 68mm This part replaces 516006888.
26	619590376	Pop rivet 4,8 x 16 [Black] Big head
27	619590486	Hex. Cap Screw M8 x 30
28	619590562	Winch Handle
29	619590378	Bracket
30	619590379	Front Runner Big One FZV
31	619590380	Softdock Big One
32	619590449	Bracket
33	619590507	Lockingwasher Ø8,4
34	619590377	Handle
35	619590525	Allen screw M10 x 100 FZB
37	619590544	Allen screw M10 x 30 FZB
