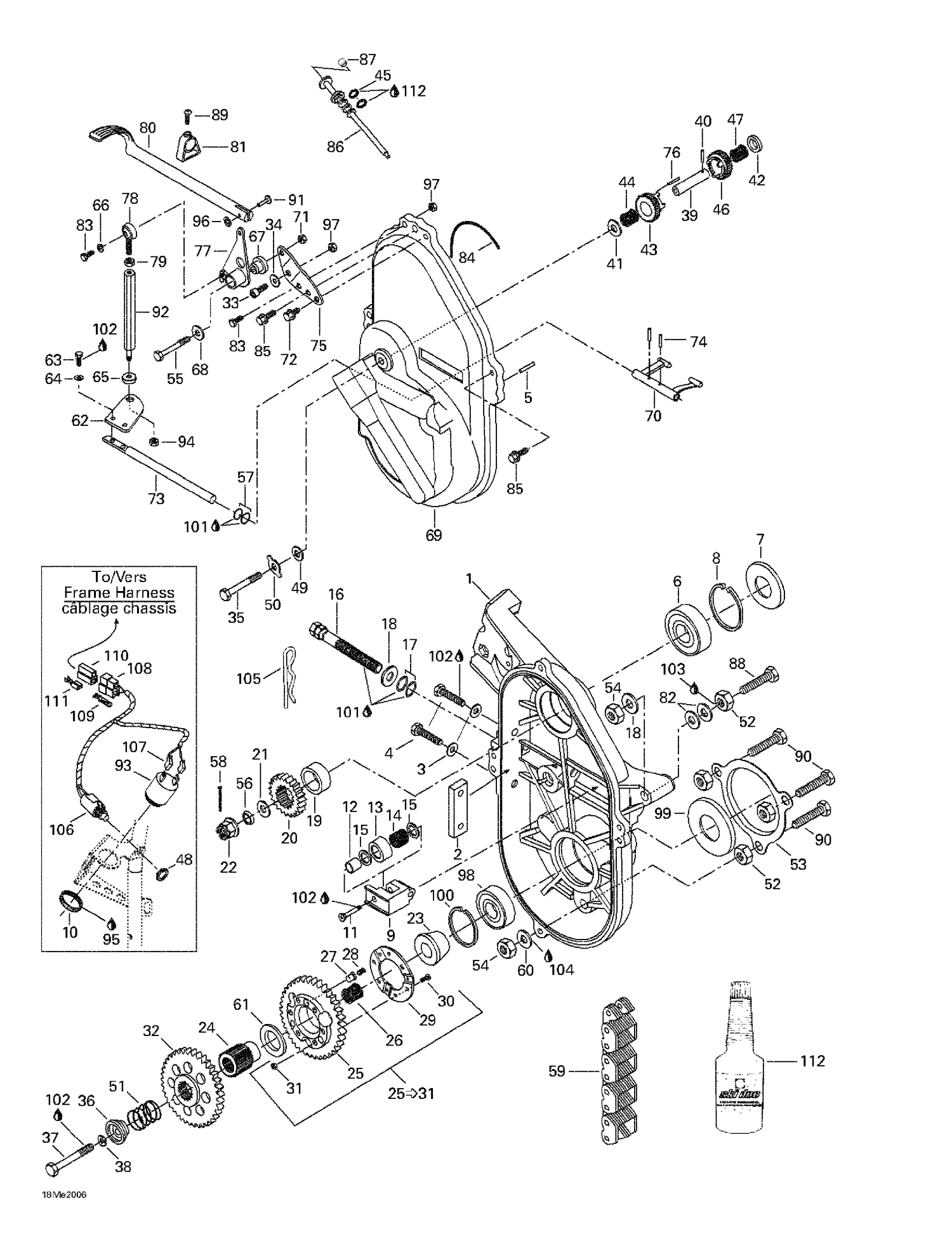

05- Transmission
Parts (106)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 504151777 | Chaincase |
| 2 | 504082400 | Chain Slider |
| 3 | 732900040 | Copper Washer |
| 4 | 207161644 | Hex. Screw M6 X 16 |
| 5 | 732620001 | CYLINDER PIN - Call your local BRP dealership |
| 6 | 293350115 | Ball Bearing This part replaces 405404400. |
| 7 | 414882800 | OIL SEAL - Call your local BRP dealership |
| 8 | 371901700 | CIRCLIP - Call your local BRP dealership |
| 9 | 504081000 | MACHINED TENSIONER - Call your local BRP dealership |
| 10 | 414805101 | PLASTIC NUT - Call your local BRP dealership |
| 11 | 732601144 | SCREW - Call your local BRP dealership |
| 12 | 504080200 | SPACER - Call your local BRP dealership |
| 13 | 414531300 | ROLLER - Call your local BRP dealership |
| 14 | 405403000 | NEEDLE BEARING - Call your local BRP dealership |
| 15 | 504080300 | WASHER - Call your local BRP dealership |
| 16 | 732601311 | ADJUSTING SCREW - Call your local BRP dealership |
| 17 | 414484400 | O-Ring |
| 18 | 234001410 | Flat Washer 10 mm |
| 19 | 504093400 | Shim |
| 20 | 504078400 | Sprocket Narrow (23 Tooth) |
| 21 | 504087100 | Washer |
| 22 | 232210414 | HEX. CASTELLATED NUT M16 - Call your local BRP dealership |
| 23 | 504076300 | RETAINING RING - Call your local BRP dealership |
| 24 | 504097700 | Coupling Axle |
| 25 | 504088200 | SPROCKET (44 TEETH) - Call your local BRP dealership |
| 26 | 414772600 | NEEDLE BEARING - Call your local BRP dealership |
| 27 | 504076800 | DRIVE PIN - Call your local BRP dealership |
| 28 | 414772700 | SPRING - Call your local BRP dealership |
| 29 | 504076100 | RETAINER RING - Call your local BRP dealership |
| 30 | 207152044 | Hex. Screw M5 X 20 |
| 31 | 233551416 | NUT-LOCK SPRING DIN.980V - Call your local BRP dealership |
| 32 | 504096800 | SLIDING GEAR, 56 TEETH - Call your local BRP dealership |
| 33 | 205061644 | SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership |
| 34 | 234061410 | Flat Washer 6 mm |
| 35 | 207089044 | Hex. Screw M8 X 90 |
| 36 | 504099100 | Cap |
| 37 | 207005044 | Hex. Screw M10 X 1.5 X 50 |
| 38 | 234100602 | WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership |
| 39 | 504083100 | Reverse Shaft |
| 40 | 732804003 | Spring Pin |
| 41 | 504077300 | Spacer |
| 42 | 504078700 | Ring |
| 44 | 414805000 | NEEDLE BEARING - Call your local BRP dealership |
| 45 | 414969400 | O-RING - Call your local BRP dealership |
| 47 | 414773100 | NEEDLE BEARING - Call your local BRP dealership |
| 48 | 732610075 | Nut |
| 49 | 504082900 | Washer |
| 50 | 504087700 | TAB LOCK - Call your local BRP dealership |
| 51 | 504099200 | Release Spring |
| 52 | 504083800 | Spacer |
| 53 | 501022100 | Protector |
| 54 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 55 | 207084544 | Hex. Screw M8 X 45 |
| 56 | 417000900 | Spring Washer |
| 57 | 414773200 | O-RING - Call your local BRP dealership |
| 58 | 371801300 | Cotter Pin |
| 60 | 234001460 | Copper Flat Washer 10 mm |
| 61 | 504094300 | WASHER - Call your local BRP dealership |
| 62 | 504094602 | Plate |
| 63 | 207151444 | Hex. Screw M5 X 14 |
| 64 | 234151401 | Lock Washer 5 mm |
| 65 | 570045700 | Rubber Washer |
| 66 | 234161471 | Lock Washer M6, Black |
| 67 | 414927600 | Flanged Bushing |
| 68 | 224081201 | FLAT WASHER - Call your local BRP dealership |
| 69 | 504098500 | Cover Chaincase |
| 70 | 504075800 | Fork |
| 71 | 232581414 | Hex. Elastic Stop Nut M8 |
| 72 | 210261650 | Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 73 | 504142900 | Shaft |
| 74 | 414772500 | SPRING PIN - Call your local BRP dealership |
| 75 | 504095000 | Support-Pivot |
| 76 | 570048600 | Alignement Rod |
| 77 | 504094900 | Weld Plate Pivoting |
| 78 | 414773400 | RH BALL-JOINT - Call your local BRP dealership |
| 79 | 232061414 | Hex. Nut M6 |
| 80 | 570044600 | GRIP - Call your local BRP dealership |
| 81 | 572071100 | Stopper-Switch |
| 82 | 504073700 | WASHER - Call your local BRP dealership |
| 83 | 207162044 | Hex. Screw M6 X 20 |
| 84 | 414362300 | O-Ring |
| 85 | 210263050 | Hex. Flange Screw M6 X 30 This part replaces 210263080. |
| 87 | 206540490 | SCREW-SET SOCKET DIN.916 - Call your local BRP dealership |
| 88 | 207107044 | Hex. Screw M10 x 70 |
| 89 | 364901600 | Phillips Screw 8x1/2" |
| 90 | 207104544 | Hex. Screw M10 x 45 |
| 91 | 390008900 | Rivet |
| 92 | 504094700 | Tie Rod (Bar) |
| 93 | 414805102 | DC Horn |
| 94 | 232551414 | Elastic Stop Nut M5 |
| 95 | 296000309 | Silicone Sealant 51388, 300 ml |
| 96 | 389804300 | Push Nut |
| 97 | 232561414 | Elastic Stop Nut M6 |
| 98 | 405403900 | Ball Bearing 6206 |
| 99 | 504151925 | OIL SEAL - Call your local BRP dealership This part replaces 581056500. |
| 100 | 414784900 | Circlip (Int-rior) |
| 101 | 219700417 | SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 102 | 293800005 | Loctite 271, 10 ml |
| 103 | 293800060 | Loctite 243, 10 ml |
| 104 | 219704462 | ADHESIVE LOCTITE 515 50ML - Call your local BRP dealership |
| 105 | 414575600 | Hair Pin |
| 107 | 409010300 | Female Terminal |
| 108 | 409204500 | MALE HOUSING - Call your local BRP dealership |
| 109 | 409210000 | MALE TERMINAL - Call your local BRP dealership This part replaces 409206100. |
| 110 | 409204600 | FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership |
| 111 | 561503100 | FEMALE TERMINAL - Call your local BRP dealership |
