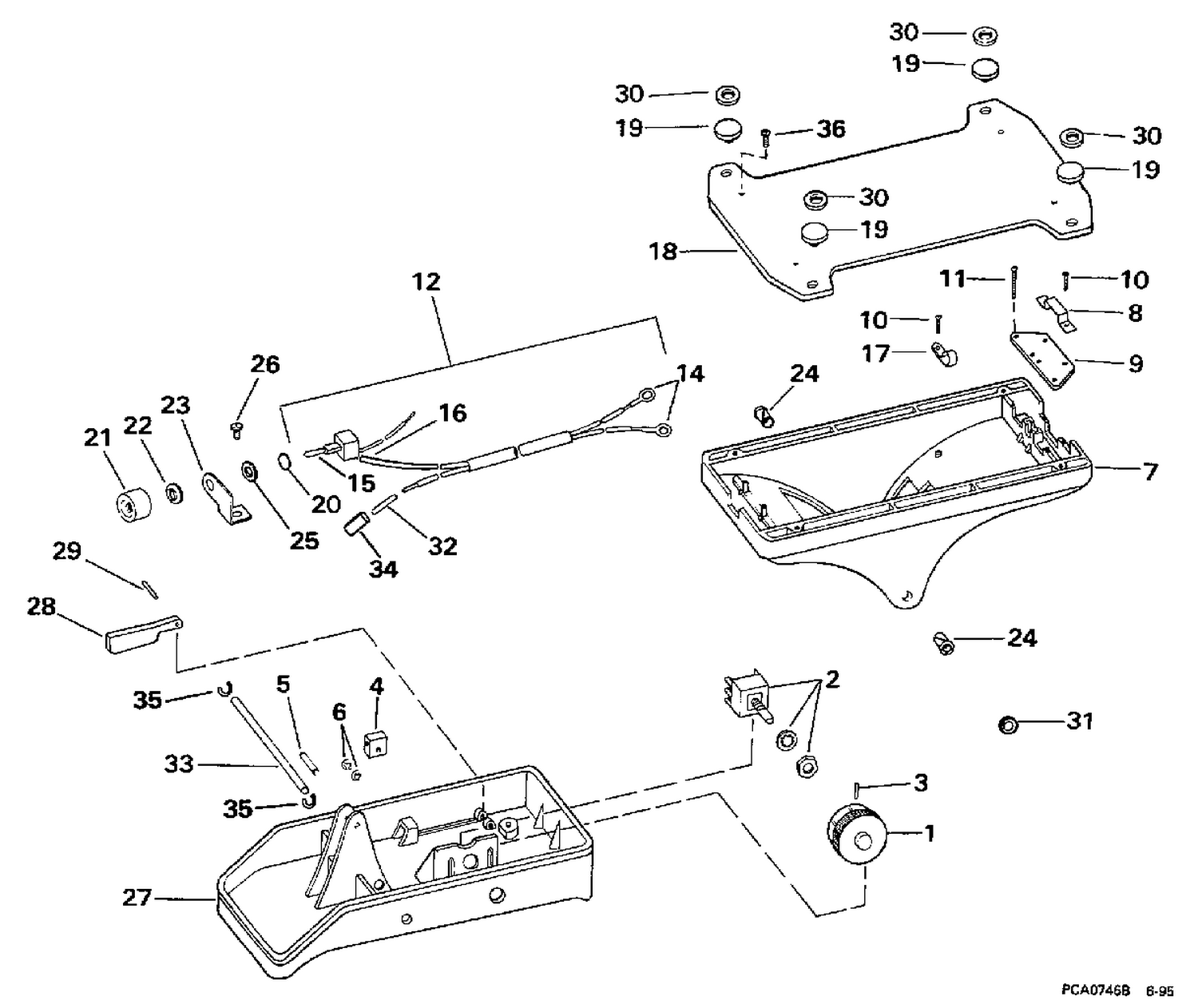

| Ref | Part Number | Description |
|---|
| 1 |
0115832 |
WHEEL, Speed control |
| 2 |
0115833 |
ROTARY SWITCH ASSY. (Incl. nut & washer) |
| 3 |
0115834 |
SET SCREW |
| 4 |
0115836 |
PIVOT BLOCK, Cable to pedal |
| 5 |
0115837 |
PIVOT PIN, Cable to pedal |
| 6 |
0115838 |
E-RING, Pivot pin |
| 7 |
0115839 |
BASE, Foot control |
| 8 |
0115955 |
CLAMP, Battery cable |
| 9 |
0115842 |
CLAMP, Steering cable |
| 10 |
0115843 |
SCREW |
| 11 |
0115850 |
SCREW |
| 12 |
0116015 |
BATTERY CABLE AND ON-OFF SWITCH ASSY. |
| 14 |
0115852 |
RING TERMINAL |
| 15 |
0116020 |
ON-OFF SWITCH & LEAD |
| 17 |
0115846 |
CLAMP, Cable |
| 18 |
0115957 |
BASE PLATE |
| 19 |
0115958 |
STAND |
| 21 |
0324609 |
COVER, On/off switch |
| 22 |
0324648 |
NUT, Switch to bracket |
| 23 |
0332339 |
BRACKET, Switch to pedal |
| 24 |
0115845 |
PEDAL BUSHING |
| 26 |
0115933 |
SCREW, On/off switch mounting |
| 27 |
0115940 |
PEDAL ASSY. |
| 28 |
0319519 |
LEVER ON/OFF SWITCH |
| 29 |
0319527 |
ROLL PIN, Lever |
| 30 |
0115960 |
SPACER |
| 31 |
0303107 |
RONDELLE NYLON, barre |
| 32 |
0116023 |
SPLICE W/INSULATION #10 |
| 33 |
0116044 |
HINGE PIN, Pedal to base |
| 35 |
0116045 |
E-RING, Pedal to base |
