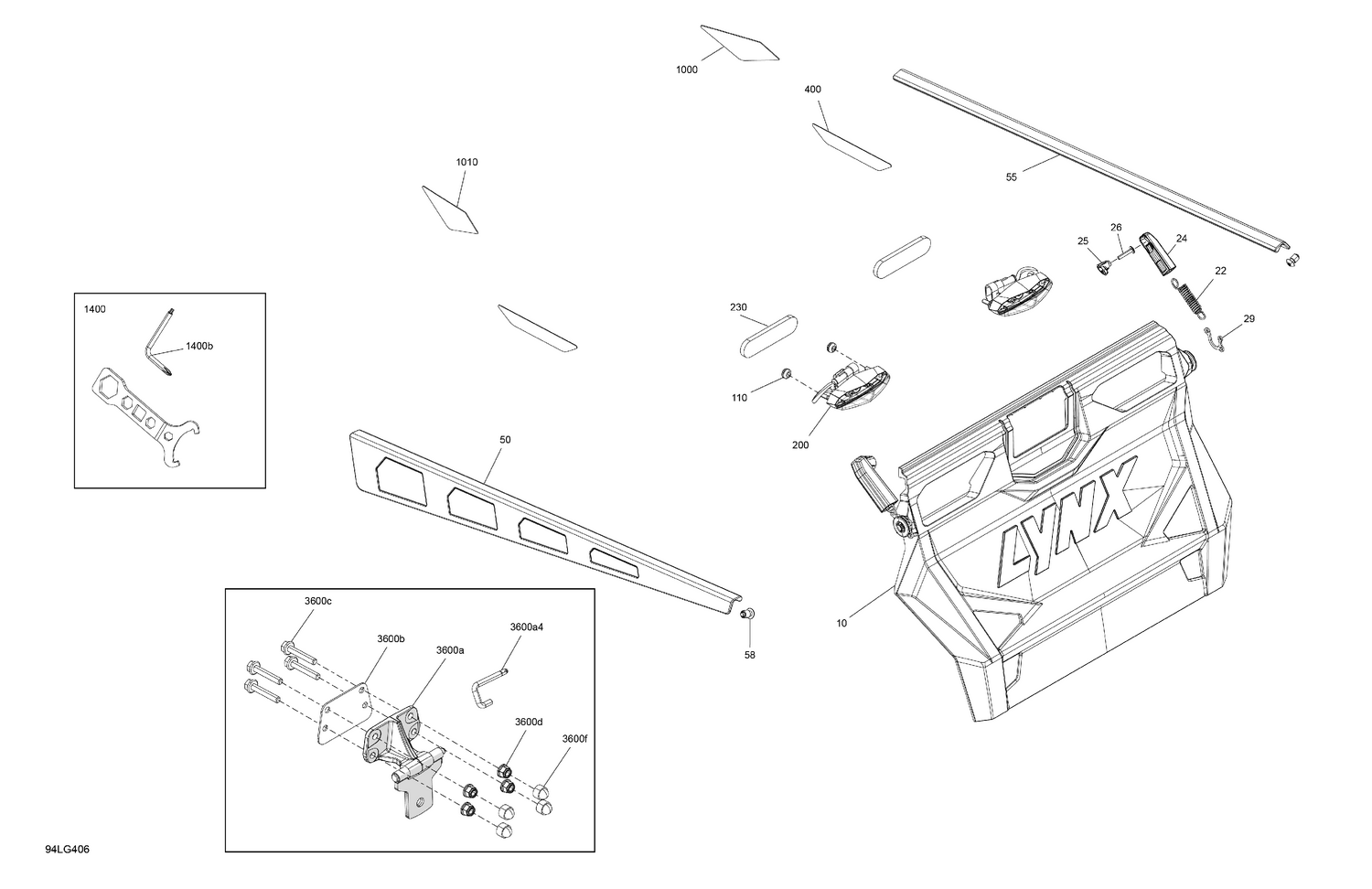

09- Miscellaneous - Utilities
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 520003340 | Snow Guard |
| 22 | 520003618 | Spring |
| 24 | 520003619 | Spring Cover |
| 25 | 520003456 | Spring Support |
| 26 | 250000843 | Torx Truss Screw M6 X 30 |
| 29 | 518337205 | HOOK, SHORT |
| 50 | 520000694 | LH Protector |
| 55 | 520000693 | RH Protector |
| 58 | 293150163 | Rivet Hucklok |
| 110 | 293720101 | Grommet |
| 200 | 520003188 | Tail Light |
| 230 | 705015551 | Red Reflector |
| 400 | 520003529 | Red, LH/RH Rear Reflector |
| 1000 | 520002343 | RH Front Reflector |
| 1010 | 520002344 | LH Front Reflector |
| 1400b | 520001815 | Key |
| 3600a4 | 41031 | Saksisokka 2,5x16 DIN 94-S |
| 3600b | 511001560 | RH Chassis Reinforcement |
| 3600c | 207684544 | Hex. Flange Screw M8 X 45 |
| 3600d | 233281414 | Hex. Flange Elastic Nut M8 |
