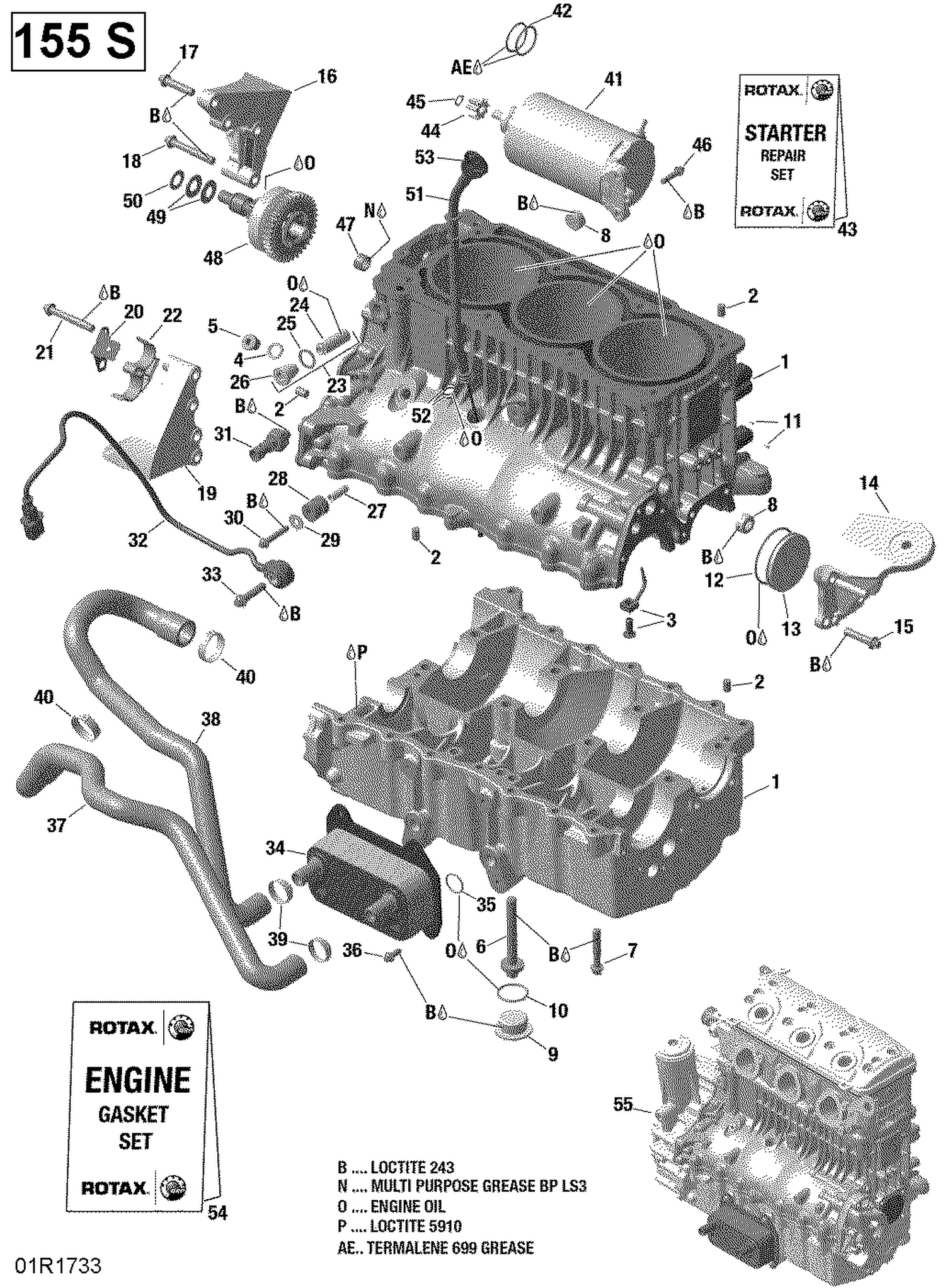

01- Engine Block - 155 Model With Suspension
Parts (50)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420632010 | Center Pin 8 X 12 |
| 3 | 420956827 | Oil Spray Nozzle |
| 4 | 420250016 | Aluminum Sealing Ring This part replaces 420250015. |
| 5 | 420841923 | Plug Screw M12 |
| 6 | 420641120 | Torx Flange Screw M10 X 82 |
| 7 | 420641208 | Hex. Flange Screw M8 X 45 |
| 8 | 420641317 | Plug Screw M20 X 1.5 |
| 10 | 420631300 | O-Ring DIN 3771-28X2.6n NBR70 Cylinder Block Plug Screws |
| 11 | 420249073 | Grooved Pin |
| 12 | 420430411 | O-Ring 57-3 Cylinder Bloc Plug Cover This part replaces 420430405. |
| 13 | 420660110 | Plug Cover |
| 14 | 420811792 | FRONT ENGINE BRACKET - Call your local BRP dealership |
| 15 | 420641188 | Torx Flange Screw M8 X 35 |
| 16 | 420811788 | Engine Bracket PTO, Exhaust This part replaces 420811787. |
| 17 | 420641188 | Torx Flange Screw M8 X 35 |
| 18 | 420641213 | Torx Flange Screw M8 X 55 |
| 19 | 420811784 | Engine Bracket PTO, Exhaust This part replaces 420811782. |
| 20 | 420851740 | Retaining Plate |
| 21 | 420641213 | Torx Flange Screw M8 X 55 |
| 22 | 420660293 | HOSE BRACKET This part replaces 420660290. |
| 24 | Not | Available As Spare Part - Chain Tensioner |
| 25 | Not | Available As Spare Part - Gasket Ring |
| 26 | Not | Available As Spare Part - |
| 27 | 420847971 | Spacer |
| 28 | 420660090 | Rubber Bracket |
| 29 | 420827968 | Flat Washer M6 |
| 30 | 420641258 | Torx Flange Screw M6 X 35 |
| 31 | 420256919 | Oil Pressure Switch This part replaces 420256916. |
| 32 | 420664031 | Noise Sensor |
| 33 | 420641188 | Torx Flange Screw M8 X 35 |
| 34 | 420888877 | Oil Radiator This part replaces 420888852. |
| 35 | 420250057 | O-Ring This part replaces 420250055. |
| 36 | 420641048 | Torx Flange Screw M6 X 16 |
| 37 | 420922834 | Formed Hose This part replaces 420922798. |
| 38 | 420922832 | Formed Hose This part replaces 420922792. |
| 39 | 420851661 | Oetiker Clamp |
| 40 | 420851673 | Gear Clamp |
| 42 | 420631310 | O-Ring |
| 43 | 420881340 | Carbon Brush Set |
| 44 | 420834522 | Starter Gear, 9 Teeth |
| 45 | 420845601 | Retaining Ring This part replaces 420845600. |
| 46 | 420641238 | Torx Flange Screw M6 X 25 |
| 47 | 420232482 | Needle Bushing |
| 48 | 420890637 | Bendix Starter |
| 49 | 420238300 | Spring Washer |
| 50 | 420827261 | Thrust Washer |
| 52 | 420950810 | O-Ring |
| 53 | 420956933 | Oil Level Gauge This part replaces 420956932. |
| 54 | 420889773 | Engine Gasket Set |
| 55 | 420150322 | ENGINE LONG BLOCK, 1503 NA ETC - Call your local BRP dealership |
