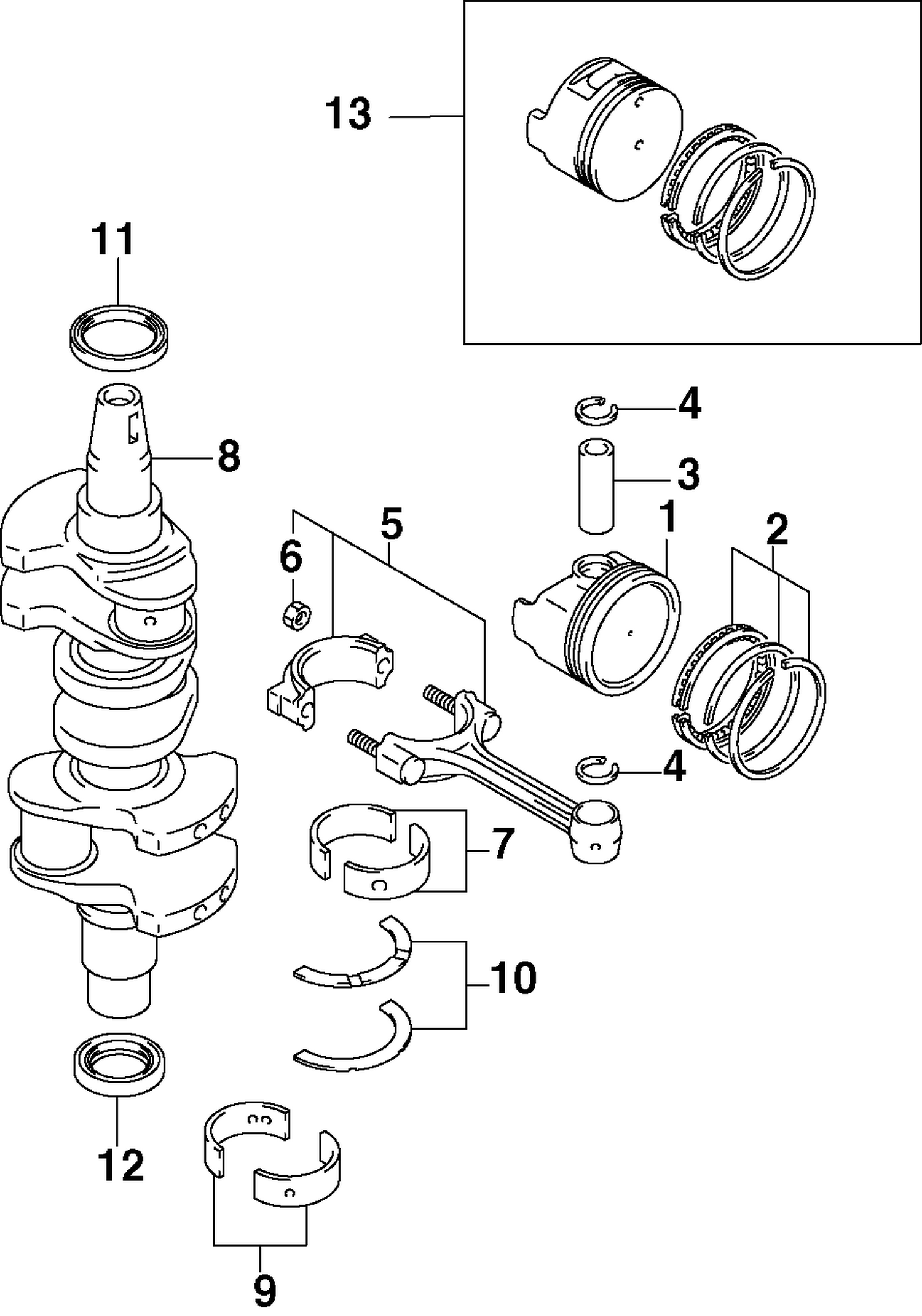

CRANKSHAFT & PISTONS
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5032231 | PISTON |
| 2 | 5032826 | RING SET, PISTON |
| 3 | 5032827 | PIN, PISTON |
| 4 | 5031277 | CLIP |
| 5 | 5031317 | CONNECTING ROD ASSY |
| 7 | 5031318 | BEARING, Rod This part replaces 5032828. |
| 9 | 5031321 | BEARING SET, Crankshaft - Green |
| 9 | 5031322 | BEARING SET, Crankshaft - Black |
| 9 | 5031323 | BEARING SET, Crankshaft - No paint |
| 9 | 5031324 | BEARING SET, Crankshaft - Yellow |
| 9 | 5031325 | BEARING SET, Crankshaft - Blue |
| 10 | 5031320 | BEARING SET, THRUST |
| 11 | 5031268 | SEAL, OIL - Upper |
| 12 | 5031707 | SEAL, CRANKSHAFT UNDER OIL |
